DEMO - GRAS 146AE 1/2"CCP Free-field Microphone Set
12.840,00 incl. VAT
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
GRAS 146AE is a rugged microphone specifically developed for harsh environments like Automotive testing. It combines the high precision and stability of a laboratory microphone with an unprecedented level of ruggedness, i.e. ability to work properly under adverse conditions such as shock, high temperatures, moisture, water spray, oil mists, and dust.
Discover the possibilities
More information
Description

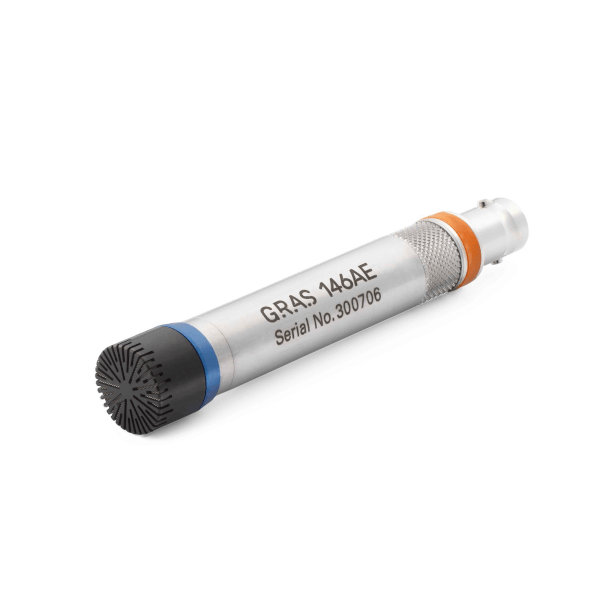

GRAS 146AE 1/2" CCP Free-field Microphone Set
It´s all about reliable data!
Valid data and efficient test methods have always been important in acoustic noise, vibration and harshness (NVH) testing, but the need for better test methods and more reliable data has never been greater. New types of cars – electric, hybrid, autonomous – pose new challenges and call for new, informed and clever trade-off decisions. Add to this, the constant push for shorter time to market and more efficient NVH test methods - more urgently than ever before.
Learn more about acoustic sensors for NVH testing.
Automotive noise testing can be extremely demanding, so you need a robust solution to meet your expectations. This is why GRAS has developed the 146AE - a measurement microphone specially designed to perform under realistic test conditions. Setting up multichannel measurement systems many times a day exposes your microphones to shock and drop. It is important that your test systems are protected against vibrations, extreme temperatures, high humidity, dust and even oil mist.
The focus has been on ensuring that the 146AE performs in real-life conditions. Ideal for engine compartment measurements, transmissions, exhaust and brake noise tests. These conditionas are all verified during our Highly Accelerated Lifetime Test (HALT). Watch the video about HALT test for GRAS 146AE here.
To enable efficient testing you also have to trust that your microphones are ready and working when you roll a vehicle into the test chamber – and confident that your data is accurate when you roll it out again. Retesting or rescheduling is a costly option.
Our answer is the 146AE - the measurement microphone set that is so rugged and well protected that it can be trusted as your standard microphone for the broadest range of automotive noise, vibration and harshness (NVH) measurements - all without compromising measurement quality.
The new standard NVH microphone
The 146AE is a rugged free-field microphone set for all acoustic applications where the microphone can be pointed directly at the sound source.
Flexible to meet your many measurement needs
Using different microphones for various measurement points can result in inconsistent data and complex test setups. With the 146AE you can use the same microphone at high temperatures, in high humidity or under dusty conditions (free-field as well as randomincidence). This optimizes efficiency and saves you time setting up and evaluating your entire test setup.
High precision ensures valid data in challenging measurement positions
The consequences of inaccurate or incorrect data can be disastrous, especially, if identified late in your test sequence. The unmatched stability of the 146AE, the unique power-on feature as well as on-line calibration data mean that you can trust the accuracy of data from all your measurement positions.
Rugged design makes it ideal for all NVH test conditions
The 146AE is designed for real-life use. This includes conditions where the microphone is exposed to high temperatures, water and dust as well as daily handling with the risk of vibrations, drops and other kinds of shocks.
The microphone is ideal for the test track as well as the dynamometer and is not affected by condensation or other typical problems related to testing in changing weather conditions or when moving vehicles between different facilities. Whether your challenge is brake noise, powertrain noise, exhaust noise, buzz, squeak and rattle noise, vehicle interior noise, road noise or pass-by noise, the 146AE is the solution.
Low cost of ownership
Its extended lifetime ensures low cost of ownership and improves overall performance.
WATCH VIDEO
Explore the benefits
Shock-absorbing Design
The innovative design is prepared for daily use in rough testing conditions. The occasional drop or shock in the dynamometer, on proving grounds or on public roads does not affect the performance of the microphone, which always delivers reliable data.
Waterproof
Can safely be used in wet and splashy conditions. The microphone preamplifier housing is certified watertight according to IP67.
Extreme Temperature Performance
Optimized for extreme temperatures - from -40 to 125 ºC (-40 to 257 ºF) without impacting sensitivity. It is the most temperature-stable CCP microphone on the market.
Random-incidence Corrector
With the RA0357 Random-incidence Corrector, it is possible to quickly change the response from free-field to random-incidence.
Water, Oil and Dust-resistant and Replaceable Grid
A grid with built-in filter allows for use in heavily contaminated environments and is easy to replace.
Protected Venting
Dual, waterproof venting prevents moisture from blocking the venting and ruining your measurements.
Power-on Indicator
Visual confirmation of status and transducer electronic data sheets (TEDS) reading during power-up ensures efficiency and readiness for data collection.
Online Calibration Data
Calibration data for each specific microphone can be accessed at gras.dk/e-data.
Waterproof Connection
Waterproof connection and cabling ensure data integrity and surviveability during outdoor tests in all climate zones and weather conditions.
Learn about how to calibrate GRAS 146AE and other technical support and training material under GRAS Resources. If you need further assistance, visit our Global Support section.
IEC 61094-4/WS2F
Freq range: 3.15 Hz to 20 kHz
Dyn range: 18 dB(A) to 133 dB
Sensitivity: 50 mV/Pa
Temperature: -40 to +125°C
Humidity: 10 – 90%
IP67
The 146AE is a rugged free-field microphone set for all acoustic applications where the microphone can be pointed directly at the sound source. It is optimized for use in harsh environments at temperatures from -40 to 125°C.
Technology
Introduction
GRAS 146AE is a rugged microphone specifically developed for harsh environments like Automotive testing. It combines the high precision and stability of a laboratory microphone with an unprecedented level of ruggedness, i.e. ability to work properly under adverse conditions such as shock, high temperatures, moisture, water spray, oil mists, and dust.A new Paradigm for Automotive Testing
With the accuracy of an IEC 61094-4/WS2F measurement microphone and ruggedness combined in one microphone, you can now use a state of the art microphone that provides the advantage of quality and stability over an extended period of time, even when subjected to rough conditions.You can make critical quality measurements without having to replace the microphones, and in this way enhance the confidence in your measurements while at the same time minimizing downtime and maintenance costs. Not having to reconfigure the measurement setup, again and again, reduces costs and makes measurements easily comparable.
This microphone is specifically designed to resist vibrations, shock, and drop, and to produce accurate and repeatable measurements under harsh conditions. Application-specific test fixtures, cables, and accessories ensure easy positioning and handling.
An integrated PowerOn LED indication shows when the microphone is connected and ready to measure. If there is a faulty connection the LED will not be lit during power-up. Finally, it will light up when the TEDS chip is read. This feature makes it possible to run a full "are we ready to measure?" test of all connected microphones by sequentially activating their TEDS.
The 146AE is IP67 rated. All exposed parts are protected by water and oil repellent coating, which also is easy to clean. The coating can withstand heat and chemicals.
In addition to the microphone set's basic resilience against shock, dirt, and moisture a replaceable protective grid with water and dust filter adds an extra layer of flexible protection, including protection against high-velocity particles. This makes the microphone specifically well suited for high humidity, oil splash or outdoor measurement conditions. Simply replacing the filter-grid assembly will add to the time the microphone set can be mounted in the same test configuration.
The 146AE has the same low-temperature coefficient as a standard measurement microphone set as for example GRAS 46AE but can withstand permanent exposure to temperatures from -40 to 125°C with no permanent change to its sensitivity.
Comprehensively Tested
HALT
At GRAS we know that in order for you to trust your measurement results, signal quality, stability and robustness are essential. And because we also know how you handle and use the microphones in your daily work, we conduct a series of Highly Accelerated Lifetime Tests (HALT) to make sure that they perform under real-life conditions.
For the new rugged line of microphones, we have made our HALT even more challenging to reflect the extremely harsh environments and conditions in NVH measurements. It is vibrated for 60 hours at 8g, kept in temperatures varying from -40°C to +125°C, dropped horizontally and vertically from 150 cm on a hard surface and put through a tumbling test randomly falling 100 cm on a floor 100 times.
IP67 Certification
Furthermore, the 146AE is certified water and dust-proof (IP67).
Typical Applications and Use
The 146AE is a free-field microphone set designed for use in rough conditions such as NVH testing in the automotive industry.It is specifically designed for applications such as:
- Engine noise vibration testing
- Acoustic performance testing
- Pass by noise testing
- Power train induced noise
- Computer Model Validation/CAE validation
- Accelerated Life Cycle Testing
- Interior noise (Roof, AirCon, Squeak, and Rattle)
- Entertainment and Communication, Voice control
- Vehicle component evaluations and certifications (Brake, Tire, Exhaust)
- Testing at temperatures up to 125°C
Design
The GRAS 146AE is a high-performance 1/2” Constant Current Power (CCP) free-field rugged microphone set. As a CCP type microphone set it ensures simple cabling and stable connection setup, reducing costs. CCP connection standard is at the same time interchangeable with accelerometers and pressure sensors, giving a low multi-channel cost for combined Automotive and NVH testing.The microphone set is designed to be extraordinarily robust against strong vibrations, shock, drop, high temperatures, and wet or dusty conditions. Among the most important design features are the following:
- The microphone set is a tightly sealed unit, and all exposed parts are protected by a water and oil repellent coating.
- New methods and materials have been used for the interior of the microphone to improve its ability to absorb shock and vibrations, while the microphone housing is still made by the same well-proven type of stainless steel that is used for our standard measurement microphones.
- The diaphragm is more robust than what is usually used in measurement microphones. This, in combination with the coating, makes it easier to clean the diaphragm without damaging it. The diaphragm can be replaced during repair, keeping repair-cost to a minimum.
- The microphone grid is made from special materials and furnished with a coating, and especially robust to drop and scratches.
- New materials and mounting methods have been used for the preamplifier section, making it more resistant to being dropped repeatedly.
- The microphone has two venting holes, reducing the risk of water or oil drops from blocking the venting. The venting holes are protected by a unique filter, and the measurement set is IP67 rated.
- Together with a GRAS BNC coax cable with waterproof sealing, your whole measurement setup is IP67 rated.
- The ruggedness of the basic microphone set is further enhanced by the replaceable, special shock-absorbing protection grid with an integrated filter that protects against oil, moisture, dirt and high-velocity particles.
146AE is a free-field microphone. If you need to use it in a random incidence sound field, the RA0357 Random Incidence Corrector will change the response up to 10 kHz to diffuse field. Read more here.
Replaceable Grid with Enhanced Protection
The grid is scratch resistant and comes with a protective coating.The grid has a slightly larger diameter than the grids used on standard microphone sets like the GRAS 46AE, and therefore a dedicated calibration adapter is required. This adapter is part of the delivery.
Dust and Water Resistant Filter
The grid has an integrated filter that is made from an acoustically transparent mesh. This mesh offers protection against dust, dirt and high-velocity particles. It is water and oil repellant while remaining acoustically transparent. This filter protects the microphone in environments where very high humidity or direct water spray is present. It also protects against condensing. The filter is IP55 rated.Comprehensive Mounting Options
An adapter for use with GoPro™ mounting devices is available as an accessory. In this way, you get a vast variety of mounting options using widely accepted mounting methods, e.g. Picatinny.Low Cost of Ownership
The comprehensive precautions we have taken to make the 146AE immune to adverse test conditions result in a number of benefits that all translate into low costs of ownership. The total life span of the microphone set will be many times that of a conventional microphone set that must be discarded due to damage from dirt, moisture, shock, and vibrations.- The same microphone set can remain mounted in a test configuration for extended periods of time.
- Separate test results are immediately comparable because the same stable microphones are used.
- The protection grid with its protective filters can easily be replaced, for example before dirt and oil fog are clogging the meshes.
- The CCP (Constant Current Power) technology allows for low cost per measurement channel.
Combining these advantages you will obtain a lower cost of ownership, while at the same time enjoying the accuracy and stability of a laboratory microphone. This is also due to lower failure rates and improved productivity due to easier handling and control of your measurement setup.
Compatibility
The 146AE conforms to IEC61094-4/WS2F, it is terminated with a BNC connector and requires a constant current of 2 mA.Ready to use standard coax cable assemblies of various types and lengths or waterproof, heat and chemical resistant cables are available.
The 146AE is IEEE 1451.4 TEDS v. 1.0 compliant. If your measurement platform supports Transducer Electronic Data Sheets you will be able to read and write data like properties and calibration data.
System Verification
The integrated PowerOn indication and the functionality of TEDS are very useful to determine which microphone is connected to which input channel. However, it is not a check of whether the microphone is within specifications or not.For daily verification and check of your measurement setup, we recommend using a sound source like the GRAS 42AG Multifunction Sound Calibrator with the calibration adapter that is part of the delivery. For proper sensitivity calibration, we recommend using a reference sound source like the GRAS 42AP Intelligent Pistonphone.
Calibration Data
Calibration Data for each individual microphone set can be accessed online via the serial number. In this way, you can easily download and configure your analyzer with calibration data.Accessible on-line are also correction data for the protective grid in a format that your analyzer can read at www.gras.dk/e-data
GRAS HALT
When our R&D team develops a measurement microphone, it must undergo the most demanding tests to prove that it can withstand our customers' daily test conditions. Using a series of Highly Accelerated Lifetime Tests (HALT) we ensure that our microphones live up to the high quality and precision that our customers have come to expect and trust. Our HALT tests actively accelerate the lifetime of a microphone by simulating the handling and use it is exposed to in real-life situations. By stress testing to the limits, we have been able to optimize the design for robustness and stability.Service, Warranty and Repair
When leaving the factory, all GRAS microphones have been calibrated in a controlled laboratory environment using traceable calibration equipment. Depending on the use, measurement environment and internal quality control programs we recommend that the microphone is recalibrated at least once a year.We offer two kinds of calibration as an optional after-sales service: GRAS Traceable Calibration and GRAS Accredited Calibration.
GRAS Traceable Calibration is a traceable calibration performed by trained personnel under controlled conditions according to established procedures and standards. This is identical to the rigorous calibration that all GRAS microphones are subjected to as an integral part of our quality assurance. GRAS Accredited Calibration is performed by the GRAS Accredited Calibration Laboratory that has been accredited in accordance with ISO 17025 by DANAK, the Danish Accreditation Fund. If you want a new microphone set delivered with an accredited calibration instead of the default factory calibration, specify this when ordering.
All parts are manufactured and assembled at the factory in Denmark by skilled and dedicated operators in a verified clean-room environment.
Thanks to the high quality, our warranty against defective materials and workmanship is 5 years.
