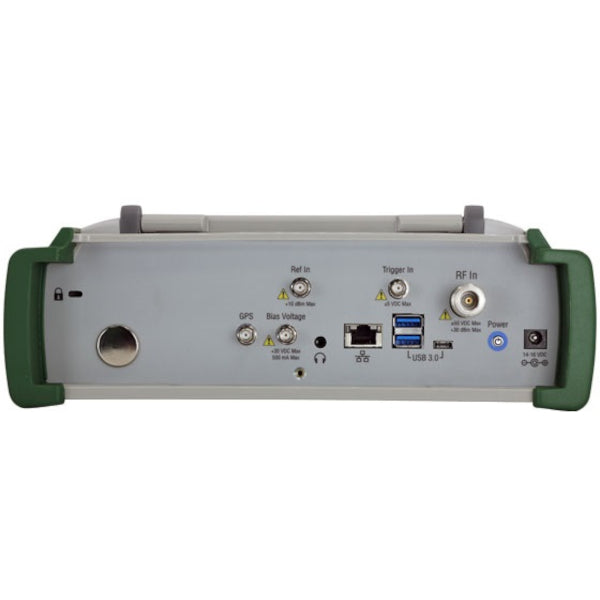

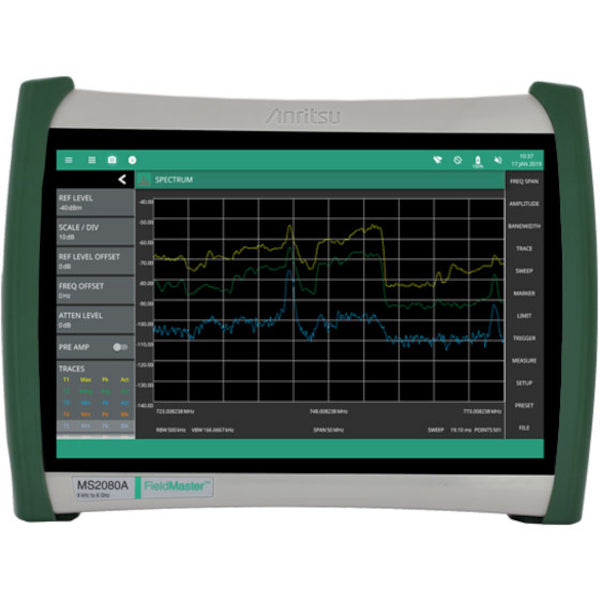

DEMO Anritsu MS2080A Field Master™
Use our chat for technical support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Frequency range : 9 kHz to 4 GHz
- Sweep speed : 45 GHz/s
- Phase noise : -95 dBc/Hz @ 1 GHz freq and 100 kHz offset
- DANL : < -165 dBm (with pre amp)
- Maximum input signal : +30 dBm
- Dynamic range : >105 dB minimum at 2.4 GHz, 2/3 (TOI-DANL) in 1 Hz RBW
- Amplitude range : DANL to +30 dBm
- Input damage level : 5 Watts
- Frequency accuracy : Aging: ±1.0 x 10–6 per 10 years Accuracy : ±0.28 x 10–6 (-10 °C ± 55°C) plus aging
- Amplitude accuracy : ±1 dB (± 0.5 dB typical)
- Resolution bandwidth in sweep mode : 1 Hz to 5 MHz
- Resolution bandwidth in zero span : 10 Hz to 20 MHz
- RTSA bandwidth : 40 MHz
- Demodulation : 5GNR base station, LTE base station
