Chroma 62000L series Programmable DC Power Supply
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Voltage range: 0 ~ 60VCurrent range: 0 ~ 7APower range: 0 ~ 150W
- Wide range of voltage & current combinations in constant power
- Clean and stable power with programmability at an affordable price
- Low noise: <3mVp-p
- High transient response: <30us
- High-speed programming
- Precision V&I measurements
- Standard GPIB/USB interface
- Remote sense
- Master-slave parallel and serial and serial control
- 8 steps for auto sequencing programming
- 16 storage locations for user-defined operating states
- OVP, Current limit, Thermal and Over-power protection
- CE Certified
Discover the possibilities
More information
Description

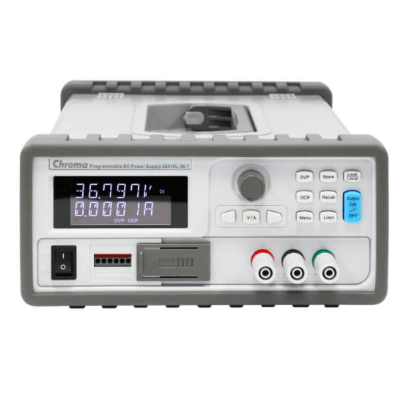

Chroma 62000L series Programmable DC Power Supply
The Chroma 62000L Series Programmable DC power supplies have low noise linear performance and fast transient response. The units have many unique functions that are targeted for overall automated test system integration, automotive power electronics MCU/ECU, power semiconductors, wireless communications, etc. The 62000L Series is a high quality yet cost effective programmable DC Source, designed to meet the stringent requirements of the next generation of power electronics.The GPIB and USB control interfaces come standard with the 62000L Series, no additional purchase required. The 62000L Series can be easily remote controlled via either of these two interfaces. The 62000L weighs less than 2.5 kg, and its case measures 214.6W * 88.6H * 280D mm. Its light weight and compact size makes it easy to handle and stack safely.。
Auto-ranging allows you to freely adjust voltage and current. This feature eliminates the need to manually select the optimum range allowing all of the power to be available across all of the voltage and current settings
If there are applications that need voltages and currents greater than the rated maximum outputs, this can be achieved using multiple power supplies. The power supply can output an extended range of voltages or currents by connecting more units. Up to 7 units can be connected at the same time, using a series-parallel connection to achieve greater voltage (up to 252V) and current (up to 49A) output.
Documents
Chroma 62000L series Programmable DC Power Supply
62000L-EOptions
Chroma 62000L series Programmable DC Power Supply
| 62010L-36-7 | Programmable DC Power Supply 36V/7A/108W + GPIB & USB | |
| 62015L-60-6 | Programmable DC Power Supply 60V/6A/150W + GPIB & USB | |
| B620001 | 62000L Series 19-inch frame ear frame (1 set 2U) |
Video
Chroma 62000L series Programmable DC Power Supply
The Chroma 62000L Series Programmable DC power supplies have low noise linear performance and fast transient response. The units have many unique functions that are targeted for overall automated test system integration, automotive power electronics MCU/ECU, power semiconductors, wireless communications, etc. The 62000L Series is a high quality yet cost effective programmable DC Source, designed to meet the stringent requirements of the next generation of power electronics.The GPIB and USB control interfaces come standard with the 62000L Series, no additional purchase required. The 62000L Series can be easily remote controlled via either of these two interfaces. The 62000L weighs less than 2.5 kg, and its case measures 214.6W * 88.6H * 280D mm. Its light weight and compact size makes it easy to handle and stack safely.。
Auto-ranging allows you to freely adjust voltage and current. This feature eliminates the need to manually select the optimum range allowing all of the power to be available across all of the voltage and current settings
If there are applications that need voltages and currents greater than the rated maximum outputs, this can be achieved using multiple power supplies. The power supply can output an extended range of voltages or currents by connecting more units. Up to 7 units can be connected at the same time, using a series-parallel connection to achieve greater voltage (up to 252V) and current (up to 49A) output.
Chroma 62000L series Programmable DC Power Supply
62000L-EChroma 62000L series Programmable DC Power Supply
| 62010L-36-7 | Programmable DC Power Supply 36V/7A/108W + GPIB & USB | |
| 62015L-60-6 | Programmable DC Power Supply 60V/6A/150W + GPIB & USB | |
| B620001 | 62000L Series 19-inch frame ear frame (1 set 2U) |
