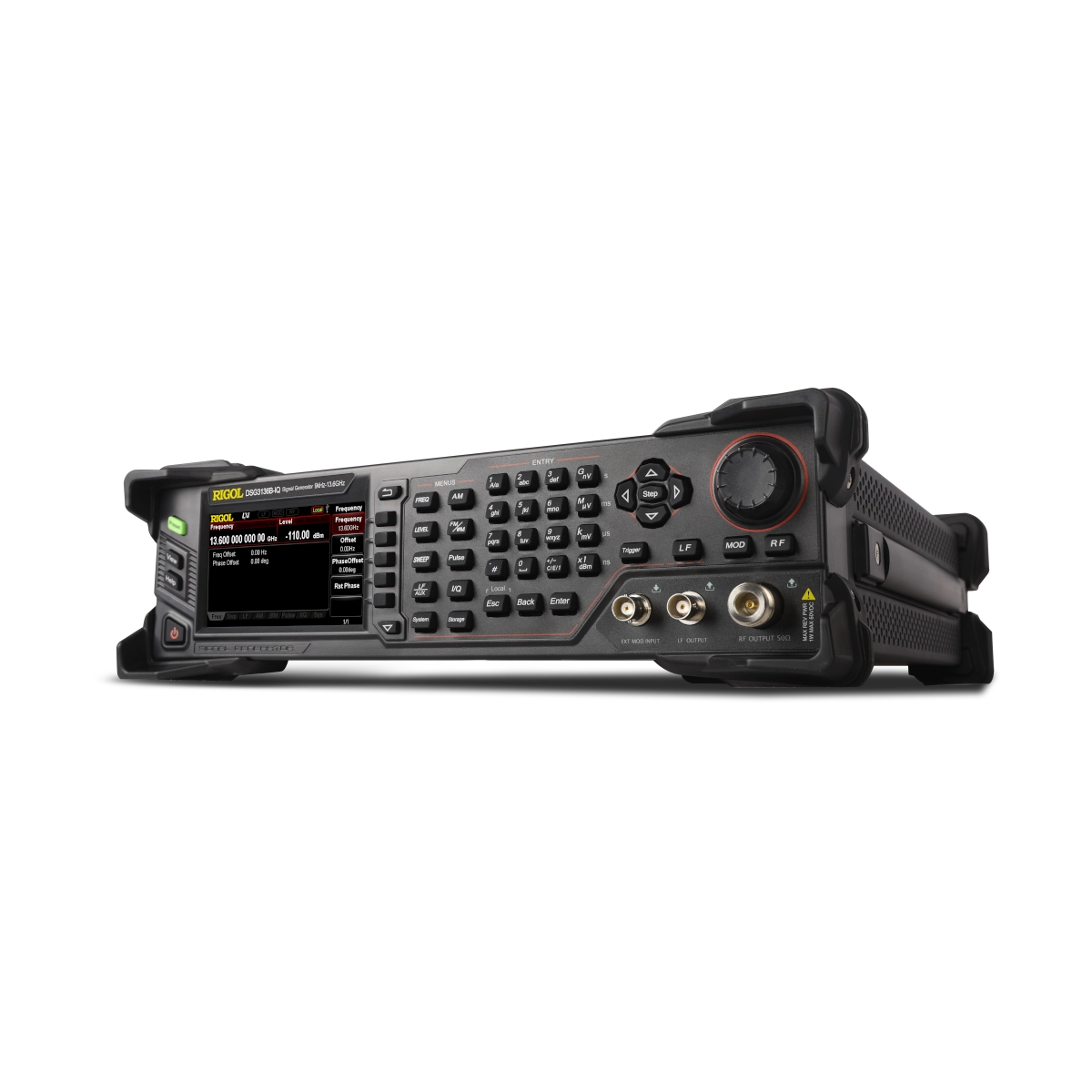

Campaign - RIGOL DSG3136B RF Signal Generator + Free DSG3000B-PUG
Use our chat for technical support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Frequency Range: 9kHz~13.6GHz
- Amplitude Specification Range: -110dBm~+20dBm
- SSB Phase Noise (Typ.): <-116dBc/Hz@1GHz,20kHz offset
- Modulation Type: AM/FM/ØM/Pulse
:%20%26lt;-116dBc/Hz@1GHz,20kHz%20offset%0AModulation%20Type:%20AM/FM/%C3%98M/Pulse%0A
){kind=link}
Discover the possibilities
More information
Description
High Power Signal Generation Capability
The maximum output amplitude is +27dBm，which meets the non-linearity test of the amplifier.
Phase Noise Metric
High signal purity, phase noise typical value <-116dBc/Hz@20kHz ; better high-stability clock reference can get better near-phase noise index
Support pulse modulation; on/off ratio up to 70 dB
Support pulse modulation; on/off ratio up to 70 dB
Internal and External IQ Modulation
Users can choose both internal and external IQ modulation modes, internal I+Q modulation bandwidth up to 60MHz, EVM <0.7%, external I+Q modulation bandwidth 240MHz, EVM <2% (typical), and Ultra IQ Station for convenience Generated vector signal waveform
Multiple Modulation Methods
Standard amplitude modulation, frequency modulation, equal modulation analog modulation and pulse modulation and pulse generator, optional user-defined pulse sequence, and I / Q modulation and IQ baseband generator can generate QAM, ASK, PSK, FSK, Various commonly used modulation signals such as MSK; all modulations support internal and external modulation sources
Specifications
Documents
Options
Video
High Power Signal Generation Capability
The maximum output amplitude is +27dBm，which meets the non-linearity test of the amplifier.
Phase Noise Metric
High signal purity, phase noise typical value <-116dBc/Hz@20kHz ; better high-stability clock reference can get better near-phase noise index
Support pulse modulation; on/off ratio up to 70 dB
Support pulse modulation; on/off ratio up to 70 dB
Internal and External IQ Modulation
Users can choose both internal and external IQ modulation modes, internal I+Q modulation bandwidth up to 60MHz, EVM <0.7%, external I+Q modulation bandwidth 240MHz, EVM <2% (typical), and Ultra IQ Station for convenience Generated vector signal waveform
Multiple Modulation Methods
Standard amplitude modulation, frequency modulation, equal modulation analog modulation and pulse modulation and pulse generator, optional user-defined pulse sequence, and I / Q modulation and IQ baseband generator can generate QAM, ASK, PSK, FSK, Various commonly used modulation signals such as MSK; all modulations support internal and external modulation sources
