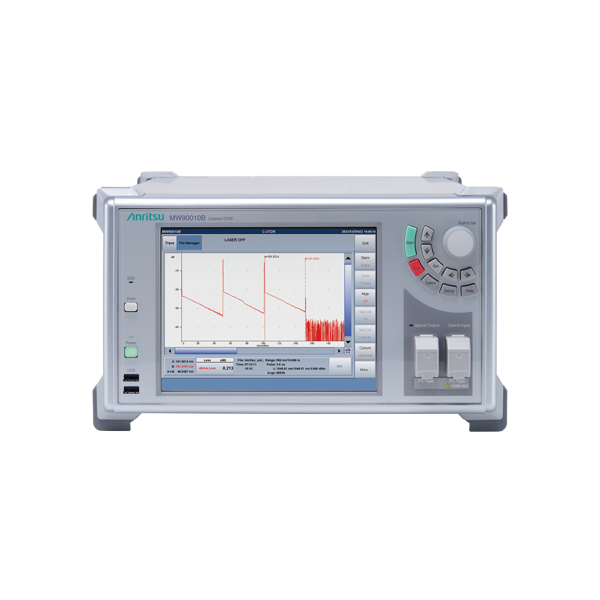

Anritsu MW90010B Coherent OTDR
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Covers c-band wavelengths from 1527.60 nm to 1567.13 nm
- Built-in tunable light source with ±0.05 nm wavelength accuracy
- Standard 12,000 km measurement distance range optionally extendable to 20,000 km with 10 m resolution
- Easily portable at 10 kg max. mass
Discover the possibilities
More information
Description
The Coherent OTDR MW90010B can measure ultra-long submarine cables of up to 20,000 km to locate faults with 10 m measurement resolution.
Coherent detection technology captures waveform data, including fault location, cable loss, bending loss, fiber length, etc., for detailed evaluation of submarine cables. Its excellent basic performance, such as measurement time and dynamic range, accurately measures submarine cables with optical-amplifier repeaters separated by distances of 80 km or more.
Moreover, setting the built-in tunable light source with a wavelength accuracy of ±0.05 nm to a wavelength range of 1527.60 nm to 1567.13 nm supports measurement of DWDM submarine cables.
Specifications
| Items | Specifications |
|---|---|
| Fiber under test | ITU-T G.653 (DSF) |
| Optical connector | FC, SC, (User Replaceable, PC Type) |
| Wavelength (Probe light) | 1527.60 nm to 1567.13 nm |
| Wavelength accuracy | ±0.05 nm (20°C to 30°C) |
| Warm-up time | 2 minutes (20°C to 30°C) |
| Pulse width | 3/10/30/60/100 µs |
| Optical output power | 0 to +13 dBm, 0.5 dB Steps |
| Dynamic range (S/N=1) | 18 dB (typ.) Measurement conditions (25℃, Pulse Width: 10 μs, Averaging Times: 216, Distance Range: 1000 km, Smoothing: On, Signal: –57 dBm @ Pin) |
| Dead zone | 0.5 km (Pulse Width: 3 µs) |
| Distance range | 100 km, 500 km to 12,000 km (in 500 km steps) With MW90010B-003 100 km, 500 km to 20,000 km (in 500 km steps) |
| Measurement time | 15 minutes (Distance Range: 1000 km, Averaging Times: 216) |
| Dimensions and mass | 320 (W) × 177 (H) × 451 (D) mm, ≤10 kg |
Documents
Brochure:
Options
Video
The Coherent OTDR MW90010B can measure ultra-long submarine cables of up to 20,000 km to locate faults with 10 m measurement resolution.
Coherent detection technology captures waveform data, including fault location, cable loss, bending loss, fiber length, etc., for detailed evaluation of submarine cables. Its excellent basic performance, such as measurement time and dynamic range, accurately measures submarine cables with optical-amplifier repeaters separated by distances of 80 km or more.
Moreover, setting the built-in tunable light source with a wavelength accuracy of ±0.05 nm to a wavelength range of 1527.60 nm to 1567.13 nm supports measurement of DWDM submarine cables.
Specifications
| Items | Specifications |
|---|---|
| Fiber under test | ITU-T G.653 (DSF) |
| Optical connector | FC, SC, (User Replaceable, PC Type) |
| Wavelength (Probe light) | 1527.60 nm to 1567.13 nm |
| Wavelength accuracy | ±0.05 nm (20°C to 30°C) |
| Warm-up time | 2 minutes (20°C to 30°C) |
| Pulse width | 3/10/30/60/100 µs |
| Optical output power | 0 to +13 dBm, 0.5 dB Steps |
| Dynamic range (S/N=1) | 18 dB (typ.) Measurement conditions (25℃, Pulse Width: 10 μs, Averaging Times: 216, Distance Range: 1000 km, Smoothing: On, Signal: –57 dBm @ Pin) |
| Dead zone | 0.5 km (Pulse Width: 3 µs) |
| Distance range | 100 km, 500 km to 12,000 km (in 500 km steps) With MW90010B-003 100 km, 500 km to 20,000 km (in 500 km steps) |
| Measurement time | 15 minutes (Distance Range: 1000 km, Averaging Times: 216) |
| Dimensions and mass | 320 (W) × 177 (H) × 451 (D) mm, ≤10 kg |
