Anritsu MS46122B Compact USB VNA
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Guaranteed performance to 43.5 GHz with Extended K™ ports
- PC control takes advantage of external computer processing power and functionality
- Compact 1U high package for efficient use of bench and rack space
- No on-board data storage eliminates the need for data purging in secure applications
- Time domain with time gating option enables easier and faster fault identification
- A common GUI interface within the ShockLine family reduces switching costs between models
- Universal Fixture Extraction (UFX) software option provides advanced de-embedding tools for test fixture extraction
Discover the possibilities
More information
Description

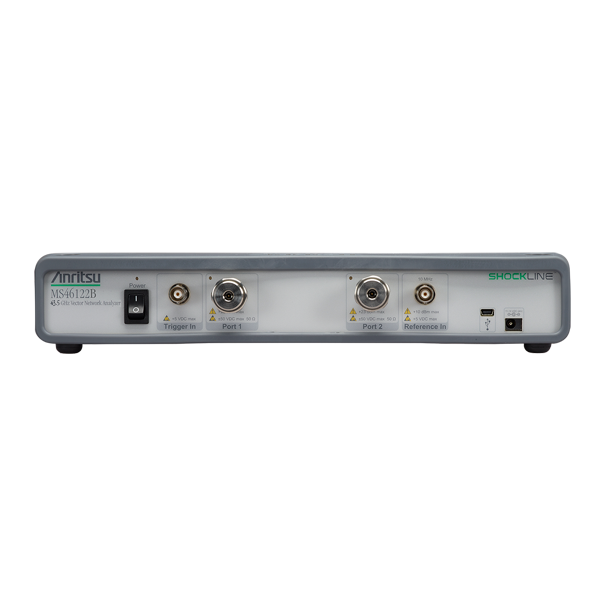

Anritsu MS46122B Compact USB Vector Network Analyzer
The ShockLine™ Anritsu MS46122B series consists of three PC-controlled, compact vector network analyzers (VNAs) with frequency ranges from 1 MHz to 8/20/43.5 GHz. The series benefits from patented shockline VNA-on-chip technology that simplifies the internal VNA architecture at high frequencies, reduces instrument cost, and enhances accuracy and measurement repeatability.
All the members of the ShockLine MS46122B series are low-cost, full-reversing, 2-port VNAs aimed at RF and microwave applications within manufacturing, engineering, and education organizations. All three VNAs have 130 microseconds per point sweep speed and better than 100 dB dynamic range, making them suitable for a variety of device test applications including measuring passive 5G mmWave components.
These VNAs are packaged in a very compact and portable 1U chassis, are externally controlled via USB from a user-supplied PC, and powered using an external power supply brick. The ShockLine MS46122B VNA series are controlled using the same graphical user interface (GUI) and driver software as the rest of the ShockLine family of VNAs. The series does not have any on-board memory, which simplifies their use in secure applications. The combination of lower cost, small size, and good performance make the ShockLine MS46122B VNA series ideal for passive device test applications where portability and space efficiency are key.
Applications
RF and Microwave Passive Component Testing and Troubleshooting
- RF and microwave connectors and cables
- Electromechanical switches
- Attenuators
- Couplers
- Filters
- Isolators
- Circulators
- Phase Shifters
System Integration Application
- System Calibration
- Path-loss Characterization
- General s-parameters and time domain measurements
Secure Area Applications
- No data storage on unit
- Secure external computer control through direct USB connection
Wireless Power Transfer Applications
- KQ product
- Maximum efficiency
For more information: Anritsu
Documents
Anritsu MS46122B Compact USB Vector Network Analyzer
Anritsu MS46122B DatasheetOptions
Anritsu MS46122B Compact USB Vector Network Analyzer
Frequency Options (select one frequency option only)
| Option | Description |
| MS46122B-010 | 1 MHz — 8 GHz, type N(f) ports |
| MS46122B-020 | 1 MHz — 20 GHz, type ruggedized K(m) ports (compatible with 3.5 mm and SMA connectors) |
| MS46122B-043 | 1 MHz – 43.5 GHz, type ruggedized Extended K™ (m) ports (compatible with standard K, 3.5 mm and SMA connectors) |
Other Options
| Option | Description |
| MS46122B-002 | Time Domain with Time Gating |
| MS46122B-024 | Universal Fixture Extraction |
Video
Anritsu MS46122B Compact USB Vector Network Analyzer
The ShockLine™ Anritsu MS46122B series consists of three PC-controlled, compact vector network analyzers (VNAs) with frequency ranges from 1 MHz to 8/20/43.5 GHz. The series benefits from patented shockline VNA-on-chip technology that simplifies the internal VNA architecture at high frequencies, reduces instrument cost, and enhances accuracy and measurement repeatability.
All the members of the ShockLine MS46122B series are low-cost, full-reversing, 2-port VNAs aimed at RF and microwave applications within manufacturing, engineering, and education organizations. All three VNAs have 130 microseconds per point sweep speed and better than 100 dB dynamic range, making them suitable for a variety of device test applications including measuring passive 5G mmWave components.
These VNAs are packaged in a very compact and portable 1U chassis, are externally controlled via USB from a user-supplied PC, and powered using an external power supply brick. The ShockLine MS46122B VNA series are controlled using the same graphical user interface (GUI) and driver software as the rest of the ShockLine family of VNAs. The series does not have any on-board memory, which simplifies their use in secure applications. The combination of lower cost, small size, and good performance make the ShockLine MS46122B VNA series ideal for passive device test applications where portability and space efficiency are key.
Applications
RF and Microwave Passive Component Testing and Troubleshooting
- RF and microwave connectors and cables
- Electromechanical switches
- Attenuators
- Couplers
- Filters
- Isolators
- Circulators
- Phase Shifters
System Integration Application
- System Calibration
- Path-loss Characterization
- General s-parameters and time domain measurements
Secure Area Applications
- No data storage on unit
- Secure external computer control through direct USB connection
Wireless Power Transfer Applications
- KQ product
- Maximum efficiency
For more information: Anritsu
Anritsu MS46122B Compact USB Vector Network Analyzer
Anritsu MS46122B DatasheetAnritsu MS46122B Compact USB Vector Network Analyzer
Frequency Options (select one frequency option only)
| Option | Description |
| MS46122B-010 | 1 MHz — 8 GHz, type N(f) ports |
| MS46122B-020 | 1 MHz — 20 GHz, type ruggedized K(m) ports (compatible with 3.5 mm and SMA connectors) |
| MS46122B-043 | 1 MHz – 43.5 GHz, type ruggedized Extended K™ (m) ports (compatible with standard K, 3.5 mm and SMA connectors) |
Other Options
| Option | Description |
| MS46122B-002 | Time Domain with Time Gating |
| MS46122B-024 | Universal Fixture Extraction |
