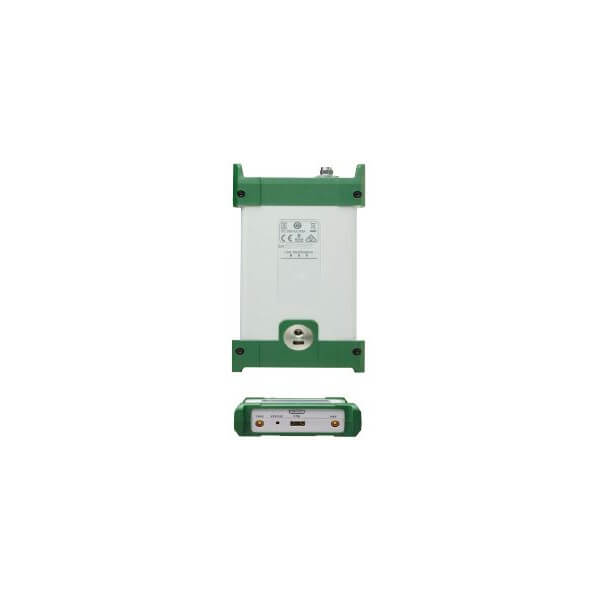

Anritsu MS2760A spectrum analyzer
Anritsu MS2760A spectrum analyzer
Anritsu MS2760A spectrum analyzer
Anritsu

Anritsu MS2760A Spectrum Analyzer

Sale price0,00 DKK Price on quotation
Order Item

Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk

  • First portable spectrum analyzer to provide continuous frequency coverage to 170 GHz
  • Broadband mmWave capabilities for radio astronomy, automotive radar, wireless backhaul, 802.11ad, satcom, and more
  • Ultraportable form factor enables measurements right at the device under test
  • Measure: channel power, adjacent channel power, occupied bandwidth
  • Patented NLTL technology provides > 100 dB dynamic range
  • -141/-136/-129/-122 dBm DANL to 90/110/145/170 GHz ( Spectrum Master MS2762A)
  • Up to 6 traces, 3 trace detectors, and 12 markers
  • Standard three-year warranty

Discover the possibilities

More information

Anritsu MS2760A Spectrum Analyzer

Ultra-portable. Ultra-broadband. The Spectrum Master™ MS276xA family of ultraportable spectrum analyzers is the first solution of its kind to provide continuous coverage to 170 GHz. This family now offers:
  • The Spectrum Master Anritsu MS2760A models: providing full broadband coverage from 9 kHz to 170 GHz with excellent dynamic range and DANL performance.
  • The Spectrum Master MS2762A models: providing increased dynamic range and DANL performance than the Spectrum Master MS2760A models for the most demanding sensitivity requirements, these units frequency coverage range is from 6 GHz to 170 GHz.

The Spectrum Master MS2760A and MS2762A solutions deliver the best-in-class price/performance ratio unmatched by traditional benchtop instruments. The Spectrum Master™ MS276xA series are pocket-sized, yet big on performance with leading dynamic range, sweep speed, and amplitude accuracy. The ultraportable size of these instruments enables a direct connection to almost any DUT, eliminating the need for lossy, expensive cables. This enables you to more efficiently advance your technology development and reduce your time to market.

Utilizing Anritsu’s patented nonlinear transmission line (NLTL) technology – the same technology that Anritsu’s world-class vector network analyzers use – the 145 GHz and 170 GHz models are the world's first handheld, millimeter-wave spectrum analyzers to provide broadband, continuous coverage from 9 kHz to 170 GHz and break through the 110 GHz barrier. Having frequency coverage in to the higher bands enables research and development in the entire D band spectrum as well as advanced millimeter-wave applications like radio astronomy, automotive radar, antenna beam pattern testing, and more.

The Spectrum Master MS276xA family are all USB-powered and controlled from a Windows-based PC, laptop, or tablet, making them uniquely flexible for use in the lab, on the manufacturing floor, or even in the field.

For more information: Anrtisu
