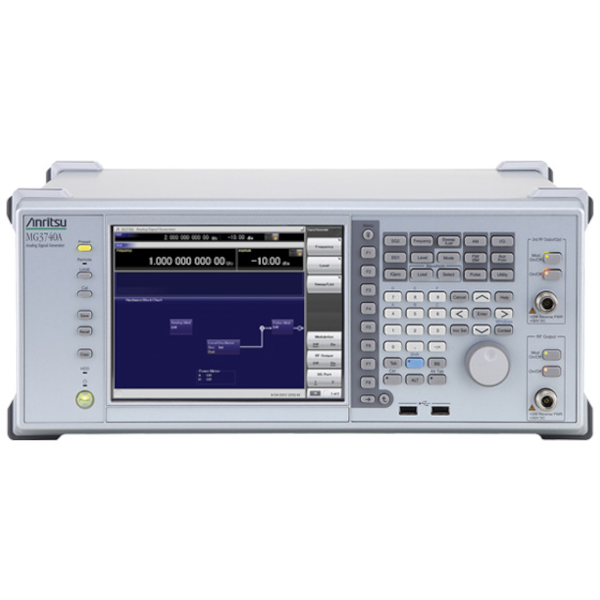

Anritsu MG3740A-034 Analog Signal Generator
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Analog Signal Generator supporting frequencies of 100 kHz to 4 GHz
- High-purity signal source for testing analog radio
- Built-in AM/FM/ΦM/Pulse modulation function [Standard]
- Two RF outputs using Dual-RF [Option]
- Expansion to narrowband digital modulation signal generator [Option]
Discover the possibilities
More information
Description
The Analog Signal Generator MG3740A has excellent RF specifications, including SSB phase noise, output level, etc., and versatile modulation functions (AM/FM/ΦM/Pulse). The MG3740A is the ideal solution for high-purity signal source for testing analog radio Rx characteristics. Moreover, adding the digital modulation option supports generation of narrowband digital modulation signals.
Supports narrowband digital modulation as well as CW and analog modulations.
| Frequency range | 100 kHz to 4 GHz [1stRF Option] 100 kHz to 4 GHz [2ndRF Option] |
| SSB phase noise | <-140 dBc/Hz (nom.) (100 MHz, 20 kHz offset, CW) <-131 dBc/Hz (typ.) (1 GHz, 20 kHz offset, CW) |
| Level setting range | -110 to +17 dBm [Standard] -144 to +17 dBm [Option] |
| High power output | +23 dBm (CW, 400 MHz to 3 GHz) [Option] |
| Switching speed | <600 µs (frequency/amplitude, List/Sweep mode) |
| Built-in AM/FM/ΦM/Pulse modulation function [Standard] | |
Expansion Options
Adding additional analog modulation input [Option]:
Adding additional analog modulation input options extends to two internal modulation sources (AM/FM/ΦM) and one external modulation source supporting simultaneous two-signal modulation.
Two independent RF outputs using Dual-RF [Option]:
Supports "Wanted + Interference wave for Rx characteristics tests", "Amp intermodulation characteristics evaluation" and "RF/LO signal source for Mixer evaluations".
USB power sensor (Sold separately):
Supports connection of two USB power sensors max.
Expansion to narrowband digital modulation signal generator [Option]:
Adding the digital modulation function [Option] supports generation of narrowband digital modulation signals.
- RF modulation bandwidth : 2 MHz
- Waveform generation software: IQproducer (License sold separately) TDMA IQproducer / Fading IQproducer
BER measurement function [Option]:
Input bit rate: 100 bps to 40 Mbps
Communications Interfaces
- Standard 1000BASE-T, GPIB, and USB interfaces
- Built-in SCPI, MG3700A/MS269xA/MS2830A/MG364xA compatibility modes
For more information: Anritsu
Documents
Datasheet:
Options
Hardware Main Frame MG3740A Analog Signal Generator Hardware Option
1stRF
(Requires one option)MG3740A-032 1stRF 100 kHz to 2.7 GHz MG3740A-034 1stRF 100 kHz to 4 GHz MG3740A-036 1stRF 100 kHz to 6 GHz Hardware Option
2ndRF
(optional) (1xx: Retrofit)MG3740A-062/162 2ndRF 100 kHz to 2.7 GHz MG3740A-064/164 2ndRF 100 kHz to 4 GHz MG3740A-066/166 2ndRF 100 kHz to 6 GHz Hardware Option
Common
(1xx: Retrofit)MG3740A-001/101 Rubidium Reference Oscillator MG3740A-002/102 High Stability Reference Oscillator MG3740A-011/111 Secondary HDD MG3740A-014/114 NEW Removable HDD, Windows 10 MG3740A-017/117 Universal Input/Output MG3740A-020/120 Digital Modulation MG3740A-021/121 BER Test Function Hardware Option
For 1stRF
(1xx: Retrofit)MG3740A-041/141 High Power Extension for 1stRF MG3740A-042/142 Low Power Extension for 1stRF MG3740A-043/143 Reverse Power Protection for 1stRF MG3740A-045/145 ARB Memory Upgrade 256 Msample for 1stRF*1 MG3740A-048/148 Combination of Baseband Signal for 1stRF*1 MG3740A-050/150 Additional Analog Modulation Input for 1stRF Hardware Option
For 2ndRF
(1xx: Retrofit)MG3740A-071/171 High Power Extension for 2ndRF MG3740A-072/172 Low Power Extension for 2ndRF MG3740A-073/173 Reverse Power Protection for 2ndRF MG3740A-075/175 ARB Memory Upgrade 256 Msample for 2ndRF*1 MG3740A-078/178 Combination of Baseband Signal for 2ndRF*1 MG3740A-080/180 Additional Analog Modulation Input for 2ndRF Software
IQproducer*1MX370102A TDMA IQproducer MX370107A Fading IQproducer Maintenance Service MG3740A-ES210 2 Years Extended Warranty Service MG3740A-ES310 3 Years Extended Warranty Service MG3740A-ES510 5 Years Extended Warranty Service
*: MG3740A-1xx: Retrofit options.
*1: Requires MG3740A-020/120.
