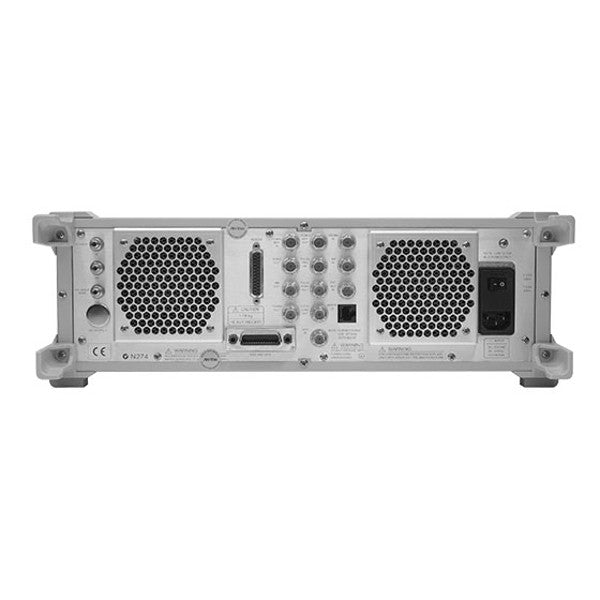

Anritsu MG3693C 31.8GHz RF/MW Generator

Anritsu MG3693C 31.8GHz RF/MW Generator

The MG3693C broadband signal generator covers audio, HF, VHF, UHF, RF and microwave frequencies from 0.1 Hz to 31.8 GHz in single coaxial output and up to 500 GHz or beyond, with external multipliers. In addition, it is easy to operate either through intuitive front panel controls or remotely via GPIB or Ethernet connectivity. Thus, the MG3690C series is an ideal signal source for both RF and microwave requirements, fully configurable for simple to high performance applications.

The MG3690C replaces the existing MG3690B signal generator, offering three levels of best-in-class SSB phase noise performance; Standard, Ultra low phase noise (option 3) and Premium phase noise (option3X).along with full suite of modulation capabilities for signal simulations from simple to the most complex. For IQ modulation, the IF input option allows the easy up-conversion of an externally IQ-modulated RF signal.

The MG3690C preserves full backward compatibility with the MG3690A/B and previous 68C/69B series of RF and microwave signal generators.

Anritsu MG3693C 31.8GHz RF/MW Generator

Anritsu MG3693C Datasheet

Anritsu MG3693C 31.8GHz RF/MW Generator

MG3691C Signal Generator, 2 GHz to 10 GHz MG3692C Signal Generator, 2 GHz to 20 GHz MG3693C Signal Generator, 2 GHz to 31.8 GHz MG3694C Signal Generator, 2 GHz to 40 GHz MG3695C Signal Generator, 2 GHz to 50 GHz MG3697C Signal Generator, 2 GHz to 67 GHz (operational to 70 GHz) MG3690C/1A Option 1A, Rack Mount with slides MG3690C/1B Option 1B, Rack Mount without slides MG3690C/2x Option 2x, Mechanical Step Attenuator MG3690C/2E Option 2E, Electronic Step Attenuator MG3690C/3 Option 3, Ultra Low Phase Noise, improved Standard Phase Noise MG3690C/3X Option 3X, Premium Phase Noise - improves option 3 (< 1 kHz offset); for models except MG3691C MG3690C/3XA Option 3XA, Premium Phase Noise - improves option 3 (< 1 kHz offset); for MG3691C MG3690C/4 Option 4, extends frequency coverage from 8 MHz to 2.2 GHz MG3690C/5 Option 5, extends frequency coverage from 8 MHz to 2 GHz MG3690C/6 Option 6, Analog Sweep Capability MG3690C/7 Option 7, IF Up-Conversion MG3690C/8 Option 8, Power Monitor MG3690C/9X Option 9, Rear Panel Output MG3690C/10 Option 10, User-Defined Modulation Waveform Software MG3690C/12 Option 12, Frequency and Phase MG3690C/14 Option 14, Amplitude Modulation MG3690C/15x Option 15x, High Power MG3690C/16 Option 16, High Stability Time Base MG3690C/17 Option 17, Delete Front Panel MG3690C/18 Option 18, DC Output: + 15 VDC, 1A (nominal) MG3690C/20 Option 20, Scan Modulation MG3690C/22 Option 22, extends frequency coverage from 0.1 Hz to 10 MHz MG3690C/26x Option 26x, Pulse modulation MG3690C/27 Option 27, Internal LF and Pulse Generators MG3690C/28x Option 28x, Analog Modulation Suite MG3690C/36 Ultra-Stable Phase Tracking x - Option designation varies with MG3690C model
