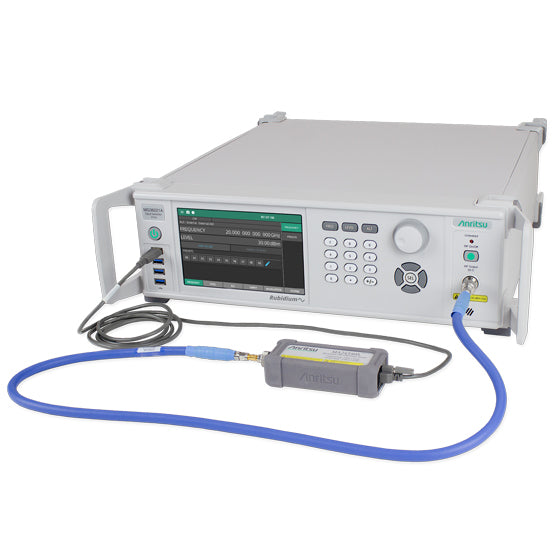

Anritsu MG36271A 70 GHz Generator
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Industry leading phase noise and spurious performance across broad frequency range
- Atomic clock frequency stability with optional internal rubidium frequency reference
- High output power with low spurious eliminates need for external power amplification
- Convenience and increased instrument availability with built-in, on-site frequency and power calibration capability (Optional)
- Pulsed radar signal simulation with comprehensive narrow pulse generation capability
Discover the possibilities
More information
Description
Signal purity determines quality of measurements in several applications such as radar, transceiver, ADC/DAC and components testing. Rubidium™ pushes the envelope in phase noise performance with its low and ultra low phase noise options. Coupled with best-in-class harmonic and spurious performance, Rubidium signal generator offers industry leading overall signal purity performance that enables customers to make more accurate measurements.
Rubidium MG362x1A offers atomic clock frequency stability with an internal rubidium frequency reference option. Alternatively, customers can also get exceptional frequency stability by locking an internal oven controlled crystal oscillator (OCXO) reference to an external GNSS/GPS signal. The exceptional frequency stability makes Rubidium an ideal signal generator for Metrology and high speed clock applications.
Rubidium’s AM, FM/PM and Pulse modulation capabilities enable generation of wide range of complex analog modulated signals. Simultaneous modulation of AM/FM, AM/PM, or FM/Pulse is possible to generate complex modulation waveforms such as chirps. Wide range of signal simulation capabilities are built into the signal generators for pulsed radar testing, as well.
Rubidium features a 7 inch touch screen along with keypad and dial on the front panel. Four USB 3.0 ports on the front panel enable connecting to a variety of devices such as memory devices and Anritsu's USB power sensors. Standard drivers such as IVI.NET and IVI-C along with support of SCPI commands make remote programming of Rubidium quick and efficient.
| Features | Benefit |
| Very low phase noise, close in and far out |
|
| Atomic clock frequency stability and accuracy |
|
| Onsite level and frequency calibration |
|
| Very low harmonic and spurious |
|
| Quad pulse signal generation and pulse sweep |
|
| Parameter | Specification |
| Frequency Range | 9 kHz to 70 GHz |
| Frequency Resolution | 0.001 Hz |
| Phase Offset | Adjustable in 0.1 degree steps |
| SSB phase noise | -136 dBc/Hz (typ) and -140 dBc/Hz (measured) @ 10 GHz output, 10 kHz offset |
| Internal time base stability - Aging | < ±2 x 10E-8 per year with option 0003 < ±1 x 10E-9 per year with option 0056 |
| Reference frequency input/output | 10 MHz, 100 MHz and 1.6 GHz |
| Output power | -130 dBm to +20 dBm (MG36221A standard output, with option 0002) -130 dBm to +16 dBm (MG36241A, standard output, with option 0002) -90 dBm to +6 dBm (MG36271A, standard output, with option 0002) |
| Level accuracy and flatness | +/- 1.4 dB (MG36221A/MG36241A) +/- 2.5 dB (MG36271A) |
| Harmonics (20/43.5/70 GHz) | -58 dBc (MG36221A) -55 dBc (MG36241A and MG36271A) |
| Sub Harmonics | -83 dBc (MG36221A and MG36241A) -63 dBc (MG36271A) |
| Non harmonics (20/43.5/70 GHz) | -63 dBc |
| Modulation | AM, FM, PM and Pulse |
| Pulse modulation: min pulse width | <50 ns (Unleveled) |
| Pulse modulation: Rise/Fall times | 5 ns (typical) |
| LF signal Generator waveforms | Sine, square, pulse, triangle, ramp, GN/UN noise |
| Frequency sweep modes | Step, List, Analog |
| Frequency sweep width | 9 kHz to full frequency range (step, list) 100 MHz to full frequency range (Analog) |
| Power sweep | Step and List |
| Power sweep resolution | 0.01 dB/step |
For more information: Anritsu
