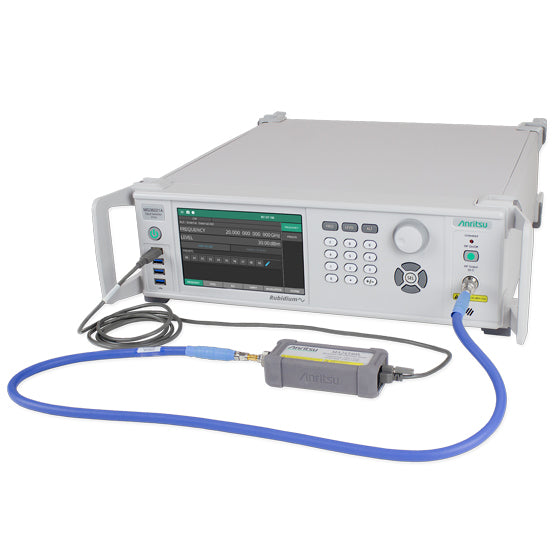

Anritsu MG36241A 43,5 GHz Generator
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Industry leading phase noise and spurious performance across broad frequency range
- Atomic clock frequency stability with optional internal rubidium frequency reference
- High output power with low spurious eliminates need for external power amplification
- Convenience and increased instrument availability with built-in, on-site frequency and power calibration capability (Optional)
- Pulsed radar signal simulation with comprehensive narrow pulse generation capability
Discover the possibilities
More information
Description
Anritsu Rubidium MG36241A offers atomic clock frequency stability with an internal rubidium frequency reference option. Alternatively, customers can also get exceptional frequency stability by locking an internal oven controlled crystal oscillator (OCXO) reference to an external GNSS/GPS signal. The exceptional frequency stability makes Rubidium an ideal signal generator for Metrology and high speed clock applications.
Signal purity and frequency stability are essential distinguishing characteristics of a high frequency microwave signal generator. The Rubidium MG36241A signal generator product line is built to deliver outstanding signal purity and frequency stability across a broad frequency range of 9 kHz to 43,5 GHz, even at high output power levels. Coupled with built-in, easy-to-use, at location frequency and power calibration capability, the low noise RF/microwave signal generator Rubidium MG36241A offers exceptional overall utility and long term value for a broad range of measurement applications.
The Rubidium MG36241A standard phase noise outperforms competition by a substantial margin. Two additional tiers of phase noise performance on top of the standard phase noise performance are offered as options. The low phase noise option delivers improved close in phase noise along with better frequency stability. The ultra low phase noise option provides improved phase noise at higher offsets. For CW only applications between 2 GHz to 43,5 GHz, Rubidium provides an even lower phase noise than the ultra low phase noise option, allowing for another 3 dB improvement on a separate RF output port at the back panel.
The low noise RF/microwave signal generator Rubidium MG36241A offers atomic clock frequency stability with an internal rubidium frequency reference option. Alternatively, customers can get exceptional frequency stability by locking an internal oven controlled crystal (OCXO) reference to an external GNSS signal. The exceptional frequency stability coupled with low phase noise performance makes the Rubidium MG36241A the ideal choice for many measurement applications.
The Rubidium MG36241A modulation capabilities include amplitude, frequency, phase, and pulse modulation to address simple to complex signal simulation requirements. It offers very comprehensive pulse generation capabilities to test pulsed radar systems. It also supports Anritsu’s True-RMS and CW power sensors.
The Rubidium MG36241A is housed in a 3U chassis with a 7-inch touch screen on the front panel and traditional keypad/dial interface. The Rubidium MG36241A offers a high degree of configurability through a wide range of options to achieve optimum cost to function tradeoffs for the customers.
| Features | Benefit |
| Very low phase noise, close in and far out |
|
| Atomic clock frequency stability and accuracy |
|
| Onsite level and frequency calibration |
|
| Very low harmonic and spurious |
|
| Quad pulse signal generation and pulse sweep |
|
| Parameter | Specification |
| Frequency Range | 9 kHz to 43.5 GHz |
| Frequency Resolution | 0.001 Hz |
| Phase Offset | Adjustable in 0.1 degree steps |
| SSB phase noise | -136 dBc/Hz (typ) and -140 dBc/Hz (measured) @ 10 GHz output, 10 kHz offset |
| Internal time base stability - Aging | < ±2 x 10E-8 per year with option 0003 < ±1 x 10E-9 per year with option 0056 |
| Reference frequency input/output | 10 MHz, 100 MHz and 1.6 GHz |
| Output power | -130 dBm to +20 dBm (MG36221A standard output, with option 0002) -130 dBm to +16 dBm (MG36241A, standard output, with option 0002) -90 dBm to +6 dBm (MG36271A, standard output, with option 0002) |
| Level accuracy and flatness | +/- 1.4 dB (MG36221A/MG36241A) +/- 2.5 dB (MG36271A) |
| Harmonics (20/43.5/70 GHz) | -58 dBc (MG36221A) -55 dBc (MG36241A and MG36271A) |
| Sub Harmonics | -83 dBc (MG36221A and MG36241A) -63 dBc (MG36271A) |
| Non harmonics (20/43.5/70 GHz) | -63 dBc |
| Modulation | AM, FM, PM and Pulse |
| Pulse modulation: min pulse width | <50 ns (Unleveled) |
| Pulse modulation: Rise/Fall times | 5 ns (typical) |
| LF signal Generator waveforms | Sine, square, pulse, triangle, ramp, GN/UN noise |
| Frequency sweep modes | Step, List, Analog |
| Frequency sweep width | 9 kHz to full frequency range (step, list) 100 MHz to full frequency range (Analog) |
| Power sweep | Step and List |
| Power sweep resolution | 0.01 dB/step |
For more information: Anritsu
Documents
Datasheet:
Options
Options
MG36241A-0001 Rack Mount with Slides (Cannot be ordered with Option 11)
MG36241A-0002 Mechanical Step Attenuator, 110 dB
MG36241A-0003 Low Phase Noise and High Stability (Required for Option 13)
MG36241A-0009 Rear Panel K Connector RF Output
MG36241A-0011 Rack Mount without Slides (Shelf Mount)
MG36241A-0012 Amplitude, Frequency and Phase Modulation, Internal/External (Requires Option 27 )
MG36241A-0013 Ultra Low Phase Noise (Requires Option 3)
MG36241A-0015 High Power Output
MG36241A-0018 On-site Level and Frequency Calibration (Requires Option 66 and MA24330A/MA24350A USB power sensor, sold separately)
MG36241A-0023 Option 23, Premium Phase Noise, CW (Requires Options 3 and 13) (Available on model MG36221A only)
MG36241A-0026 Pulse Modulation, Internal/External (Requires Option 27)
MG36241A-0027 Modulation Hardware (Requires Option 12, 26, or both for functionality)
MG36241A-0029 Front Panel Modulation Input/Output Access (Requires Option 27)
MG36241A-0056 Ultra Stability Time Base (Requires Option 3 or 13)
MG36241A-0066 GNSS Atomic Clock Receiver (Requires option 3 or 13)
MG36241A-0097 Accredited Calibration
MG36241A-0098 Standard Calibration
MG36241A-0099 Premium Calibration
Video
Anritsu MG36241A Low Noise
RF/Microwave Signal Generator
Anritsu Rubidium MG36241A offers atomic clock frequency stability with an internal rubidium frequency reference option. Alternatively, customers can also get exceptional frequency stability by locking an internal oven controlled crystal oscillator (OCXO) reference to an external GNSS/GPS signal. The exceptional frequency stability makes Rubidium an ideal signal generator for Metrology and high speed clock applications.
Signal purity and frequency stability are essential distinguishing characteristics of a high frequency microwave signal generator. The Rubidium MG36241A signal generator product line is built to deliver outstanding signal purity and frequency stability across a broad frequency range of 9 kHz to 43,5 GHz, even at high output power levels. Coupled with built-in, easy-to-use, at location frequency and power calibration capability, the low noise RF/microwave signal generator Rubidium MG36241A offers exceptional overall utility and long term value for a broad range of measurement applications.
The Rubidium MG36241A standard phase noise outperforms competition by a substantial margin. Two additional tiers of phase noise performance on top of the standard phase noise performance are offered as options. The low phase noise option delivers improved close in phase noise along with better frequency stability. The ultra low phase noise option provides improved phase noise at higher offsets. For CW only applications between 2 GHz to 43,5 GHz, Rubidium provides an even lower phase noise than the ultra low phase noise option, allowing for another 3 dB improvement on a separate RF output port at the back panel.
The low noise RF/microwave signal generator Rubidium MG36241A offers atomic clock frequency stability with an internal rubidium frequency reference option. Alternatively, customers can get exceptional frequency stability by locking an internal oven controlled crystal (OCXO) reference to an external GNSS signal. The exceptional frequency stability coupled with low phase noise performance makes the Rubidium MG36241A the ideal choice for many measurement applications.
The Rubidium MG36241A modulation capabilities include amplitude, frequency, phase, and pulse modulation to address simple to complex signal simulation requirements. It offers very comprehensive pulse generation capabilities to test pulsed radar systems. It also supports Anritsu’s True-RMS and CW power sensors.
The Rubidium MG36241A is housed in a 3U chassis with a 7-inch touch screen on the front panel and traditional keypad/dial interface. The Rubidium MG36241A offers a high degree of configurability through a wide range of options to achieve optimum cost to function tradeoffs for the customers.
| Features | Benefit |
| Very low phase noise, close in and far out |
|
| Atomic clock frequency stability and accuracy |
|
| Onsite level and frequency calibration |
|
| Very low harmonic and spurious |
|
| Quad pulse signal generation and pulse sweep |
|
| Parameter | Specification |
| Frequency Range | 9 kHz to 43.5 GHz |
| Frequency Resolution | 0.001 Hz |
| Phase Offset | Adjustable in 0.1 degree steps |
| SSB phase noise | -136 dBc/Hz (typ) and -140 dBc/Hz (measured) @ 10 GHz output, 10 kHz offset |
| Internal time base stability - Aging | < ±2 x 10E-8 per year with option 0003 < ±1 x 10E-9 per year with option 0056 |
| Reference frequency input/output | 10 MHz, 100 MHz and 1.6 GHz |
| Output power | -130 dBm to +20 dBm (MG36221A standard output, with option 0002) -130 dBm to +16 dBm (MG36241A, standard output, with option 0002) -90 dBm to +6 dBm (MG36271A, standard output, with option 0002) |
| Level accuracy and flatness | +/- 1.4 dB (MG36221A/MG36241A) +/- 2.5 dB (MG36271A) |
| Harmonics (20/43.5/70 GHz) | -58 dBc (MG36221A) -55 dBc (MG36241A and MG36271A) |
| Sub Harmonics | -83 dBc (MG36221A and MG36241A) -63 dBc (MG36271A) |
| Non harmonics (20/43.5/70 GHz) | -63 dBc |
| Modulation | AM, FM, PM and Pulse |
| Pulse modulation: min pulse width | <50 ns (Unleveled) |
| Pulse modulation: Rise/Fall times | 5 ns (typical) |
| LF signal Generator waveforms | Sine, square, pulse, triangle, ramp, GN/UN noise |
| Frequency sweep modes | Step, List, Analog |
| Frequency sweep width | 9 kHz to full frequency range (step, list) 100 MHz to full frequency range (Analog) |
| Power sweep | Step and List |
| Power sweep resolution | 0.01 dB/step |
For more information: Anritsu
Datasheet:
Options
MG36241A-0001 Rack Mount with Slides (Cannot be ordered with Option 11)
MG36241A-0002 Mechanical Step Attenuator, 110 dB
MG36241A-0003 Low Phase Noise and High Stability (Required for Option 13)
MG36241A-0009 Rear Panel K Connector RF Output
MG36241A-0011 Rack Mount without Slides (Shelf Mount)
MG36241A-0012 Amplitude, Frequency and Phase Modulation, Internal/External (Requires Option 27 )
MG36241A-0013 Ultra Low Phase Noise (Requires Option 3)
MG36241A-0015 High Power Output
MG36241A-0018 On-site Level and Frequency Calibration (Requires Option 66 and MA24330A/MA24350A USB power sensor, sold separately)
MG36241A-0023 Option 23, Premium Phase Noise, CW (Requires Options 3 and 13) (Available on model MG36221A only)
MG36241A-0026 Pulse Modulation, Internal/External (Requires Option 27)
MG36241A-0027 Modulation Hardware (Requires Option 12, 26, or both for functionality)
MG36241A-0029 Front Panel Modulation Input/Output Access (Requires Option 27)
MG36241A-0056 Ultra Stability Time Base (Requires Option 3 or 13)
MG36241A-0066 GNSS Atomic Clock Receiver (Requires option 3 or 13)
MG36241A-0097 Accredited Calibration
MG36241A-0098 Standard Calibration
MG36241A-0099 Premium Calibration
