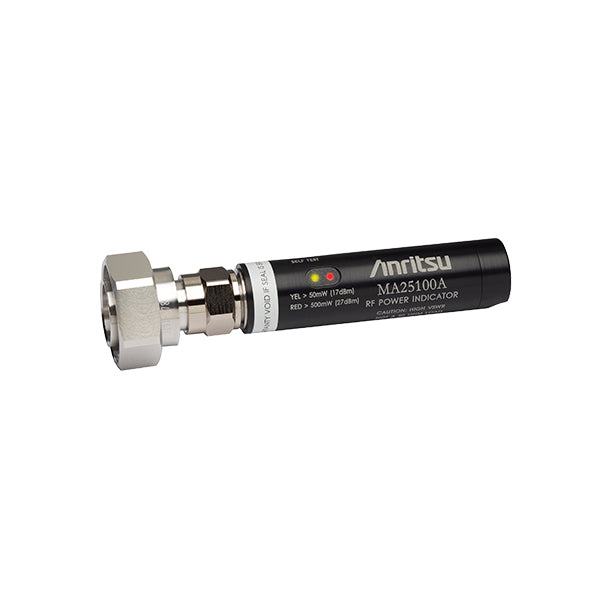

Anritsu MA25100A RF Power Indicator
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Frequency Range: 400 MHz to 4000 MHz
- Yellow LED: > +17 dBm (50 mW) ±3 dB, typical
- Red LED: > +27 dBm (500 mW) ±3 dB, typical
- Self-Test ButtonYellow: + Red LED (unit is functioning and ready)
- Maximum Input Power: +50 dBm (100 W)
- Connector: DIN 7/16 (m), 50 Ω
- Field-Replaceable Battery: ½ AA Lithium, 3.6 V (Type ER14252)
- Weight: 170 g (6 oz)
%20%C2%B13%20dB,%20typical%0A%20%09%0ARed%20LED:%20%26gt;%20+27%20dBm%20(500%20mW)%20%C2%B13%20dB,%20typical%0A%20%09%0ASelf-Test%20ButtonYellow:%C2%A0+%20Red%20LED%20(unit%20is%20functionin...
){kind=link}
Discover the possibilities
More information
Description
Anritsu MA25100A RF Power Indicator
Use the Anritsu MA25100A RF Power Indicator to determine if a connector is "live" with RF power that could damage sensitive measuring equipment from 400 MHz to 4000 MHz.Mate the MA25100A to the connector in question and it will indicate the presence of high-level RF: Yellow LED if RF > +17 dBm (50 mW) or Red LED if RF > +27 dBm (500 mW).
The MA25100A can withstand RF power levels up to +50 dBm (100 W) from a 50 Ω source. The MA25100A has a very high VSWR and should not be used as a 50 Ω termination.
Specifications
| Description | Value |
| Frequency Range | 400 MHz to 4000 MHz |
| Yellow LED | > +17 dBm (50 mW) ±3 dB, typical |
| Red LED | > +27 dBm (500 mW) ±3 dB, typical |
| Self-Test Button | Yellow + Red LED (unit is functioning and ready) |
| Maximum Input Power | +50 dBm (100 W) |
| Connector | DIN 7/16 (m), 50 Ω |
| Field-Replaceable Battery | ½ AA Lithium, 3.6 V (Type ER14252) |
| Weight | 170 g (6 oz) |
For more information: Anritsu
