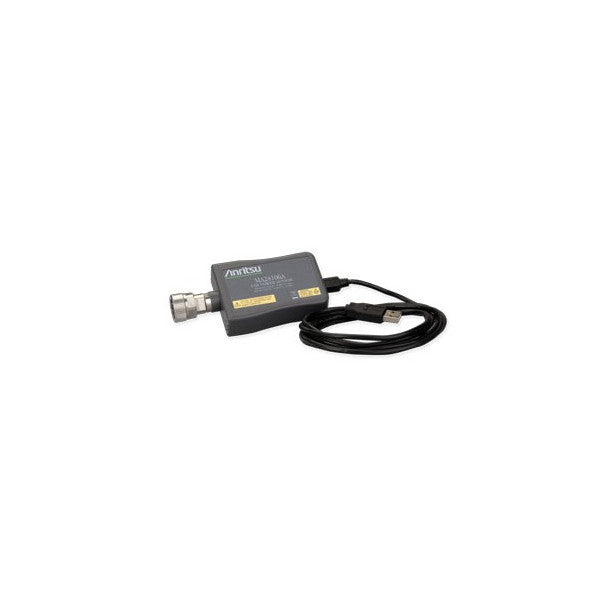

Anritsu MA24106A Power Sensor
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
True-RMS USB Power Sensor, 50 MHz - 6 GHz (Includes 2000-1566-R Cable)
){kind=link}
Discover the possibilities
More information
Description
Anritsu MA24106A Power Sensor
The MA24106A power sensor is a USB power sensor that eliminates the need of a traditional power meter. It is a highly accurate, standalone instrument that communicates with a PC via USB. The power measurement capability of MA24106A is intended to mimic that of a traditional thermal (thermo-electric) power sensor with a wider dynamic range.Therefore, it is ideal for measuring average power of CW, modulated RF waveforms such as 3G, 4G, OFDM, and multi-tone signals. It measures true RMS power regardless of the type of the input signal. The presence of a micro-controller along with signal conditioning circuitry, ADC, and power supply in the sensor makes it a complete miniature power meter. The data display, acquisition occurs in the PC. The Anritsu Power Meter application for personal computers running Microsoft Windows can be used to control and operate the sensor. It is available standard with the product. The MA24106A is compatible with the MS272xB, MT8222A, MS202xA, MS203xA, and MS271xB instruments.Presence of signal channel/analog signal acquisition HW and on-board (frequency as well as temperature) corrections eliminates the need for a reference calibration, simplifying the measurement process and reduction of test time in production.
Documents
Anritsu MA24106A Power Sensor
Anritsu MA24106A DatasheetOptions
Video
Anritsu MA24106A Power Sensor
The MA24106A power sensor is a USB power sensor that eliminates the need of a traditional power meter. It is a highly accurate, standalone instrument that communicates with a PC via USB. The power measurement capability of MA24106A is intended to mimic that of a traditional thermal (thermo-electric) power sensor with a wider dynamic range.Therefore, it is ideal for measuring average power of CW, modulated RF waveforms such as 3G, 4G, OFDM, and multi-tone signals. It measures true RMS power regardless of the type of the input signal. The presence of a micro-controller along with signal conditioning circuitry, ADC, and power supply in the sensor makes it a complete miniature power meter. The data display, acquisition occurs in the PC. The Anritsu Power Meter application for personal computers running Microsoft Windows can be used to control and operate the sensor. It is available standard with the product. The MA24106A is compatible with the MS272xB, MT8222A, MS202xA, MS203xA, and MS271xB instruments.Presence of signal channel/analog signal acquisition HW and on-board (frequency as well as temperature) corrections eliminates the need for a reference calibration, simplifying the measurement process and reduction of test time in production.
