Aim-TTi TGP3121 Pulse and Universal Generator
13.487,50 incl. VAT
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- One channel
- Pulse waveforms from 1mHz to 25MHz, minimum rise time 5ns [8ns]
- Pulse period, width and delay resolutions of 100ps or 11 digits
- Independently variable rise and fall times from 5ns [8ns] to 800 seconds
- High drive capability output can provide 20V pk-pk into 50 Ohm (unmatched)
- Full Noise generator to 25MHz with selectable crest factor and user defined distribution
- Full Arbitrary/Function generator with 16 waveform types
- Sine waves up to 25MHz
- Arbitrary waveforms at 800MS/s sampling rate and 16-bit vertical resolution
- Extensive internal/external modulation of all waveform types
- Linear and logarithmic sweeps of all waveform types
- Front panel mounted USB Flash drive interface

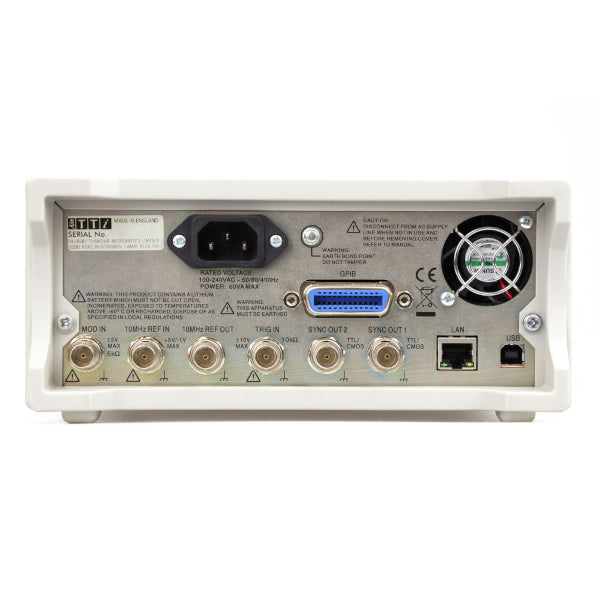

- GPIB (option), USB and LXI compliant LAN interfaces
Discover the possibilities
More information
Description

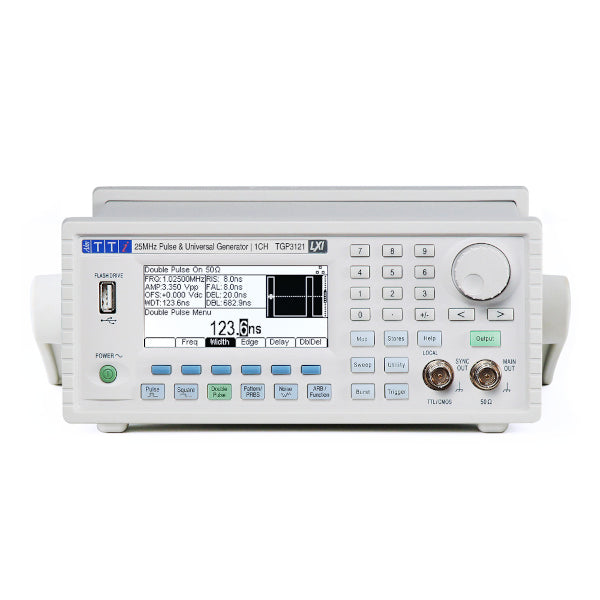

Aim-TTi TGP3121 Pulse and Universal Generator
The Aim-TTi TGP3121 is a pulse and Universal Generator 25MHz, single channelTrue Pulse Generators
The TGP3100 Series are true pulse generators using all digital techniques. They can replicate the capabilities of traditional pulse generators whilst adding many additional facilities such as pulse modulations.Unlike DDS based function generators the TGP3100 Series can generate pulses up to 50MHz with very low jitter and high resolution of width and delay (100ps). They can also operate in an asynchronously triggered mode with low jitter.
A high drive capability output stage enables up to 20 volts pk-pk to be driven into a 50 Ohm load.
- with Universal Waveform capabilities
As well as operating as pulse generators, the instruments can act as high performance noise generators and as function/arbitrary generators - making them truly universal waveform generators.Noise Generator
As a noise generator, the TGP3100 series offers fully variable noise bandwidth from 1mHz up to 25MHz.Noise amplitude distribution can be Gaussian (with variable crest factor) or fully user defined.
Function Generator
The TGP3100 Series can operate as a high performance function generator at up to 50MHz.Sixteen standard waveforms include sine, square, triangle, ramps, sinc, cardiac, plus logarithmic, exponential and gaussian shapes.
Arbitrary Generator
With an 800MS/s sample clock, the TGP3100 series can perform as high speed arbitrary generators with 16-bit vertical resolution and up to 4096 waveform points.For more information: Aim-TTi
