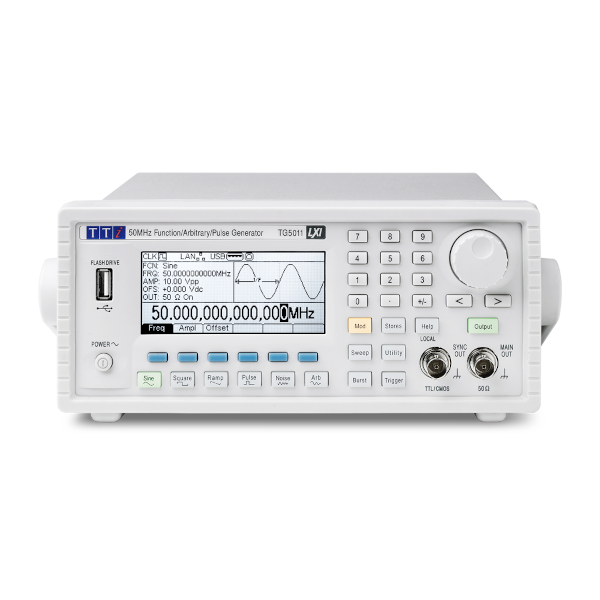

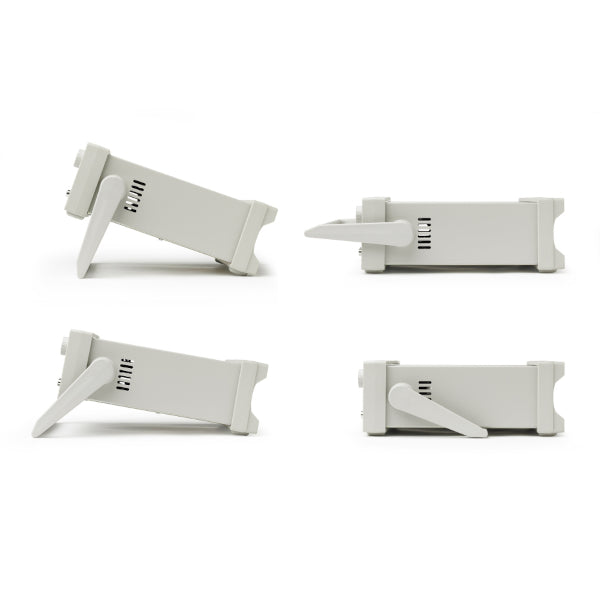

Aim-TTi TG5012A Function/Pulse/Arbitrary Generator
10.525,00 incl. VAT
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Two channels
- 0.001mHz to 50MHz range; 14 digits or 1uHz resolution.
- Standard waveforms include sine, square, ramp, pulse, sin(x)/x, noise, exponential, logarithmic and PRBS.
- True pulse generator with variable delay and variable rise/fall.
- Arbitrary waveforms of up to 128K points at up to 125MS/s.
- Large graphic LCD with simultaneous text and waveform display.
- Comprehensive internal and external digital modulations including AM, FM, PM, PWM, FSK, BSPK, Sum and PRBS.
- 20mV to 20V pk-pk output from 50Ohms ; plus multi function aux. out.
- Programmable via USB and LAN (LXI) interfaces; GPIB optional.
/x,%20noise,%20exponential,%20logarithmic%20and%20PRBS.%0A%20%09True%20pulse%20gen...
){kind=link}
Discover the possibilities
More information
Description
Aim-TTi TG5012A Function/Pulse/Arbitrary Generator
The Aim-TTi TG5012A is a high performance function/arbitrary/pulse generator with a 50 MHz frequency range and two channels.Exceptional frequency precision
The frequency of these waveforms can be set with up to 14 digits or one micro hertz of resolution. The DDS based frequency generation system uses a TCXO timebase oscillator with a stability of 1ppm.Waveform quality
The TG5012A generate high purity sine waves with low harmonic distortion and low phase noise. Square waves have a rise time of below 8ns (13ns on TG251xA) and low overshoot. Variable symmetry can be used up to 25MHz.
Triangle and ramp
High quality triangle and variable symmetry ramp waveforms are available up to 1MHz (TG501xA) or 500kHz (TG251xA).These waveforms are also available at higher frequencies via the arbitrary function but without symmetry adjustment and with reduced waveform quality as the frequency increases.
VLF generation
The high resolution of the DDS system means that very low frequencies can be set. For example, a frequency of around 1mHz could be set with a resolution of 0.1% and a stability of 1ppm.
Full Pulse Generator capabilities
Both models incorporate a pulse generator mode which provides wide range pulse width and delay independent of period. Rise and fall times (edge speeds) are also fully variable.
Wide-range repetition rate
On the TG501xA, the pulse period can be set between 80ns and 2000 secs. (0.5mHz to 12.5MHz) with a resolution of 14 digits or 1µHz. On the TG251xA, the minimum pulse period is 160ns (6.25MHz).Fully variable pulse width and delay
Pulse width and pulse delay can be independently set to a resolution of 10ns. Minimum pulse width is 20ns and duty cycles can be as low as one in two billion.Independently variable rise and fall
The generators offer very fast edge speeds of better than 8ns on the TG501xA or 13ns on the TG251xA, but the edges can be slowed down to simulate slower pulses.Rise and fall times are independently variable in the range 5ns to 40us (10ns to 40µs on the TG251xA), or can be linked so that both edge speeds are the same.
Trigger, burst and gate
As with all other waveforms, pulses can be triggered from an external trigger input (or a manual trigger, the internal trigger generator or a Bus command).Burst mode creates a burst of between one and a million pulses in response to each active edge of the trigger.
Gated cause pulses to be generated only when the gate signal is true. The gate source can be external or internal exactly as the trigger signal.
Arbitrary Waveforms
Both generators offer DDS generated arbitrary waveforms capability. A number of standard waveforms are included, and up to four user defined arbitrary waveforms can be stored in the instrument at any one time14 bits, 128k words, 125MS/s
Waveforms have a vertical resolution of 14 bits (16,384 amplitude levels). Waveforms can be created using between 2 and 131,072 points (128k).The sampling rate is 125MHz and DDS techniques are used to provide any repetition rate between 1µHz and 10MHz (TG501xA) or 6MHz (TG251xA) with up to 14 digits of frequency resolution.
Internal and external waveform storage
Up to four user defined waveforms totalling up to 256k words can be stored within the permanent internal memory of the instrument.However, a front mounted USB port enables external Flash memory storage of up to 1000 waveforms of any size.
This memory stick also provides a quick and convenient method for transferring waveform files to and from a PC. It can also be used for storing instrument set-ups.
Pre-built complex waveforms
Commonly used complex waveforms are provided both built-in to the instrument and for loading into the user defined waveform space.These include sin(x)/x, exponential rise and fall, logarithmic rise and fall, gaussian, lorentz, haversine and cardiac waveforms.
Waveform creation & editing
Arbitrary waveforms can be created and edited using the simple tools built into the instrument. However, complex waveforms require an external PC based editor. Both instruments are supplied with Waveform Manager Plus for Windows® which provides the most comprehensive set of waveform tools available including a mathematical expression editor, freehand drawing, waveform libraries, and import of waveforms using the Clip Board.For more information: Aim-TTi
Documents
Aim-TTi TG5012A Function/Pulse/Arbitrary Generator
AIM-TTi TG251xA + TG501xA DatasheetOptions
