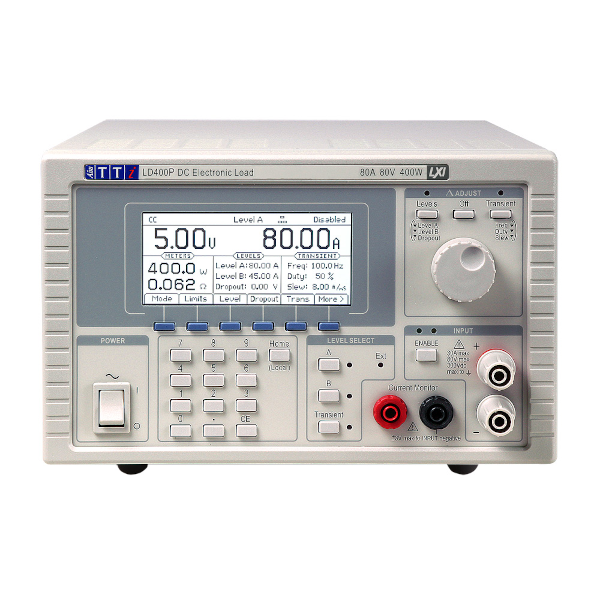

Aim-TTi LD400P DC 360W 80A 80V Electronic Load
14.737,50 incl. VAT
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Versatile solution for testing dc power sources
- Constant current, resistance, conductance, voltage and power modes
- Wide voltage and current range, 0 to 80V and 0 to 80A
- 400 watts continuous dissipation at 28°C (360W at 40°C)
- 600 watts short-term dissipation (up to 60 seconds)
- Low minimum operating voltage of <1V at 40A
- High resolution and accuracy for level setting
- Built-in transient generator with variable slew
- Current monitor output for waveform viewing
- Variable drop-out voltage for battery testing
- High resolution backlit graphic LCD with soft key control
- Analogue remote control of levels and TTL control of on/off and transient switching
- Front and rear input terminals (front terminals 30A max.)
- Full bus control via USB, RS232 and LXI compliant LAN interfaces (LD400P)
- GPIB option (LD400P only)
Discover the possibilities
More information
Description
Aim-TTi LD400P DC 360W 80A 80V Electronic Load
The Aim-TTi LD400P adds full bus remote control via USB, RS-232, GPIB and LAN (Ethernet) interfaces.Remote control for system applications
The LD400P incorporates USB, RS232 and LXI compliant LAN interfaces with GPIB available as an option. These provide full remote control and read-back capabilities and are supported by an IVI driver for high level language applications.LOW MINIMUM OPERATING VOLTAGE
The Aim-TTi LD400 can operate at voltages below 500mV for currents up to 10 amps. At higher currents the fixed minimum resistance (typically better than 25mΩ) gradually raises the minimum operating voltage, but it remains below 1 volt up to 40 amps and below 2 volts up to 80 amps. This low operating voltage allows it to be used for many low voltage applications for which other electronic loads are unsuitable.600 WATTS INTERMITTENT POWER
The LD400 can operate at power levels up to 600 watts for periods of up to 1 minute. Short term loading can be sufficient for many testing applications and significantly extends the usefulness of the LD400.COMPACT ELECTRONIC DC LOADS
The LD series features electronic loads which are suitable for testing and characterising a wide variety of dc power sources. They can be used to investigate the behavior of many different types of power source such as PFCs, batteries and solar cells, as well as electronic power supply units. The wide voltage/current range, multiple operating modes and built-in transient generator give them versatility to offer test solutions from the design laboratory through to the component test areaHIGH RESOLUTION SETTING/MEASUREMENT
The two operating levels for each operating mode are settable to high precision. Levels are displayed using four digit meters which provide resolution down to 1mA, 1mV and 1mW. The meters have an accuracy of 0.1% for voltage and 0.2% for current.ADJUSTABLE VOLTAGE DROPOUT
Some power sources, such as rechargeable batteries, can be damaged if their output voltage falls below a certain level. The LD series provides automatic protection by incorporating fully variable voltage dropout. If the voltage applied to the load falls below a preset level, the load current is rapidly reduced to zero.For more information: Aim-TTi LD400 Series
