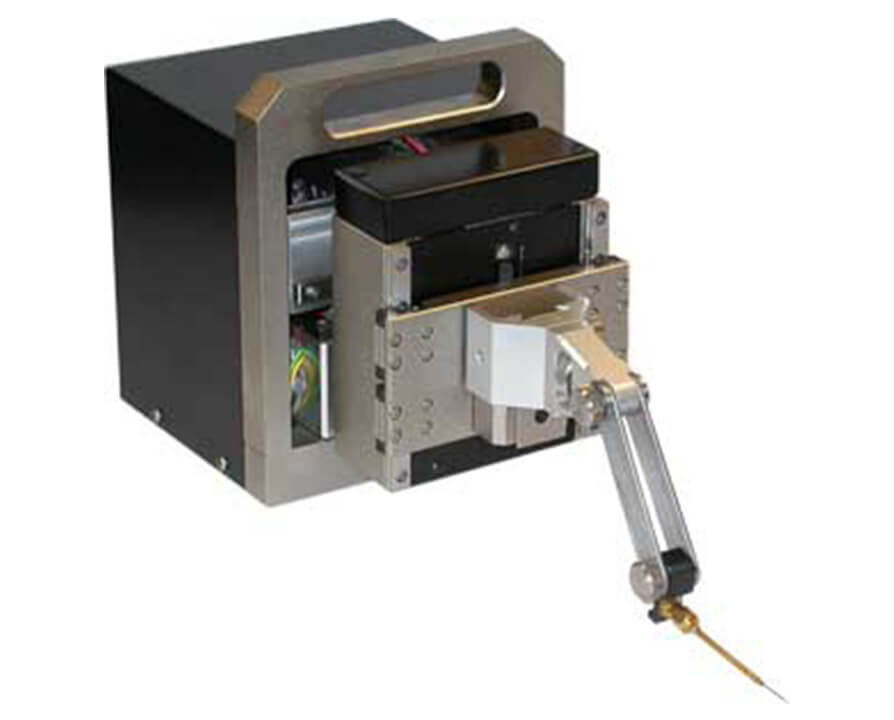

Wentworth Pegasus Sub-Micron Automated Manipulator
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Fully programmable
- Sub-micron resolution
- Highly repeatable and accurate positioning
- Powerful, intuitive control and monitoring software
- Configurable with high voltage/high current probing accessories
Discover the possibilities
More information
Description
Wentworth Pegasus Sub-Micron Automated Manipulator
PEGASUS™ SAM
SUB-MICRON AUTOMATED MANIPULATOR
Pegasus™ SAM is a fully programmable, automated manipulator for the Wentworth Pegasus™ Series of 200 mm and 300 mm probers, delivering sub-micron resolution for use in the most demanding test applications.
The Pegasus™ SAM manipulator can be controlled via keypad or with optional LabMaster™ control and monitoring software. LabMaster™ drives all Pegasus™ SAM functions via a user-friendly graphic user interface, providing centralized test setup and control.
APPLICATIONS
A wide range of articulated front ends offers maximum adjustment capability to accurately position the needle holder, of paramount importance when probing inside packaged devices. In addition, Pegasus™ SAM is fully programmable in X, Y and Z axes to successfully resolve alignment when probing packaged devices and offers 30 mm of travel in X, Y and Z axes.
Featuring a vacuum hold down, the SAM micromanipulator provides a stable probing platform with a quick-release function for fast, easy repositioning of the manipulator unit.
Documents
Wentworth Pegasus Sub-Micron Automated Manipulator
Wentworth Pegasus Sub-Micron Automated Manipulator DatasheetOptions
Video
Wentworth Pegasus Sub-Micron Automated Manipulator
PEGASUS™ SAM
SUB-MICRON AUTOMATED MANIPULATOR
Pegasus™ SAM is a fully programmable, automated manipulator for the Wentworth Pegasus™ Series of 200 mm and 300 mm probers, delivering sub-micron resolution for use in the most demanding test applications.
The Pegasus™ SAM manipulator can be controlled via keypad or with optional LabMaster™ control and monitoring software. LabMaster™ drives all Pegasus™ SAM functions via a user-friendly graphic user interface, providing centralized test setup and control.
APPLICATIONS
A wide range of articulated front ends offers maximum adjustment capability to accurately position the needle holder, of paramount importance when probing inside packaged devices. In addition, Pegasus™ SAM is fully programmable in X, Y and Z axes to successfully resolve alignment when probing packaged devices and offers 30 mm of travel in X, Y and Z axes.
Featuring a vacuum hold down, the SAM micromanipulator provides a stable probing platform with a quick-release function for fast, easy repositioning of the manipulator unit.
