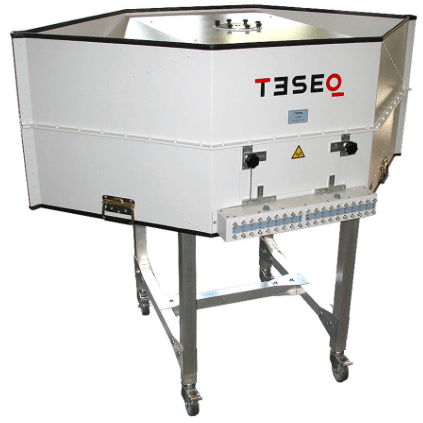

TESEQ D-TEM Cell for Emissions and Immunity Testing
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- TEM cell meets ISO 11452-3 and CISPR 25
- EMC tests for vehicle components immunity to RF fields
- 300 mm septum height
- Up to 1 kW input power
- Access for field probes from the top of the cell
Discover the possibilities
More information
Description
TESEQ D-TEM Cell for Emissions and Immunity Testing
The transversal electromagnetic mode which can developed in the DTEM cell, provides the opportunity for doing EMC testing inside the cell. In principle, the DTEM cell is a coaxial line expanding rectangularly and with planar septum. The geometrical dimensions having a line impedance of Z = 50 Ω. At the end, the line is matched by a 50 Ω termination. Typical for this cell is the low power request for high field strength values.
The useable test volume is in relation to the application and required accuracy. Different EUT sizes may be possible in general. The area with the homogeneous field distribution is always in the middle of the upper and lower half of the DTEM.
| Parameter | Value |
|---|---|
| Height of the septum | 300 mm |
| Frequency range | DC to 400 MHz |
| Max. input power | 1 kW |
| Impedance (RF ports) | 50 Ω |
| Connector type (RF ports) | N (female) |
