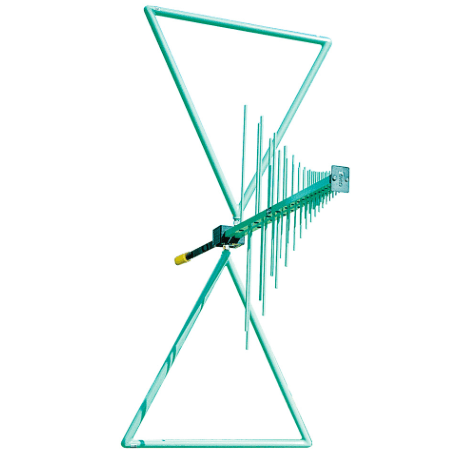

TESEQ CBL 6112D BiLog® Antenna 30 MHz to 2 GHz
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Ideal for compliance emission testing
- VHF radio approval applications
- Immunity testing to 300 W CW
- Excellent balance < 1dB
- No rotational offsets
- Easily transportable
Discover the possibilities
More information
Description
TESEQ CBL 6112D BiLog® Antenna 30 MHz to 2 GHz
Three Antennas In One
The CBL 6112 operates over the unprecedented, wide range 30 MHz to 2 GHz. It effectively combines the performance of three standard EMC antennas, the Biconical, the Log Periodic and the Waveguide Horn. Considerable savings in the order of 40 - 50% can be made in expensive test time, plus the added benefit of improved repeatability and reliability by not having to laboriously disconnect and reconnect antennas during testing.
| Parameter | Value |
|---|---|
| Frequency range | 30 MHz to 2 GHz |
| Typical gain | 6 dB (200 MHz to 700 MHz), 8 dB (700 MHz to 2000 MHz) |
| Impedance (nominal) | 50 Ω |
| Maximum continuous power | 300 W (80 - 2000 MHz) |
| Connector | N type female |
