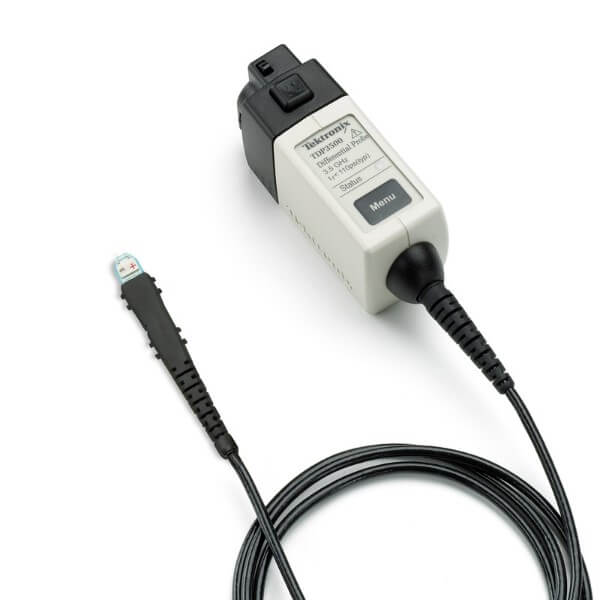

Tektronix TDP3500 LV Diff. Probe
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Bandwidth - 3.5 GHz
- Input Impedance - 100 kΩ / ≤0.3 pF
- Attenuation - 5X
- Maximum Voltage - ±15 V (DC + pk AC)
%0A
){kind=link}
Discover the possibilities
More information
Description
Differential signaling used in high speed serial standards requires very accurate characterization. The industry-leading bandwidth and signal fidelity found in a Tektronix low voltage differential oscilloscope probe ensures that you see every possible detail. Tektronix offers TriMode™ architecture which streamlines measurement acquisition by enabling you to make differential, single-ended, and common mode measurements with a single connection!
Differential active probes provide truer signal reproduction and fidelity for high-frequency measurements. With ultra-low input capacitance and versatile device-under-test connection capabilities, the TDP1500, TDP3500 and TDP4000 Differential-ended Active probes provide excellent high-speed electrical and mechanical performance required for today's digital system designs.
Key performance specifications
- 4 GHz (TDP4000), 3.5 GHz (TDP3500) and 1.5 GHz (TDP1500) probe bandwidth
- ≤1 pF (TDP1500) and ≤0.3 pF (TDP3500/TDP4000) differential input capacitance
- 200 kΩ (TDP1500) and 100 kΩ (TDP3500/TDP4000) differential input resistance
- ±25 V (TDP1500) and ±15 V (TDP3500/TDP4000) DC + pk AC input voltage (non-destruct)
- >60 dB at 1 MHz and >25 dB at 1 GHz CMRR
Key features
- Outstanding electrical performance
- 4 GHz, 3.5 GHz and 1.5 GHz bandwidth models - accurate measurements for serial and digital applications
- Excellent common mode rejection – reduces measurement errors in higher common environments
- Low capacitive and resistive loading – maintains signal fidelity and reduces DC biasing interactions
- Versatile mechanical performance
- Compact probe head size for probing small geometry circuit elements
- DUT attachment accessories enable connection to fine-spaced SMDs
- Robust design for reliability
- Easy to use
- Connects directly to oscilloscopes with the TekVPI™ probe interface
- Provides automatic units scaling and readout on the oscilloscopes display
- Easy access to probe comp box controls or oscilloscope probe menu display for probe status, setup control, and diagnostic information
- Integrated Scope/Probe system
- Direct connection to and powered from the TekVPI™ oscilloscope interface (Connects directly to TekVPI scopes without the need of an external power supply, like many
- competitors require)
- Single-button oscilloscope probe menu access
- Setup and control from probe comp box or oscilloscope user interface
- AutoZero - zeros out output offset
- Remote GPIB/USB probe control through the oscilloscope
Applications
- Design, validation, debugging, and characterization of common high-speed serial bus designs:
I 2C
- CAN/LIN
- SPI
- Serial ATA
- Ethernet (GbE)
- USB 2.0
- FIreWire (1394b)
- Signal integrity, jitter, and timing analysis
- Manufacturing, engineering, and test
For more information: Tektronix
