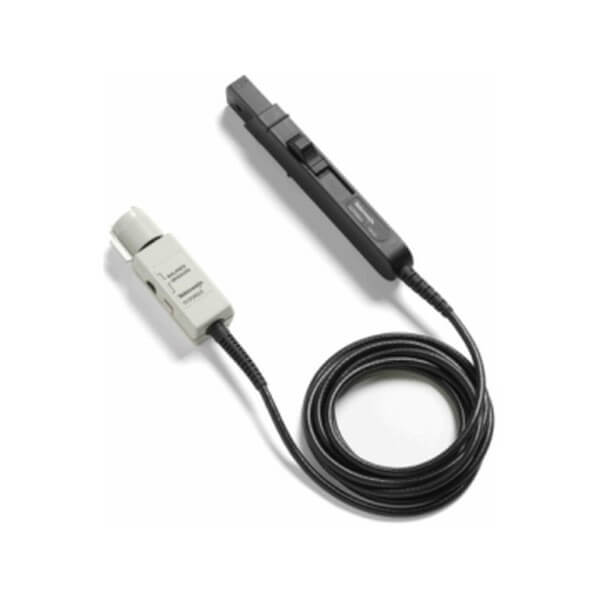

Tektronix TCP202A Current Probe
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Maximum Current -
DC: 15 A
Max RMS: 15 A
Peak Current: 50 A
- Minimum Current - 10 mA
- Bandwidth - 50 MHz
- Rise Time - < 7 ns
Discover the possibilities
More information
Description
The TCP0020, TCP2020, and TCP202A are a family of high-performance, easy-to-use AC/DC current probes designed for use with a variety of oscilloscopes. The TCP0020 is designed for direct connection to oscilloscopes with the TekVPI™ probe interface and the TCP202A is designed for direct connection to oscilloscopes with the TekProbe™ probe interface. The TCP2020 is designed for use with any instrument with BNC inputs and >100 kΩ input termination.
These AC/DC current probes provide sufficient performance to support 50 MHz measurement system bandwidth. The TCP0020 and TCP2020 provide a maximum 20 ARMS measurement range, while the TCP202A provides a maximum 15 ADC + Peak AC measurement range. These probes also provide excellent accuracy to current levels as low as 10 mA, important for meeting today’s challenging current measurement needs.
Features & Benefits:
- Easy-to-use and accurate AC/DC current measurements
- DC to >50 MHz bandwidth
- Core jaw diameter of 5 mm (0.2 in.)
- Accurately measures current levels as low as 10 mA per division
- High accuracy with typically less than 1% DC gain error
- Split-core construction allows easy circuit connection
- Low noise and DC drift
- 15 ADC + Peak AC maximum current capability
- 50 A peak pulse current capability
- Connects directly to oscilloscopes with the TekProbe™ interface
- Provides automatic units scaling and readout on the oscilloscope display
- Degauss button and thumbwheel for DC offset adjustment
Applications:
- Power supplies
- Semiconductor devices
- Electronic ballasts
- Industrial/consumer electronics
- Mobile communications
- Motor drives
- Transportation systems
For more information: Tektronix
