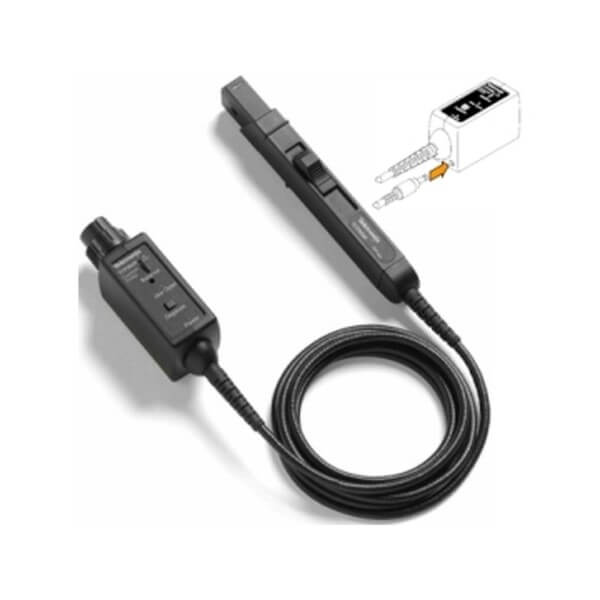

Tektronix TCP2020 Current Probe

Sale price0,00 kr Price on quotation

Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk

  • Maximum Current - 20 A RMS, 100 A Peak Pulse
  • Minimum Current - 10 mA
  • Bandwidth - 50 MHz
  • Rise Time - ≤7 ns

Discover the possibilities

More information

The TCP0020, TCP2020, and TCP202A are a family of high-performance, easy-to-use AC/DC current probes designed for use with a variety of oscilloscopes. The TCP0020 is designed for direct connection to oscilloscopes with the TekVPI™ probe interface and the TCP202A is designed for direct connection to oscilloscopes with the TekProbe™ probe interface. The TCP2020 is designed for use with any instrument with BNC inputs and >100 kΩ input termination.

These AC/DC current probes provide sufficient performance to support 50 MHz measurement system bandwidth. The TCP0020 and TCP2020 provide a maximum 20 ARMS measurement range, while the TCP202A provides a maximum 15 ADC + Peak AC measurement range. These probes also provide excellent accuracy to current levels as low as 10 mA, important for meeting today’s challenging current measurement needs.



Features & Benefits:

  • Easy-to-use and accurate AC/DC current measurements
  • DC to >50 MHz bandwidth
  • Core jaw diameter of 5 mm (0.2 in.)
  • Accurately measures current levels as low as 10 mA per division
  • High accuracy with typically less than 1% DC gain error
  • Split-core construction allows easy circuit connection
  • Low noise and DC drift
  • 20 ARMS maximum current capability

  • 100 A peak pulse current capability

  • 10 mA/mV sensitivity

  • BNC output connects to most oscilloscopes and other measurement equipment (>100 kΩ termination required)

  • Degauss button and thumbwheel for DC offset adjustment

  • Powered by an AC adapter




  • Power supplies
  • Semiconductor devices
  • Electronic ballasts
  • Industrial/consumer electronics
  • Mobile communications
  • Motor drives
  • Transportation systems



For more information: Tektronix
