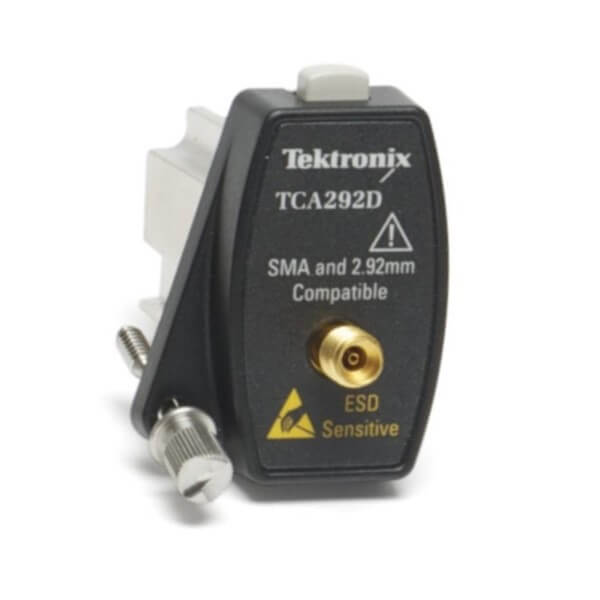

Tektronix TCA292D TekConnect-to-2.92 mm Adapter (≥33 GHz)
){kind=link}
Discover the possibilities
More information
Description
Tektronix TCA292D TekConnect-to-2.92 mm
TCA-292D and TCA-292MM Adapters (50 Ω only)These high-speed 2.92 mm-type adapters allow a more direct connection to the signal under test requiring a 2.92 mm connection without losing performance by adding other external conversion adapters. The locking screw must be used to ensure full bandwidth performance. The 2.92 mm connector is more robust and performs at higher frequencies than an SMA connector. The 2.92 mm connector is compatible with SMA connectors, but the electrical performance will be limited to the bandwidth of the SMA connector.
The TCA-292MM Adapter is a standard accessory with MSO/DPO 70000C series oscilloscopes and the TCA292D Adapter is a standard accessory with MSO/DPO 70000DX series oscilloscopes.
Documents
Tektronix TCA292D TekConnect-to-2.92 mm
Tektronix TCA292D datasheetOptions
Video
Tektronix TCA292D TekConnect-to-2.92 mm
TCA-292D and TCA-292MM Adapters (50 Ω only)These high-speed 2.92 mm-type adapters allow a more direct connection to the signal under test requiring a 2.92 mm connection without losing performance by adding other external conversion adapters. The locking screw must be used to ensure full bandwidth performance. The 2.92 mm connector is more robust and performs at higher frequencies than an SMA connector. The 2.92 mm connector is compatible with SMA connectors, but the electrical performance will be limited to the bandwidth of the SMA connector.
The TCA-292MM Adapter is a standard accessory with MSO/DPO 70000C series oscilloscopes and the TCA292D Adapter is a standard accessory with MSO/DPO 70000DX series oscilloscopes.
