Tektronix SIGNALVU-PC-SVE Vector signal analysis software

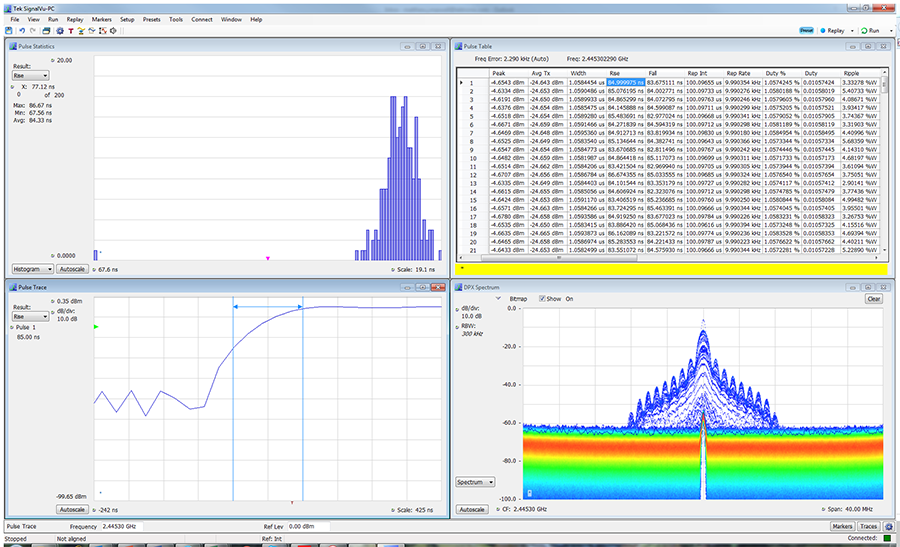

 SVP: Advanced Signal Analysis(including pulse measurements)

• Automatically characterize pulses with up to 27 different vector and scalar measurements
• Pulse table presents results of all measurements
• Statistical measurements like Histograms to display pulse measurements over many pulses
• Individual pulse traces available for all of the measurements
• Save results for further analysis

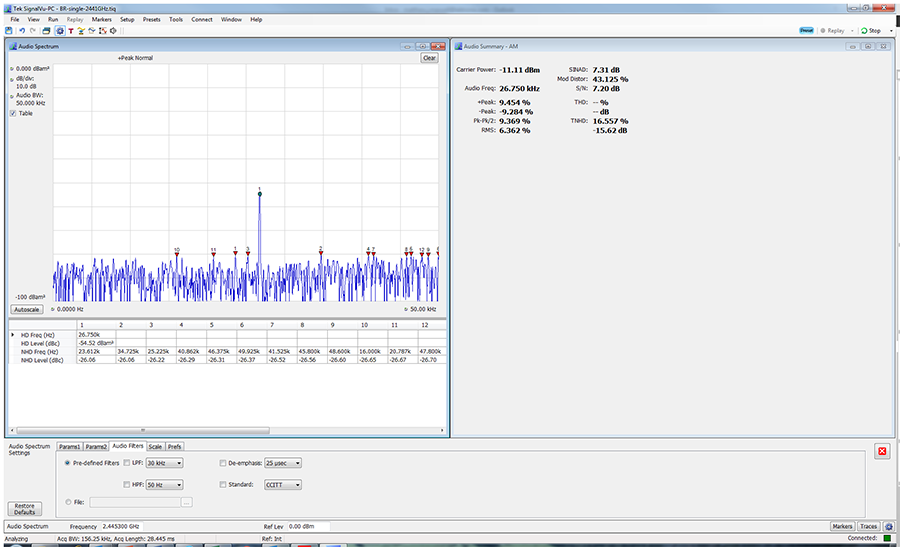

 SVA: AM/FM/PM/Direct Audio Analysis

• Audio measurements for AM/FM/PM signals
• SINAD, Total Harmonic Distortion, Noise, Hum
• High pass filters, low pass filters, deemphasize filters both preset and user settable.

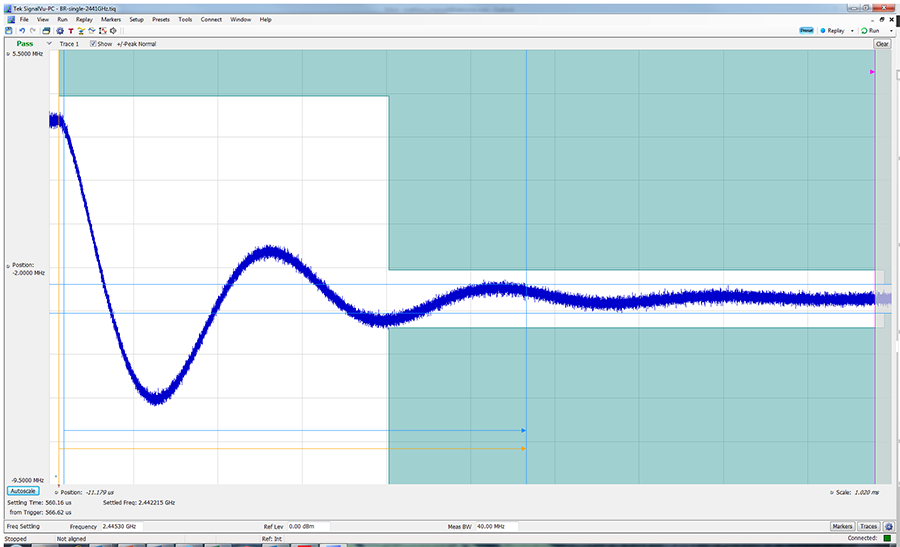

 SVT: Settling Time (Frequency and Phase) Measurement

• Measure time for signal to settle to within a frequency or phase range
• Frequency and settling time for devices like Phase Locked Loops
• User definable mask and definition of settling times from external trigger or internal trigger on analyzer

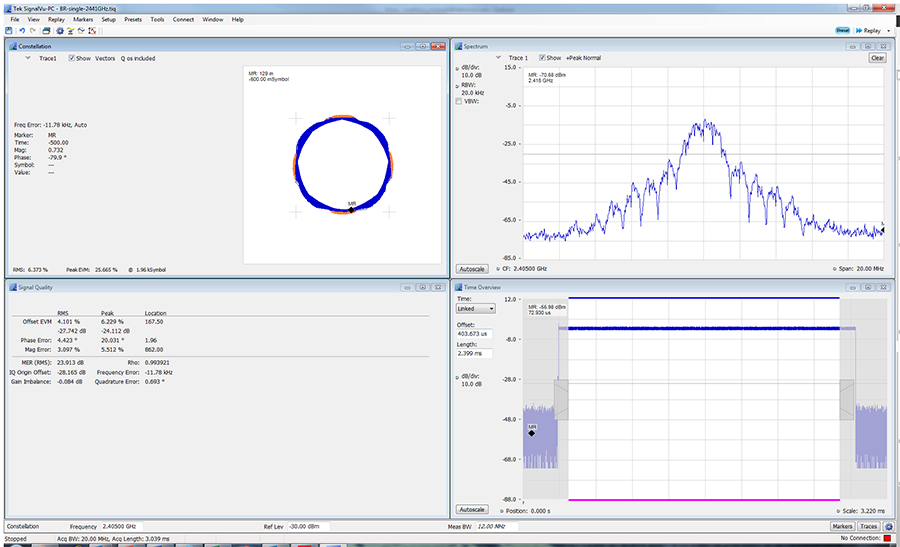

 SVM: General Purpose Modulation Analysis

• Includes Error Vector Magnitude, Modulation Error Rate, Constellation Diagrams, and more measurements
• Support for 27 different modulation schemes, including 256 QAM, CPM, nFSK, and others
• Sync word search to lock on constellations, Burst Mode to detect and analyze modulation quality on bursted signals
• Useful for measuring modulation quality of Zigbee, Bluetooth EDR, TETRA, and DVB-S devices

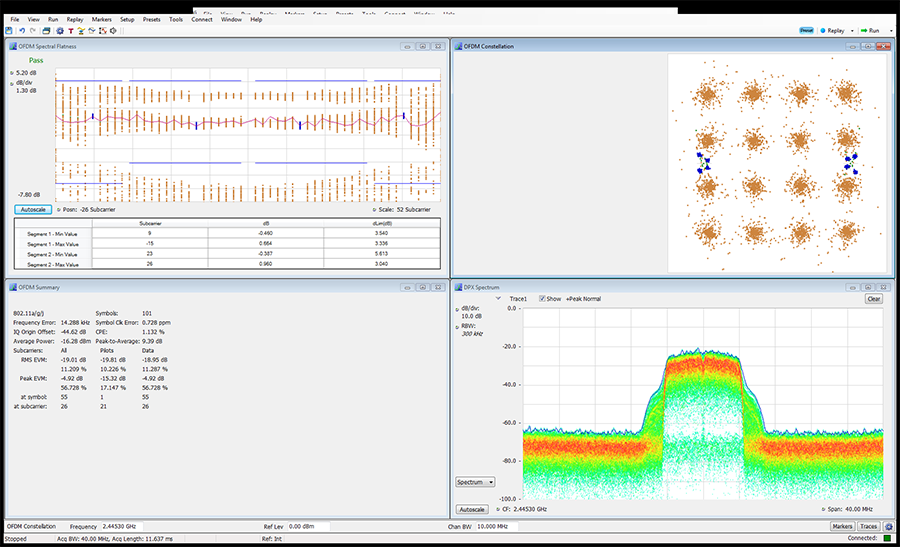

 SVO: General Purpose Modulation Analysis

• Allows OFDM analysis for signals that are close in format to 802.11a or 802.16.d (fixed WiMAX) signals

CON: SignalVu-PC live link to the MDO4000B/C series

• Control the MDO4000B/C Mixed Domain Oscilloscope with a separate PC running any or all of the SignalVu-PC options

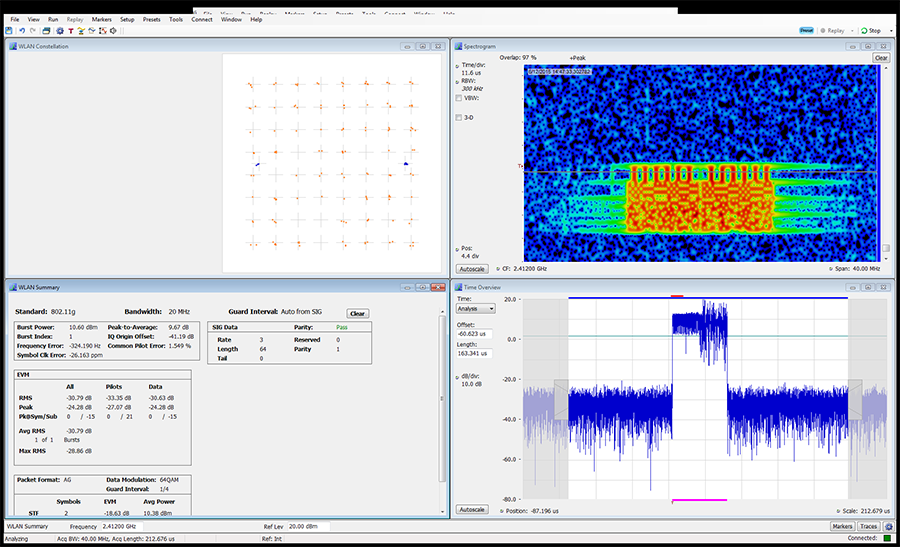

 SV23: WLAN 802.11a/b/g/j/p measurement application

• Physical layer RF transmitter measurements as defined in the IEEE standards for 802.11a/b/g/j/p Wireless LAN
• Summary display with key measurements reported

 SV24: WLAN 802.11n measurement application (requires application SV23)

• Physical layer RF transmitter measurements as defined in the IEEE standards for SISO 802.11n Wireless LAN
• Summary display with key measurements reported

 SV25: WLAN 802.11ac measurement application (requires application SV24)

• Physical layer RF transmitter measurements as defined in the IEEE standards for SISO 802.11ac Wireless LAN for up to 20, 40, 80, and 160 MHz measurements
• Summary display with key measurements reported

SV2C: Bundle of Live Link to MDO4000B/C and WLAN 802.11a/b/g/j/p/n/ac measurements (includes applications CON, SV23, SV24 and SV25)

See Applications SV23, SV24, SV25

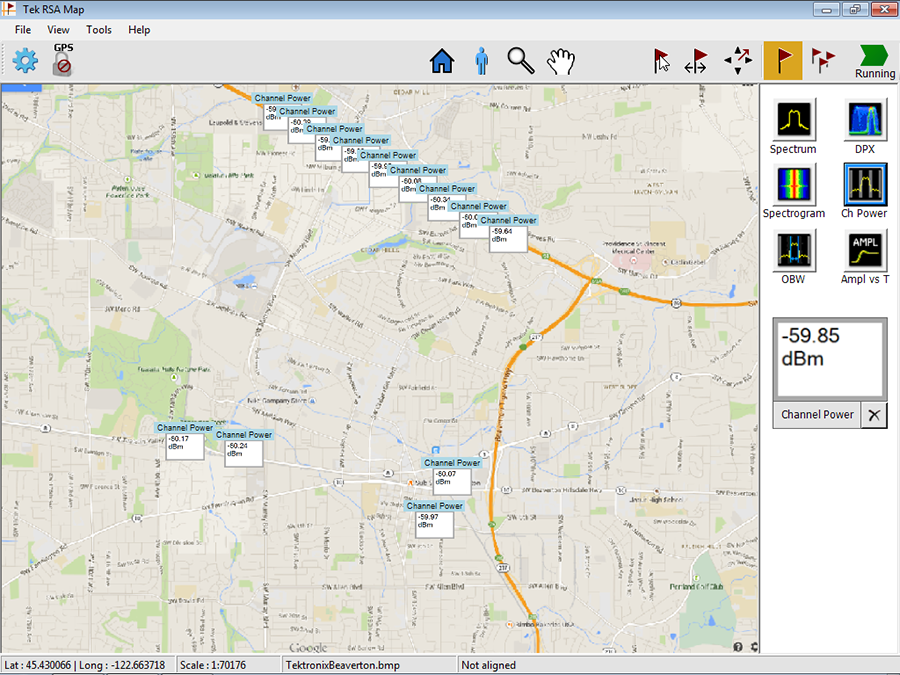

 MAP: Mapping

• Integrates measurements from SignalVu-PC to place on map, can be used outdoors with Global Satellite Navigation receiver or indoors
• Integrates with GPS and other Global Satellite Navigation receivers
• Plot measurements repetitively based on time or distance travelled

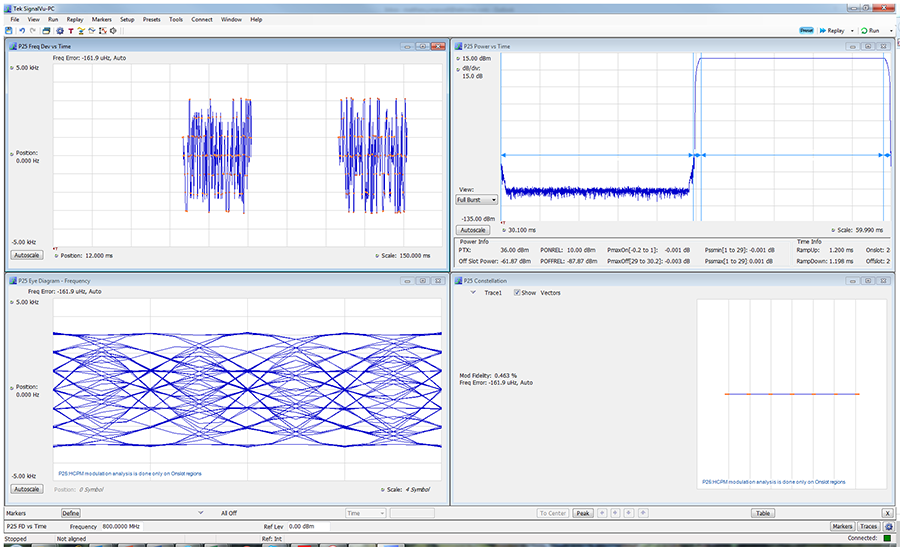

 SV26: APCO P25 measurement application

• Phase 1 and Phase 2 APCO P25 measurements
• Easy to capture and analyze signals to quickly determine signal quality and timing
• Summary display shows key results

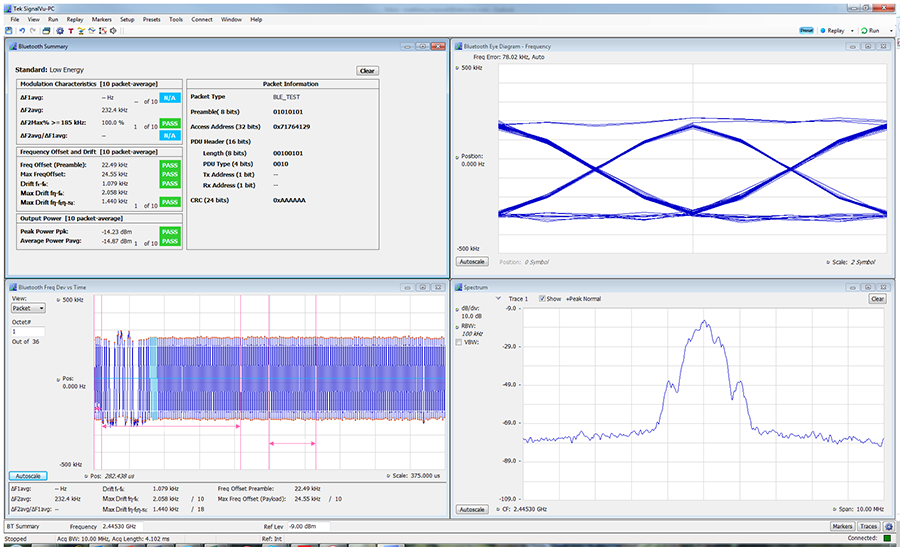

 SV27: Bluetooth Basic LE TX SIG measurements

• Physical layer RF measurements for Bluetooth Basic and Bluetooth Low Energy, per the Bluetooth SIG specifications
• Demodulation and symbol information with simple presets for different test setups
• Automatic measurements for Bluetooth Low Energy and Basic Rate
• Detection for Bluetooth Enhanced Data Rate packets

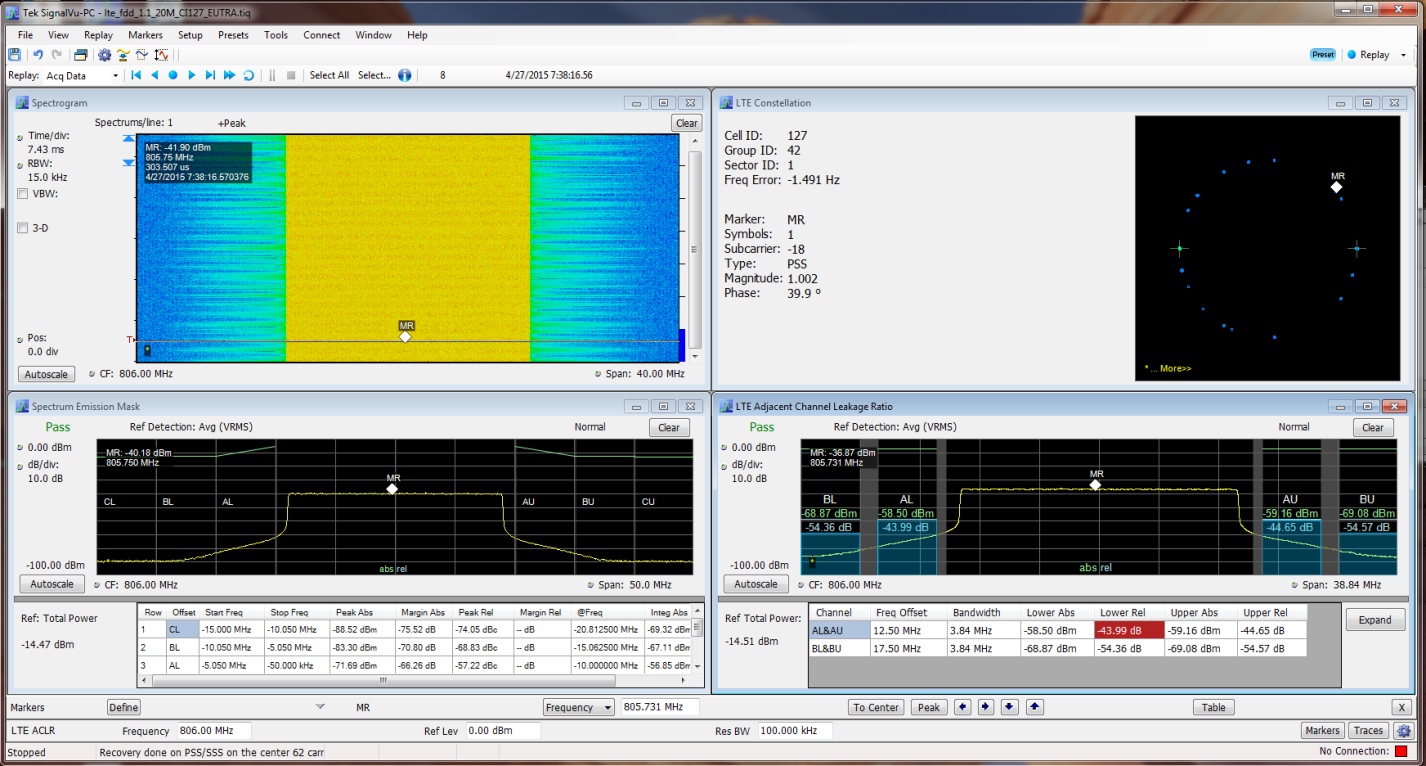

 SV28: LTE downlink (eNB) RF measurements

• RF measurements (ACLR, SEM, Channel Power, OBW) per 3GPP TS version 12.5, in addition to Cell ID detection
• Support for both TDD and FDD frame format is included
• Presets and pass/fail information accelerate validation

SV56: Playback of recorded files

• Enables playback of R3F files using SignalVu-PC
• Change analysis parameters like RBW, span
• Make all measurements including DPX and AM/FM listening

SV54: Signal survey and classification

• Define signals by frequency, bandwidth and shape
• User-created database enables custom surveys of your region
• Quickly determine new and unauthorized signals of interest

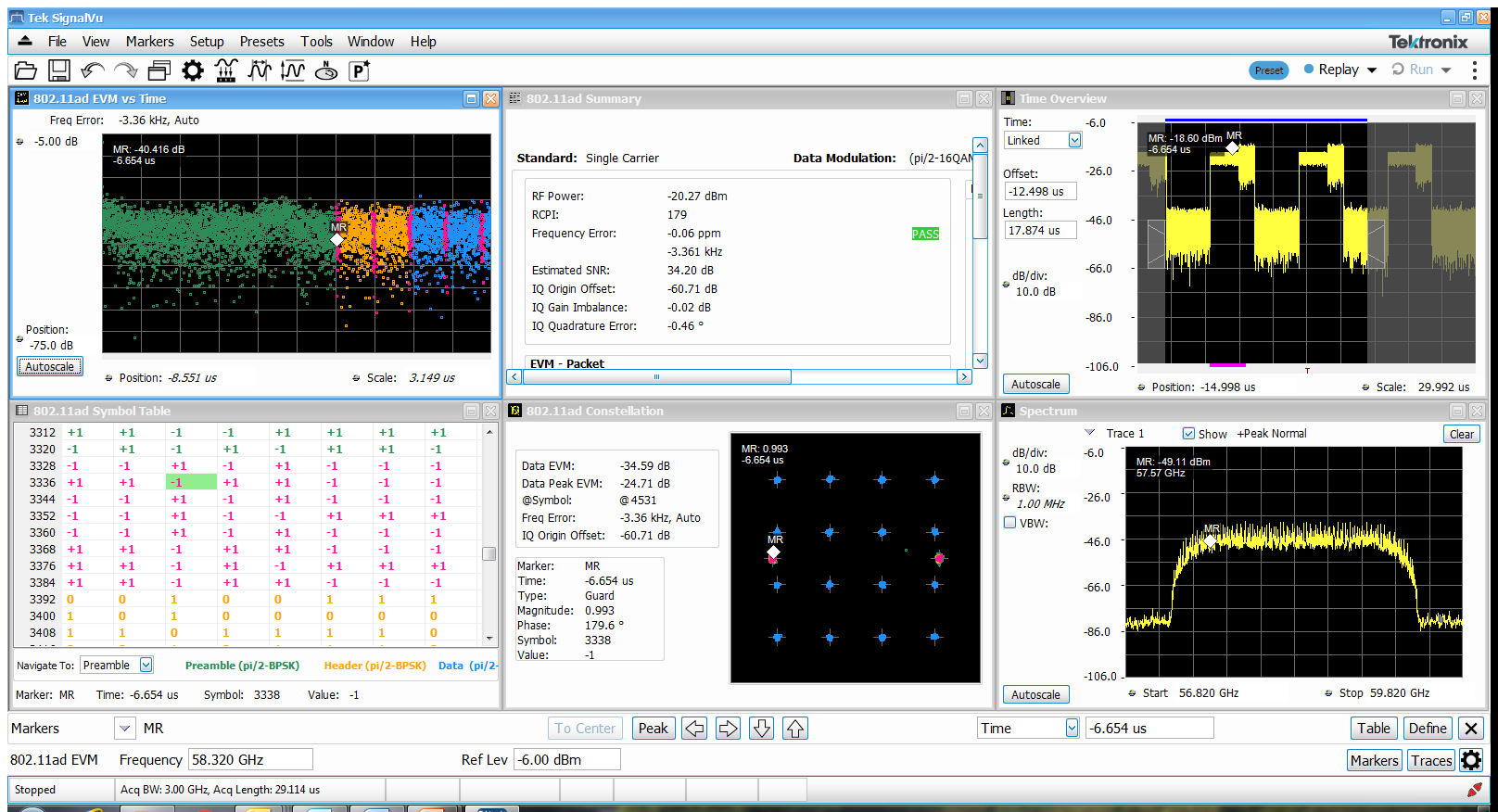

 SV60: Cable and Antenna Test

• Distance to Fault
• Return Loss
• Voltage Standing Wave Ratio (VSWR)
