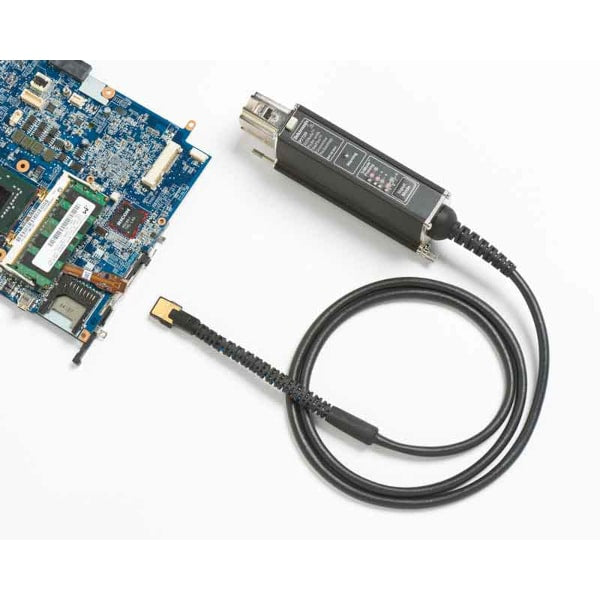

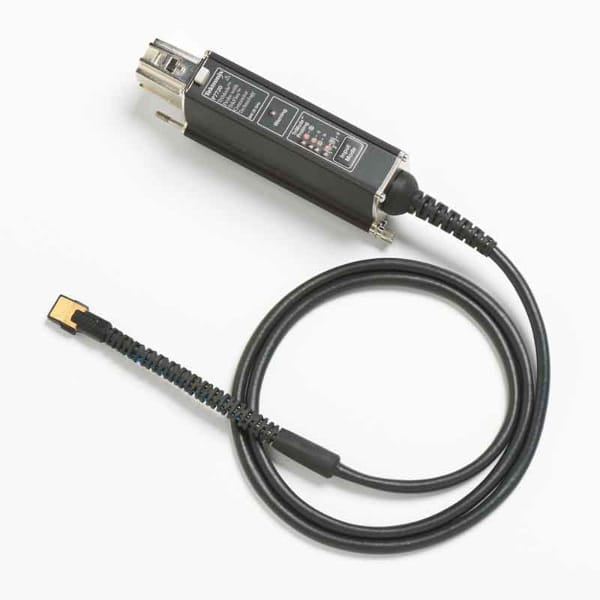

Tektronix P7504 LV Diff. Probe
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Bandwidth - 4 GHz
- Attenuation - 5X / 12.5X
- Maximum Voltage - ±15 V (DC + pk AC)
%0A
){kind=link}
Discover the possibilities
More information
Description
Differential signaling used in high speed serial standards requires very accurate characterization. The industry-leading bandwidth and signal fidelity found in a Tektronix low voltage differential oscilloscope probe ensures that you see every possible detail. Tektronix offers TriMode™ architecture which streamlines measurement acquisition by enabling you to make differential, single-ended, and common mode measurements with a single connection!
Key features
TriMode™ Probe – One setup, three measurements without adjusting probe tip connections
- Differential
- Single ended
- Common mode (Requires only one probe vs. conventional probing techniques)
Signal fidelity
- 25 GHz P7520A (with P75PST tip)
- 20 GHz P7520A
- 16 GHz P7516
- 13 GHz P7513A
- 8 GHz P7508
- 6 GHz P7506
- 4 GHz P7504
Versatile connectivity – solder down, handheld, fixtured
- Variety of solder-down options
- TriMode™ solder tips
- Small form factor for high-density probing
- Bandwidth choices from 4 to 25 GHz
- 1.5 m extension cable for high-temperature probing
- Quickly and reliably connect to multiple probe tips

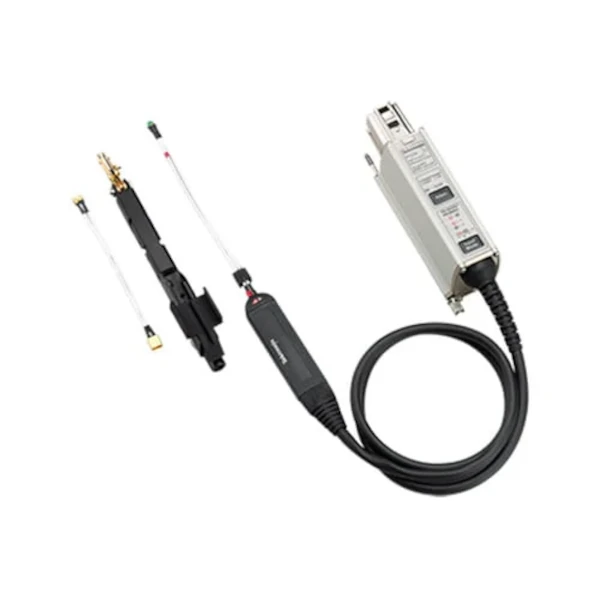

- Precision Differential Probing Module – Optional handheld and fixtured probing
- Small precision-tapered tips, an articulated joint for compliance, and variable tip spacing
TekConnect™ Interface – TekConnect™ scope/probe control and usability
- Direct control from probe compensation box or from scope menu
- Automated measurement control through the TekConnect™ Interface to connect to Tektronix real-time oscilloscopes
- View TriMode™/attenuation settings on probe compensation box from top or end panel
Applications
Examples include, but are not limited to:
- PCI Express
- Serial ATA
- DDR2/3/4
- USB
TriMode™ probing architecture
One-probe setup makes differential, single ended, and common mode measurements accurately and definitively.
Tektronix is a known leader when it comes to signal fidelity and signal acquisition. Building on our history of market-leading innovations in probing, we invented a revolutionary probing architecture called “TriMode™ Probing” that defines the next-generation industry benchmark for usability and signal fidelity. This architecture changes the rules of probing and allows you to work more effectively and efficiently. By enabling unique functionality, the P7500 Series TriMode™ probes allow you to switch between differential, single ended, and common mode measurements without moving the probe from its connection points.
Improved productivity is achieved by reducing setup time. One setup can be used to make the three different types of measurements all with the press of a button. The TriMode™ Probe architecture for the P7500 Series probes continues the Tektronix tradition of high-bandwidth and low-DUT loading while providing improved connectivity and value.
Connectivity plus, solder down, hand-held, fixtured
The P7500 Series TriMode™ probe architecture offers various levels of connectivity and provides the highest probe fidelity available for real-time oscilloscopes. The multipoint connectivity solutions of the P7500 Series include:
Hand-held and fixtured probing needs are met using the optional Precision Differential Probing Module (P75PDPM). Its small precision tapered tips, variable articulation of the probe tip, and quick-adjusting variable tip spacing provides the needed flexibility for adapting to vias and other test points of differing sizes from 30 mils to 180 mils.
These precision connectivity tools enable you to access multiple signals on anything from convenient test pads to hard-to-reach, high-density circuitry.
Signal fidelity
You can be confident in the signal fidelity of your measurements. The innovative new Tektronix differential architecture, coupled with the superior electrical performance of IBM SiGe technology, provides the bandwidth and fidelity to meet the industry needs of today as well as tomorrow.
The P7500 Series Probe architecture provides:
- Highest bandwidth available – 25 GHz
- Excellent step response
- Low-DUT loading
- High CMRR
- Differential, single ended, or common mode measurements using one probe
Performance you can count on
Depend on Tektronix to provide you with performance you can count on. In addition to industry-leading service and support, this product comes backed by a one-year warranty as standard.
For more information: Tektronix
