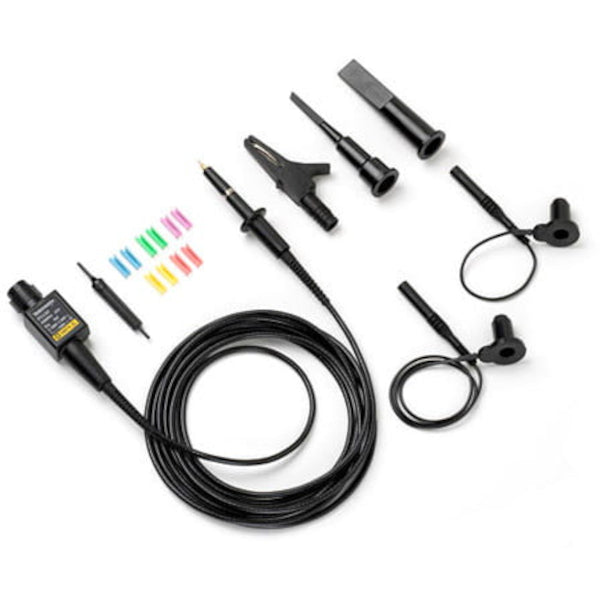

Tektronix P5150 Single-Ended Probe
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Bandwidth - 500 MHz
- Input Impedance - 40 MΩ || 3.8 pF
-
Maximum Voltage - Peak: 2.5 kV, RMS: 1000 V CAT II
Discover the possibilities
More information
Description
In many applications, it is important to be able to isolate the measurement from earth ground and also to isolate the common voltage between channels. The P5150 or P5122, coupled with the TPS2000 and THS3000 Series digital storage oscilloscopes, deliver both the isolation for the measurement from earth ground and full isolation between the channels. The P5150 is the recommended probe for measuring ripple on high-voltage DC supplies. The P5122 probe should not be used on the TPS2000 Series oscilloscopes for AC-coupled measurements on signals with greater than 300 V DC offset.
Key performance specifications
- DC to 500 MHz
- 2500 VPeak, 1000 VRMS CAT II
- 50 X
- Floatable up to 600 VRMS CAT II or 300 VRMS CAT III
- For TPS2000 and THS3000 Series Oscilloscopes
Applications
- Power supply design
- Design motor drive
- Electronic ballast
- Power semiconductors
- Switch mode control
- UPS systems
- Power converters
