Tektronix DPO70404C Oscilloscope
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Up to 33 GHz analog bandwidth and rise time as fast as 9 ps. Enables measurement on the latest high-speed serial standards
- True 33 GHz Real-time Analog Bandwidth on 2 Channels with 33 GHz models
- Industry-leading sample rate and timing resolution
- 100 GS/s on 2 Channels (33, 25, 23, 20, 16, and 12.5 GHz models)
Discover the possibilities
More information
Description

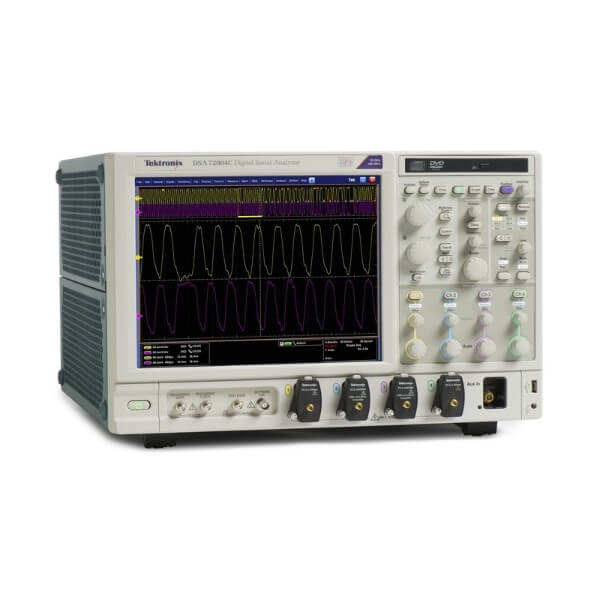

Tektronix DPO70404C 4 GHz Oscilloscope
The Tektronix DPO70404C is one of the most advanced oscilloscopes in its class - enabling today's engineer to see signals better with minimal noise, debug signal anomalies faster and utilize measurement and analysis tools for automated compliance testing and other verifications. In addition, the MSO/DPO70000 is perfect for analog/digital design and debug, data communications and high-speed serial communications. See how you can use the MSO/DPO70000 for your next project to find and analyze a wide range of mixed-signal anomalies.See your real signal
Industry-leading signal fidelity, minimum noise and highest effective number of bits (ENOB) provides confidence you are seeing your real signal and measuring it precisely. High signal-to-noise ratio and low internal noise floor enable you to perform precise characterization of your designs.Reduce debug time
From first power-on through operational checks, MSO/DPO70000 Series provides features you need to find problems fast. An industry-leading waveform capture rate and Pinpoint® triggering make you efficient at tracking down and capturing intermittent faults.
Measurement and analysis tools that keep you on track
Application support packages provide automated compliance testing, insightful debugging tools and the extensive signal connection options you need to verify and certify your latest design.
For more information: Tektronix
Documents
Tektronix DPO70404C 4 GHz Oscilloscope
Tektronix DPO-DSA-MSO70000 DatasheetOptions
Tektronix DPO70404C 4 GHz Oscilloscope
MSO/DPO70000 models
- MSO70404C
- 4 GHz Mixed Signal Oscilloscope
- MSO70604C
- 6 GHz Mixed Signal Oscilloscope
- MSO70804C
- 8 GHz Mixed Signal Oscilloscope
- MSO71254C
- 12.5 GHz Mixed Signal Oscilloscope
- MSO71604C
- 16 GHz Mixed Signal Oscilloscope
- MSO72004C
- 20 GHz Mixed Signal Oscilloscope
- MSO72304DX
- 23 GHz Mixed Signal Oscilloscope
- MSO72504DX
- 25 GHz Mixed Signal Oscilloscope
- MSO73304DX
- 33 GHz Mixed Signal Oscilloscope
- DPO70404C
- 4 GHz Digital Phosphor Oscilloscope
- DPO70604C
- 6 GHz Digital Phosphor Oscilloscope
- DPO70804C
- 8 GHz Digital Phosphor Oscilloscope
- DPO71254C
- 12.5 GHz Digital Phosphor Oscilloscope
- DPO71604C
- 16 GHz Digital Phosphor Oscilloscope
- DPO72004C
- 20 GHz Digital Phosphor Oscilloscope
- DPO72304DX
- 23 GHz Digital Phosphor Oscilloscope
- DPO72504DX
- 25 GHz Digital Phosphor Oscilloscope
- DPO73304DX
- 33 GHz Digital Phosphor Oscilloscope
Standard accessories
Accessories
- 071-2980-xx
- User Manual (please specify language when ordering)
- TCA-292MM (4 included)
- TekConnect® to 2.92 mm Adapter (C models)
- TCA-292D (4 included)
- TekConnect® to 2.92 mm Adapter (DX models)
- TCA-BNC
- TekConnect® to BNC Adapter
- —
- Accessory Pouch
- —
- Front Cover
- —
- Mouse
- —
- Keyboard
- —
- Power Cord (please specify power plug option when ordering)
- —
- DVI to VGA Adapter (C models only)
- —
- Static Protection Wrist Strap
- —
- GPIB Programmer's Reference (on product HDD)
- —
- Performance Verification Procedure PDF File
- —
- Calibration Certificate Documenting NIST Traceability
- —
- Z 540-1 Compliance and ISO9001
- ---
- P6717A General Purpose Logic Probe (MSO models)
- ---
- Logic Probe Deskew Fixture (MSO models)
Instrument options
- Record length options
-
Option Description Opt. 5XL 62.5 MS/Ch (Standard on MSO models) Opt. 10XL 125 MS/Ch Opt. 20XL 250 MS/Ch (For models of bandwidth ≥12.5 GHz only.) Opt. 50XL 500 MS/Ch on 4 channels, 1 G/Ch on 2 channels (DX models only)
- Storage options
-
Option Description Opt. SSD Additional Removable Disk – Solid State Drive (C models only)
- Trigger and search options
-
Option Description Opt. LT Waveform Limit Testing Opt. MTH Mask Testing for Serial Standards. Includes hardware clock recovery for up to 3.125 Gb/s (standard on MSO models) Opt. ST6G Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals (Up to 6.25 Gb/s). Includes hardware clock recovery and pattern lock triggering (standard on MSO models)
- Advanced analysis options
-
Option Description Opt. D-PHY MIPI® D-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA) Opt. DDRA DDR Memory Bus Analysis (Requires Opt. DJA) Opt. DJA DPOJET Advanced Jitter and Eye Diagram Analysis (standard on MSO models) Opt. DP12 DisplayPort 1.2 Source Test Automation Software (Requires Opt. DJA) (Requires Opt. 5XL or higher) Opt. DSA Digital Serial Analysis Bundle (includes 5XL, DJA, MTH, ST6G) Opt. ERRDT Frame and Bit Error Rate Detector for High-speed Serial Standards (Requires Opt. ST6G) Opt. ET3 Ethernet Compliance Test Software (Requires Ethernet Test Fixture) Opt. FC-16G Fiber Channel - 16G DPOJET Essentials Opt. HSIC HSIC Essentials - Electrical Validation and Protocol Decode Solution (Requires Opt. DJA) Opt. HT3 HDMI Compliance Test Software Opt. HT3DS HDMI Direct Synthesis for HDMI 1.4 Opt. MHD MHL Advanced Analysis and Compliance Software (Requires Opt. DJA and Opt 2XL or higher) Opt. MOST Electrical Compliance and Debug Test Solution for MOST50 and MOST150 (Requires Opt. DJA) Opt. M-PHY MIPI® M-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA) Opt. M-PHYTX M-PHY Automated Transmitter Solution (Requires Opt. DJA) Opt. M-PHYRX M-PHY Automated Receiver Solution (Requires Opt. ST6G) (Requires Opt. ERRDT) Opt. PCE3 PCI Express® Transmitter Compliance and Debug (Requires Opt. DJA) (For models of bandwidth ≥6 GHz only) Opt. PWR Advanced Power Measurement and Analysis Software Opt. SAS3 SAS3 12 GB/s Essentials (Requires Opt. DJA and 2XL or higher) (For models of bandwidth ≥20 GHz only) Opt. SFP-TX SFP+ Compliance and Debug Solution (Requires Opt. DJA) Opt. SFP-WDP SFP+ Compliance and Debug Solution – WDP Measurement (Requires Opt. DJA) Opt. SDLA64 Serial Data Link Analysis Visualizer Opt. SR-AERO Aerospace Serial Triggering and Analysis (MIL-STD-1553B) Opt. SR-AUTO Automotive Serial Triggering and Analysis (CAN/LIN/FlexRay) Opt. SR-COMP Computer Serial Triggering and Analysis (RS-232/422/485/UART) Opt. SR-CUST Custom Serial Analysis (standard on all models) Opt. SR-DPHY MIPI® D-PHY (DSI / CSI2) Serial Analysis Opt. SR-EMBD Embedded Serial Triggering and Analysis (I2C, SPI) (standard on MSO models) Opt. SR-ENET Ethernet Serial Analysis (10BASE-T and 100BASE-TX) Opt. SR-PCIE PCI Express Serial Analysis (Opt. ST6G required for triggering) Opt. SR-USB USB Serial Triggering and Analysis Opt. SVA AM/FM/PM Audio Signal Analysis (Requires Opt. SVE) Opt. SVE SignalVu® Essentials – Vector Signal Analysis Software 1 Opt. SVM General Purpose Modulation Analysis (Requires Opt. SVE) Opt. SVO Flexible OFDM Analysis (Requires Opt. SVE) Opt. SVP Advanced Signal Analysis (including pulse measurements) (Requires Opt. SVE) Opt. SVT Frequency and Phase Settling Time Measurements (Requires Opt. SVE) Opt. SV23 WLAN 802.11a/b/g/j/p measurement application (requires Opt. SVE) Opt. SV24 WLAN 802.11n measurement application (requires Opt. SV23) Opt. SV25 WLAN 802.11ac measurement application (requires Opt. SV24) (For models of bandwidth ≥6 GHz only) Opt. SV26 APCO P25 compliance testing and analysis application (requires Opt. SVE) Opt. TBT-TX Thunderbolt Transmitter Characterization, Debug, and Compliance Testing (Requires Opt. DJA and Opt. 2XL or higher) (For models of bandwidth ≥16 GHz only) Opt. UHS2 UHS-II-Host-Tx and UHS-ii-Device-Tx Measurements (For models of bandwidth ≥6 GHz only) Opt. USBHSIC USB2.0 and HSIC Bundle, includes options Opt. DJA, HSIC, SR-USB, and USB Opt. USB3 USB 3.0 Compliance and Analysis Software (Requires Opt. DJA) (For models of bandwidth ≥8 GHz only) Opt. VET Visual Trigger Opt. 10G-KR 10GBASE-KR/KR4 Compliance and Debug Solution (Requires Opt. DJA) (For models of bandwidth ≥16 GHz only)
1 Also check http://www.tek.com/signalvu for the latest information.
- Floating license options
- Floating licenses offer an alternative method to manage your Tektronix asset. Floating licenses allow license-key enabled options to be easily moved among all your MSO/DPO70000, DPO7000, and MSO/DPO5000 Series oscilloscopes. Floating licenses are available for the license-key enabled options listed below.
Check http://www.tek.com/products/oscilloscopes/floatinglicenses for additional information about floating license options.
Option Description DPOFL-ASM Advanced Event Search and Mark DPOFL-D-PHY MIPI® D-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA) DPOFL-DDRA DDR Memory Bus Analysis (Requires Opt. DJA) DPOFL-DJA Jitter and Eye Analysis Tools – Advanced (DPOJET) DPOFL-DP12 DisplayPort 1.2 Source Test Automation Software DPOFL-DSA Digital Serial Analysis Bundle DPOFL-ERRDT Frame and Bit Error Rate Detector for High-speed Serial Standards (Requires Opt. ST6G) DPOFL-ET3 Ethernet Compliance Testing (Requires Ethernet Test Fixture) DPOFL-HSIC HSIC Essentials - Electrical Validation and Protocol Decode Solution (Requires Opt. DJA) (Requires Opt. SR-CUST) DPOFL-HT3 HDMI Compliance Testing DPOFL-HT3DS HDMI Direct Synthesis for HDMI 1.4 DPOFL-LT Waveform Limit Testing DPOFL-MOST Electrical Compliance and Debug Test Solution for MOST50 and MOST150 (Requires Opt. DJA) DPOFL-MPHY MIPI® M-PHY Essentials – Characterization and Analysis Solution DPOFL-M-PHYTX M-PHY Automated Transmitter Solution (Requires Opt. DJA) DPOFL-M-PHYRX M-PHY Automated Receiver Solution (Requires Opt. ST6G) (Requires Opt. ERRDT) DPOFL-MTH Mask Testing, includes Hardware Clock Recovery DPOFL-PCE3 PCI Express® Transmitter Compliance and Debug (Requires Opt. DJA) (For models of bandwidth ≥6 GHz only) DPOFL-PTD Protocol Trigger and Decode for 8b/10b DPOFL-PTM-H Serial Protocol Trigger and Decode up to 6.25 Gb/s DPOFL-PWR Advanced Power Measurement and Analysis Software DPOFL-SAS3 SAS 12 GB/s Essentials (Requires Opt. DJA and Opt. 2XL or higher) (For models of bandwidth ≥20 GHz only) DPOFL-SFP-TX SFP+ Compliance and Debug Solution (Requires Opt. DJA) DPOFL-SFP-WDP SFP+ Compliance and Debug Solution – WDP Measurement (Requires Opt. DJA) DPOFL-SDLA64 Serial Data Link Analysis Visualizer DPOFL-SR-AERO Aerospace Serial Triggering and Analysis (MIL-STD-1553B) DPOFL-SR-AUTO Automotive Serial Triggering and Analysis (CAN/LIN/FlexRay) DPOFL-SR-COMP Computer Serial Triggering and Analysis (RS-232/422/485/UART) DPOFL-SR-DPHY MIPI® D-PHY (DSI / CSI2) Serial Analysis DPOFL-SR-EMBD Embedded Serial Triggering and Analysis (I2C, SPI) DPOFL-SR-ENET Ethernet Serial Analysis (10BASE-T and 100BASE-TX) DPOFL-SR-PCIE PCI Express Serial Analysis (Opt. ST6G required for triggering) DPOFL-SR-USB USB Serial Triggering and Analysis DPOFL-ST6G 8b/10b Serial Protocol Trigger and Decode up to 6.25 Gb/s DPOFL-STU Upgrade from 3.125 Gb/s to 6.25 Gb/s 8b/10b Serial Protocol Trigger and Decode DPOFL-SVA AM/FM/PM Audio Signal Analysis (Requires Opt. SVE) DPOFL-SVE SignalVu® Essentials – Vector Signal Analysis Software DPOFL-SVM General Purpose Modulation Analysis (Requires Opt. SVE) DPOFL-SVO Flexible OFDM Analysis (Requires Opt. SVE) DPOFL-SVP Advanced Signal Analysis (including pulse measurements) (Requires Opt. SVE) DPOFL-SVT Frequency and Phase Settling Time Measurements (Requires Opt. SVE) DPOFL SV23 WLAN 802.11a/b/g/j/p measurement application (requires Opt. SVE) DPOFL SV24 WLAN 802.11n measurement application (requires Opt. SV23) DPOFL SV25 WLAN 802.11ac measurement application (requires Opt. SV24) (For models of bandwidth ≥6 GHz only) DPOFL-SV26 APCO P25 compliance testing and analysis application DPOFL-TBT-TX Thunderbolt Transmitter Characterization, Debug, and Compliance Testing (Requires Opt. DJA and Opt. 2XL or higher) (For models of bandwidth ≥16 GHz only) DPOFL-UHS2 UHS-II-Host-Tx and UHS-II-Device-TX Measurements (For models of bandwidth ≥6 GHz only) DPOFL-USB3 USB 3.0 Essentials (Requires Opt. DJA) (For models of bandwidth ≥8 GHz only) DPOFL-USBPWR USB Power Adapter/EPS Compliance Automated Test Solution (Not supported on 70000D models) DPOFL-VET Visual Trigger DPOFL-XL02 Extended record length – 31.25 M Samples/Ch DPOFL-XL05 Extended record length – 62.5 M Samples/Ch DPOFL-XL010 Extended record length – 125 M Samples/Ch DPOFL-XL020 Extended record length – 250 M Samples/Ch (For models of bandwidth ≥12.5 GHz only) DPOFL-XL050 Extended record length - 500M Samples each Ch, 1G Samples on 2 Ch (DX models only) DPOFL-10G-KR 10GBASE-KR/KR4 Compliance and Debug Solution (Requires Opt. DJA) (Requires Opt. SR-CUST) (For models of bandwidth ≥16 GHz only)
- TekExpress application framework options
-
Option Description TEKEXP TekExpress® Automation Framework Opt. D-PHYTX D-PHY Automated Solution Opt. DIIVA DiiVA Automation Solution Opt. DP-SINK DisplayPort Sink Compliance Automation Software Opt. HEAC HEAC Automated Solution Opt. SAS-RSG Stand-alone SAS Receiver Measurements Opt. SAS-TSG Stand-alone SAS Transmitter Measurements Opt. SAS-TSGW SAS Transmitter Measurements Including a Set of WDP Measurements (Requires Opt. SAS-TSG) Opt. SATA-TSG SATA PHY/TSG/OOB Transmitter Tests for TekExpress® Opt. SATA-RSG SATA RSG/RMT Receiver Tests for TekExpress® Opt. SFP-TX SFP+ Compliance and Debug Solution (Requires Opt. DJA) (For models of ≥16 GHz only) Opt. SFP-WDP SFP+ Compliance and Debug Solution with TWDPc Measurements (Requires Opt. SFP-TX) (For models of ≥16 GHz only) Opt. USBPWR USB Power Adapter/ EPS Compliance Automated Test Solution (Not supported on 70000D models) Opt. USB-RMT TekExpress® Automated USB 3.0 Receiver Solution Opt. USB-TX TekExpress® Automated USB 3.0 Solution (Requires Opt. DJA) (For models of bandwidth ≥8 GHz only) Opt. XGbT 10GBASE-T Automated Solution
- Upgrade options
- The MSO/DPO70000 Series instruments can be easily upgraded after initial time of purchase.
- Memory upgrades for DPO70000 Series
-
- XL02
- Standard Configuration to Option 2XL Configuration
- XL05
- Standard Configuration to Option 5XL Configuration
- XL010
- Standard Configuration to Option 10XL Configuration
- XL020
- Standard Configuration to Option 20XL Configuration (For models of bandwidth ≥12.5 GHz only)
- Memory upgrades for MSO/DPO70000 Series
-
- XL25
- Option 2XL Configuration to Option 5XL Configuration
- XL210
- Option 2XL Configuration to Option 10XL Configuration
- XL220
- Option 2XL Configuration to Option 20XL Configuration (For models of bandwidth ≥12.5 GHz only)
- XL250
- Option 2XL Configuration to Option 50XL Configuration (DPO DX models only)
- XL510
- Option 5XL Configuration to Option 10XL Configuration
- XL520
- Option5XL Configuration to Option 20XL Configuration (For models of bandwidth ≥12.5 GHz only)
- XL550
- Option 5XL Configuration to Option 50XL Configuration (DX models only)
- XL1020
- Option 10XL Configuration to Option 20XL Configuration (For models of bandwidth ≥12.5 GHz only)
- XL1050
- Option 10XL Configuration to Option 50XL Configuration (DX models only)
- Trigger and search upgrades for MSO/DPO70000 Series
-
- LT
- Waveform Limit Testing
- MTH
- Mask Testing for Serial Standards with Hardware Clock Recovery
- ST6G
- Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals (Up to 6.25 Gb/s)
- STU
- Increase Protocol Triggering and Decoding from 3.125 Gb/s to 6.25 Gb/s
- Advanced analysis upgrades for MSO/DPO70000 Series
-
- ASM
- Advanced Event Search and Mark
- D-PHY
- MIPI® D-PHY Characterization and Analysis Solution (Requires Opt. DJA)
- DDRA
- Upgrade to Option DDRA (Requires Opt. DJA)
- DJAH
- DPOJET Jitter and Eye Diagram Analysis (Upgrade for DPO70404 - DPO70804 models)
- DJAU
- DPOJET Jitter and Eye Diagram Analysis (Upgrade for DPO71254 - DPO73304 models)
- DP12
- DisplayPort 1.2 Source Test Automation Software (Requires Opt. DJA and Opt. 5XL or higher)
- DSAH
- Digital Serial Analysis Bundle (MSO models with SN below C240000 or B140000, all DPO models) (For models of bandwidth ≤8 GHz only)
- DSAU
- MSO Digital Serial Analysis Bundle (MSO models with SN below C240000 or B140000, all DPO models) (For models of bandwidth ≥12.5 GHz only)
- EQ
- Equalization to upgrade from Option SLE to Option SLA (Requires Opt. SLE)
- ERRDTH
- Frame and Bit Error Rate Detector (Requires Opt. ST6G) (For models of bandwidth ≤8 GHz only)
- ERRDTU
- Frame and Bit Error Rate Detector (Requires Opt. ST6G) (For models of bandwidth ≥12.5 GHz only)
- ET3
- Ethernet Compliance Test Software
- Opt. FC-16G
- Fiber Channel - 16G DPOJET Essentials
- HSIC
- HSIC Essentials - Electrical Validation and Protocol Decode Solution (Requires Opt. DJA) (Requires Opt. SR-CUST)
- HT3
- HDMI Compliance Test Software
- HT3DS
- HDMI Direct Synthesis for HDMI 1.4
- MHD
- MHL Advanced Analysis and Compliance Software (Requires Opt. DJA and Opt. 2XL or higher)
- MOST
- Electrical Compliance and Debug Test Solution for MOST50 and MOST150 (Requires Opt. DJA)
- M-PHY
- MIPI® M-PHY Characterization and Analysis Solution (Requires Opt. DJA)
- PCE3
- PCI Express® Transmitter Compliance and Debug (Requires Opt. DJA) (For models of bandwidth ≥6 GHz only)
- PTD
- Protocol Decoding for 8b/10b-encoded Serial Signals
- PWR
- Advanced Power Measurement and Analysis Software
- SAS3
- SAS 12 Gb/s Essentials (Requires Opt. DJA and Opt. 2XL or higher) (For models of bandwidth ≥20 GHz only)
- SFP-TX
- SFP+ Compliance and Debug Solution (Requires Opt. DJA) (For models of bandwidth ≥16 GHz only)
- SFP-WDP
- SFP+ Compliance and Debug Solution with TWDPc Measurements (Requires Opt. SFP-TX) (For models of bandwidth ≥16 GHz only)
- SDLA64
- Serial Data Link Analysis Visualizer
- SR-AERO
- Aerospace Serial Triggering and Analysis (MIL-STD-1553B)
- SR-AUTO
- Automotive Serial Triggering and Analysis (CAN/LIN/FlexRay)
- SR-COMP
- Computer Serial Triggering and Analysis (RS-232/422/485/UART)
- SR-CUST
- Custom Serial Analysis Kit for Developers (standard on all models)
- SR-DPHY
- MIPI® D-PHY (DSI / CSI2) Serial Analysis
- SR-EMBD
- Embedded Serial Triggering and Analysis (I2C, SPI)
- SR-PCIE
- PCI Express Serial Analysis (Opt. ST6G required for triggering)
- SR-USB
- USB Serial Triggering and Analysis
- SSD
- Additional Removable Disk – Solid State Drive
- SVA
- AM/FM/PM Audio Signal Analysis (Requires Opt. SVE, SVEH, or SVEU)
- SVEH
- SignalVu® Essentials – Vector Signal Analysis Software (For models of bandwidth ≤8 GHz only)
- SVEU
- SignalVu® Essentials – Vector Signal Analysis Software (For models of bandwidth ≥12.5 GHz only)
- SVM
- General Purpose Modulation Analysis (Requires Opt. SVE, SVEH, or SVEU)
- SVO
- Flexible OFDM Analysis (Requires Opt. SVE, SVEH, or SVEU)
- SVP
- Advanced Pulsed Signal Analysis including Measurements (Requires Opt. SVE, SVEH, or SVEU)
- SVT
- Frequency and Phase Settling Time Measurements (Requires Opt. SVE, SVEH, or SVEU)
- SV23
- WLAN 802.11a/b/g/j/p measurement application (Requires Opt. SVE, SVEH or SVEU)
- SV24
- WLAN 802.11n measurement application (Requires Opt. SV23)
- SV25
- WLAN 802.11ac measurement application (Requires Opt. SV24) (For models of bandwidth ≥6 GHz only)
- SV26
- APCO P25 compliance testing and analysis application (requires Opt. SVE, SVEH or SVEU)
- TBT-TX
- Thunderbolt Transmitter Characterization, Debug, and Compliance Testing (Requires Opt. DJA and 2XL or higher) (For models of bandwidth ≥16 GHz only)
- UHS2
- UHS-II-Host-Tx and UHS-II-Device-Tx Measurements (For models of bandwidth ≥6 GHz only)
- USB3
- USB 3.0 Compliance and Analysis Software (Requires Opt. DJA) (For models of bandwidth ≥8 GHz only)
- VETH
- Visual Trigger (For models of bandwidth ≤8 GHz only)
- VETU
- Visual Trigger (For models of bandwidth ≥12.5 GHz only)
- 10G-KR
- 10GBASE-KR/KR4 Compliance and Debug Solution (Requires Opt. DJA) (Requires Opt. SR-CUST) (For models of bandwidth ≥16 GHz only)
- Other upgrades for MSO/DPO70000 Series
-
- IF
- Upgrade Installation Service
- HDD
- Spare Hard Disk Drive
- SSD
- Spare Solid State Drive
- Investment protection options
- As signals get faster and new standards are developed, your investment in an MSO/DPO70000 Series instrument can evolve with your needs. You can upgrade the bandwidth of the unit you own today. You can take advantage of MSO/DPO70000 series performance improvements by upgrading your existing unit to a new series, or adding MSO features to your current DPO model. Contact your local Tektronix representative to discuss the full range of options available to ensure your MSO/DPO70000 series oscilloscope has the tools you need for your next project.
Service options
- Opt. C3
- Calibration Service 3 Years
- Opt. C5
- Calibration Service 5 Years
- Opt. D1
- Calibration Data Report
- Opt. D3
- Calibration Data Report 3 Years (with Opt. C3)
- Opt. D5
- Calibration Data Report 5 Years (with Opt. C5)
- Opt. G3
- Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- Opt. G5
- Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- Opt. IF
- Upgrade Installation Service
- Opt. R3
- Repair Service 3 Years (including warranty)
- Opt. R5
- Repair Service 5 Years (including warranty)
Recommended accessories
- Probes
-
- P7633
- 33 GHz Low Noise TriMode™ Probe
- P7630
- 30 GHz Low Noise TriMode™ Probe
- P7625
- 25 GHz Low Noise TriMode™ Probe
- P7520A
- 25 GHz TriMode™ probe
- P7516
- 16 GHz TriMode™ probe
- P7513A
- 13 GHz TriMode™ differential probe
- P7313
- 13 GHz Z-Active® differential probe
- P7313SMA
- 13 GHz TriMode® differential SMA probe
- P7508
- 8 GHz TriMode™ probe
- P7380
- 8 GHz Z-Active® differential probe
- P7506
- 6 GHz TriMode™ probe
- P7504
- 4 GHz TriMode™ probe
- P6780
- Differential Input Logic probe
- P6750
- D-Max® Technology Logic Probe
- P6717A
- General-purpose Logic probe
- P6251
- DC to 1 GHz, 42 V, differential probe (requires TCA-BNC adapter)
- P6250
- DC to 500 MHz, 42 V, differential probe (requires TCA-BNC adapter)
- TCPA300/TCPA400 Series
- Current measurement systems
- P5200/P5205/P5210
- High-voltage differential probes
- 067-2431-xx
- Probe Deskew Fixture for SMA or solder-down connections (up to 30 GHz)
- 067-0484-xx
- Analog Probe Calibration and Deskew Fixture (4 GHz)
- 067-1586-xx
- Analog Probe Deskew Fixture (>4 GHz)
- 067-1686-xx
- Power Deskew Fixture
- Adapters
-
- TCA-1MEG
- TekConnect® high-impedance buffer amplifier. Includes P6139A passive probe
- TCA-292MM
- TekConnect® to 2.92 mm adapter (20 GHz bandwidth)
- TCA-292D
- TekConnect® to 2.92 mm adapter (33 GHz bandwidth)
- TCA-BNC
- TekConnect® to BNC adapter
- TCA-N
- TekConnect® to N adapter
- TCA-SMA
- TekConnect® to SMA adapter
- TCA-VPI50
- 50 Ω TekVPI to TekConnect adapter
- TCA75
- 8 GHz precision TekConnect® 75 Ω to 50 Ω adapter with 75 Ω BNC input connector
- Cables
-
- DPOACQSYNC
- Multi-scope synchronization kit (includes fast edge source, cables, power splitters, carrying case)
- 012-0991-xx
- GPIB Cable (1 m)
- 012-0991-xx
- GPIB Cable (2 m)
- P6780 Logic Probe standard accessories
-
- 067-2298-xx
- Deskew Fixture, logic probes
- 020-3035-xx
- Standard adapter
- 020-3036-xx
- Wide Body adapter
- 020-3032-00
- 25°/55° holder
- 020-3021-00
- Heat Strip wire (4.57 m)
- 020-3031-xx
- Hand Browsing adapter
- 020-3033-xx
- Flex adapter
- 020-3038-xx
- Lead set ground
- 020-3042-xx
- Probe grouper (including header pins)
- 020-3034-xx
- Ferrite beads
- 020-3037-xx
- Wire tubing (4.57 m)
- P6717A Logic Probe standard accessories
-
- HEX-P6960PIN
- D-MAX Probe footprint to square pin header
- NEX-HD2HEADER
- Mictor to square pin header adapter
- 067-2298-xx
- Deskew Fixture, logic probes
- 206-0559-xx
- Extension ground tip
- 131-5638-xx
- Probe tip
- 206-0569-xx
- IC grabber
- 352-1115-xx
- Probe grouper
- 196-3501-xx
- Lead sets
- 196-3497-xx
- Ground lead sets
- Memory testing
-
- NEX-DDR3MP78BSC
- DDR3 ×4/×8 Solder Chip Interposer
- NEX-DDR3MP78BSCSK
- DDR3 ×4/×8 Socket Chip Interposer
- NEX-DDR3MP96BSC
- DDR3 ×16 Solder Chip Interposer
- NEX-DDR3MP96BSCSK
- DDR3 ×16 Socket Chip Interposer
- NEX-DDR2MP60BSC
- DDR2 ×4/×8 Solder Chip Interposer
- NEX-DDR2MP60BSCSK
- DDR2 ×4/×8 Socket Chip Interposer
- NEX-DDR2MP84BSC
- DDR2 ×16 Solder Chip Interposer
- NEX-DDR2MP84BSCSK
- DDR2 ×16 Socket Chip Interposer
- Instrumented DIMM for DDR3
- Order Scope NEXVu card for UDIMM Raw Card E. (Contact http://www.nexustechnology.com)
- System Test
-
- TDSUSBF
- Test Fixture for use with Opt. USB
- TF-XGbT
- 10GBASE-T Fixture for use with Option XGbT Software
- —
- Ethernet Test Fixture. Order through Crescent Heart Software (http://www.c-h-s.com)
- TF-HEAC-TPA-KIT
- HEAC TPA-KIT consists of: Main Board; Plug A-type board; Plug C-type board; 2 × TDR board with A Receptacle; 2 × TDR board with C Receptacle
- TF-HDMI-TPA-S/STX
- HDMI Type C fixture set for Tx/Rx
- TF-HDMIC-TPA-S/STX
- TF-HDMIC-TPA-S/STX
- TF-HDMIE-TPA-KIT
- HDMI Type E Fixture set
- TF-HDMID-TPA-P/R
- HDMI Type D Fixtures
- TF-MHL-TPA-TEK
- MHL Fixture set
- S46-6666-A-AMER
- Keithley Instruments RF/Microwave switch system, 32 channel, unterminated, Americas power cord
- S46-6666-A-ASIAP
- Keithley Instruments RF/Microwave switch system, 32 channel, unterminated, Asia-Pacific power cord
- S46-6666-A-EURAF
- Keithley Instruments RF/Microwave switch system, 32 channel, unterminated, Europe/Africa power cords
- TF-USB3-AB-KIT
- USB 3.0 A/B Fixture/Cable Kit
- TF-USB3-A-P
- USB 3.0 A Plug Fixture
- TF-USB3-A-R
- USB 3.0 A Receptacle Fixture Kit
- TF-USB3-B-R
- USB 3.0 B Receptacle Fixture Kit
- TF-GBE-ATP
- 10/100/1000BASE-T Advanced Test Package (consists of test fixture PCB set, RJ45 interconnect cable, and 1000BASE-T jitter test channel cable)
- TF-GBE-BTP
- 10/100/1000BASE-T Basic Test Package (consists of test fixture PCB set and RJ45 interconnect cable)
- TF-GBE-JTC
- 103 meter 1000BASE-T jitter test channel cable
- TF-GBE-SIC
- Short (4 inch (0.1 meter)) RJ45 interconnect cable
- TF-XGbT
- Test fixtures that complement the use of the TekEXP-XGbT solution
Transit Case (carbon fiber).
- Other
-
- K4000
- Oscilloscope Cart
- 016-1985-xx
- Rackmount Kit
- 077-0076-xx
- Service Manual, pdf on hard drive
- 016-2039-00
- Transit Case (metal frame, wood panels)
- 016-2043-00
- Transit Case (carbon fiber)
- TF-TEKPROTECT ESD Protection Tester:
- MSO/DPO70000C instruments include TekProtect circuitry designed to stop EOS/ESD events from reaching analog channel preamp inputs, while still allowing normal signals to pass. TekProtect should be checked regularly with the TF-TEKPROTECT ESD Protection Tester to ensure the device is still working.
Warranty
One-year warranty covering all parts and labor.Video
Tektronix DPO70404C 4 GHz Oscilloscope
The Tektronix DPO70404C is one of the most advanced oscilloscopes in its class - enabling today's engineer to see signals better with minimal noise, debug signal anomalies faster and utilize measurement and analysis tools for automated compliance testing and other verifications. In addition, the MSO/DPO70000 is perfect for analog/digital design and debug, data communications and high-speed serial communications. See how you can use the MSO/DPO70000 for your next project to find and analyze a wide range of mixed-signal anomalies.See your real signal
Industry-leading signal fidelity, minimum noise and highest effective number of bits (ENOB) provides confidence you are seeing your real signal and measuring it precisely. High signal-to-noise ratio and low internal noise floor enable you to perform precise characterization of your designs.Reduce debug time
From first power-on through operational checks, MSO/DPO70000 Series provides features you need to find problems fast. An industry-leading waveform capture rate and Pinpoint® triggering make you efficient at tracking down and capturing intermittent faults.
Measurement and analysis tools that keep you on track
Application support packages provide automated compliance testing, insightful debugging tools and the extensive signal connection options you need to verify and certify your latest design.
For more information: Tektronix
Tektronix DPO70404C 4 GHz Oscilloscope
Tektronix DPO-DSA-MSO70000 DatasheetTektronix DPO70404C 4 GHz Oscilloscope
MSO/DPO70000 models
- MSO70404C
- 4 GHz Mixed Signal Oscilloscope
- MSO70604C
- 6 GHz Mixed Signal Oscilloscope
- MSO70804C
- 8 GHz Mixed Signal Oscilloscope
- MSO71254C
- 12.5 GHz Mixed Signal Oscilloscope
- MSO71604C
- 16 GHz Mixed Signal Oscilloscope
- MSO72004C
- 20 GHz Mixed Signal Oscilloscope
- MSO72304DX
- 23 GHz Mixed Signal Oscilloscope
- MSO72504DX
- 25 GHz Mixed Signal Oscilloscope
- MSO73304DX
- 33 GHz Mixed Signal Oscilloscope
- DPO70404C
- 4 GHz Digital Phosphor Oscilloscope
- DPO70604C
- 6 GHz Digital Phosphor Oscilloscope
- DPO70804C
- 8 GHz Digital Phosphor Oscilloscope
- DPO71254C
- 12.5 GHz Digital Phosphor Oscilloscope
- DPO71604C
- 16 GHz Digital Phosphor Oscilloscope
- DPO72004C
- 20 GHz Digital Phosphor Oscilloscope
- DPO72304DX
- 23 GHz Digital Phosphor Oscilloscope
- DPO72504DX
- 25 GHz Digital Phosphor Oscilloscope
- DPO73304DX
- 33 GHz Digital Phosphor Oscilloscope
Standard accessories
Accessories
- 071-2980-xx
- User Manual (please specify language when ordering)
- TCA-292MM (4 included)
- TekConnect® to 2.92 mm Adapter (C models)
- TCA-292D (4 included)
- TekConnect® to 2.92 mm Adapter (DX models)
- TCA-BNC
- TekConnect® to BNC Adapter
- —
- Accessory Pouch
- —
- Front Cover
- —
- Mouse
- —
- Keyboard
- —
- Power Cord (please specify power plug option when ordering)
- —
- DVI to VGA Adapter (C models only)
- —
- Static Protection Wrist Strap
- —
- GPIB Programmer's Reference (on product HDD)
- —
- Performance Verification Procedure PDF File
- —
- Calibration Certificate Documenting NIST Traceability
- —
- Z 540-1 Compliance and ISO9001
- ---
- P6717A General Purpose Logic Probe (MSO models)
- ---
- Logic Probe Deskew Fixture (MSO models)
Instrument options
- Record length options
-
Option Description Opt. 5XL 62.5 MS/Ch (Standard on MSO models) Opt. 10XL 125 MS/Ch Opt. 20XL 250 MS/Ch (For models of bandwidth ≥12.5 GHz only.) Opt. 50XL 500 MS/Ch on 4 channels, 1 G/Ch on 2 channels (DX models only)
- Storage options
-
Option Description Opt. SSD Additional Removable Disk – Solid State Drive (C models only)
- Trigger and search options
-
Option Description Opt. LT Waveform Limit Testing Opt. MTH Mask Testing for Serial Standards. Includes hardware clock recovery for up to 3.125 Gb/s (standard on MSO models) Opt. ST6G Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals (Up to 6.25 Gb/s). Includes hardware clock recovery and pattern lock triggering (standard on MSO models)
- Advanced analysis options
-
Option Description Opt. D-PHY MIPI® D-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA) Opt. DDRA DDR Memory Bus Analysis (Requires Opt. DJA) Opt. DJA DPOJET Advanced Jitter and Eye Diagram Analysis (standard on MSO models) Opt. DP12 DisplayPort 1.2 Source Test Automation Software (Requires Opt. DJA) (Requires Opt. 5XL or higher) Opt. DSA Digital Serial Analysis Bundle (includes 5XL, DJA, MTH, ST6G) Opt. ERRDT Frame and Bit Error Rate Detector for High-speed Serial Standards (Requires Opt. ST6G) Opt. ET3 Ethernet Compliance Test Software (Requires Ethernet Test Fixture) Opt. FC-16G Fiber Channel - 16G DPOJET Essentials Opt. HSIC HSIC Essentials - Electrical Validation and Protocol Decode Solution (Requires Opt. DJA) Opt. HT3 HDMI Compliance Test Software Opt. HT3DS HDMI Direct Synthesis for HDMI 1.4 Opt. MHD MHL Advanced Analysis and Compliance Software (Requires Opt. DJA and Opt 2XL or higher) Opt. MOST Electrical Compliance and Debug Test Solution for MOST50 and MOST150 (Requires Opt. DJA) Opt. M-PHY MIPI® M-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA) Opt. M-PHYTX M-PHY Automated Transmitter Solution (Requires Opt. DJA) Opt. M-PHYRX M-PHY Automated Receiver Solution (Requires Opt. ST6G) (Requires Opt. ERRDT) Opt. PCE3 PCI Express® Transmitter Compliance and Debug (Requires Opt. DJA) (For models of bandwidth ≥6 GHz only) Opt. PWR Advanced Power Measurement and Analysis Software Opt. SAS3 SAS3 12 GB/s Essentials (Requires Opt. DJA and 2XL or higher) (For models of bandwidth ≥20 GHz only) Opt. SFP-TX SFP+ Compliance and Debug Solution (Requires Opt. DJA) Opt. SFP-WDP SFP+ Compliance and Debug Solution – WDP Measurement (Requires Opt. DJA) Opt. SDLA64 Serial Data Link Analysis Visualizer Opt. SR-AERO Aerospace Serial Triggering and Analysis (MIL-STD-1553B) Opt. SR-AUTO Automotive Serial Triggering and Analysis (CAN/LIN/FlexRay) Opt. SR-COMP Computer Serial Triggering and Analysis (RS-232/422/485/UART) Opt. SR-CUST Custom Serial Analysis (standard on all models) Opt. SR-DPHY MIPI® D-PHY (DSI / CSI2) Serial Analysis Opt. SR-EMBD Embedded Serial Triggering and Analysis (I2C, SPI) (standard on MSO models) Opt. SR-ENET Ethernet Serial Analysis (10BASE-T and 100BASE-TX) Opt. SR-PCIE PCI Express Serial Analysis (Opt. ST6G required for triggering) Opt. SR-USB USB Serial Triggering and Analysis Opt. SVA AM/FM/PM Audio Signal Analysis (Requires Opt. SVE) Opt. SVE SignalVu® Essentials – Vector Signal Analysis Software 1 Opt. SVM General Purpose Modulation Analysis (Requires Opt. SVE) Opt. SVO Flexible OFDM Analysis (Requires Opt. SVE) Opt. SVP Advanced Signal Analysis (including pulse measurements) (Requires Opt. SVE) Opt. SVT Frequency and Phase Settling Time Measurements (Requires Opt. SVE) Opt. SV23 WLAN 802.11a/b/g/j/p measurement application (requires Opt. SVE) Opt. SV24 WLAN 802.11n measurement application (requires Opt. SV23) Opt. SV25 WLAN 802.11ac measurement application (requires Opt. SV24) (For models of bandwidth ≥6 GHz only) Opt. SV26 APCO P25 compliance testing and analysis application (requires Opt. SVE) Opt. TBT-TX Thunderbolt Transmitter Characterization, Debug, and Compliance Testing (Requires Opt. DJA and Opt. 2XL or higher) (For models of bandwidth ≥16 GHz only) Opt. UHS2 UHS-II-Host-Tx and UHS-ii-Device-Tx Measurements (For models of bandwidth ≥6 GHz only) Opt. USBHSIC USB2.0 and HSIC Bundle, includes options Opt. DJA, HSIC, SR-USB, and USB Opt. USB3 USB 3.0 Compliance and Analysis Software (Requires Opt. DJA) (For models of bandwidth ≥8 GHz only) Opt. VET Visual Trigger Opt. 10G-KR 10GBASE-KR/KR4 Compliance and Debug Solution (Requires Opt. DJA) (For models of bandwidth ≥16 GHz only)
1 Also check http://www.tek.com/signalvu for the latest information.
- Floating license options
- Floating licenses offer an alternative method to manage your Tektronix asset. Floating licenses allow license-key enabled options to be easily moved among all your MSO/DPO70000, DPO7000, and MSO/DPO5000 Series oscilloscopes. Floating licenses are available for the license-key enabled options listed below.
Check http://www.tek.com/products/oscilloscopes/floatinglicenses for additional information about floating license options.
Option Description DPOFL-ASM Advanced Event Search and Mark DPOFL-D-PHY MIPI® D-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA) DPOFL-DDRA DDR Memory Bus Analysis (Requires Opt. DJA) DPOFL-DJA Jitter and Eye Analysis Tools – Advanced (DPOJET) DPOFL-DP12 DisplayPort 1.2 Source Test Automation Software DPOFL-DSA Digital Serial Analysis Bundle DPOFL-ERRDT Frame and Bit Error Rate Detector for High-speed Serial Standards (Requires Opt. ST6G) DPOFL-ET3 Ethernet Compliance Testing (Requires Ethernet Test Fixture) DPOFL-HSIC HSIC Essentials - Electrical Validation and Protocol Decode Solution (Requires Opt. DJA) (Requires Opt. SR-CUST) DPOFL-HT3 HDMI Compliance Testing DPOFL-HT3DS HDMI Direct Synthesis for HDMI 1.4 DPOFL-LT Waveform Limit Testing DPOFL-MOST Electrical Compliance and Debug Test Solution for MOST50 and MOST150 (Requires Opt. DJA) DPOFL-MPHY MIPI® M-PHY Essentials – Characterization and Analysis Solution DPOFL-M-PHYTX M-PHY Automated Transmitter Solution (Requires Opt. DJA) DPOFL-M-PHYRX M-PHY Automated Receiver Solution (Requires Opt. ST6G) (Requires Opt. ERRDT) DPOFL-MTH Mask Testing, includes Hardware Clock Recovery DPOFL-PCE3 PCI Express® Transmitter Compliance and Debug (Requires Opt. DJA) (For models of bandwidth ≥6 GHz only) DPOFL-PTD Protocol Trigger and Decode for 8b/10b DPOFL-PTM-H Serial Protocol Trigger and Decode up to 6.25 Gb/s DPOFL-PWR Advanced Power Measurement and Analysis Software DPOFL-SAS3 SAS 12 GB/s Essentials (Requires Opt. DJA and Opt. 2XL or higher) (For models of bandwidth ≥20 GHz only) DPOFL-SFP-TX SFP+ Compliance and Debug Solution (Requires Opt. DJA) DPOFL-SFP-WDP SFP+ Compliance and Debug Solution – WDP Measurement (Requires Opt. DJA) DPOFL-SDLA64 Serial Data Link Analysis Visualizer DPOFL-SR-AERO Aerospace Serial Triggering and Analysis (MIL-STD-1553B) DPOFL-SR-AUTO Automotive Serial Triggering and Analysis (CAN/LIN/FlexRay) DPOFL-SR-COMP Computer Serial Triggering and Analysis (RS-232/422/485/UART) DPOFL-SR-DPHY MIPI® D-PHY (DSI / CSI2) Serial Analysis DPOFL-SR-EMBD Embedded Serial Triggering and Analysis (I2C, SPI) DPOFL-SR-ENET Ethernet Serial Analysis (10BASE-T and 100BASE-TX) DPOFL-SR-PCIE PCI Express Serial Analysis (Opt. ST6G required for triggering) DPOFL-SR-USB USB Serial Triggering and Analysis DPOFL-ST6G 8b/10b Serial Protocol Trigger and Decode up to 6.25 Gb/s DPOFL-STU Upgrade from 3.125 Gb/s to 6.25 Gb/s 8b/10b Serial Protocol Trigger and Decode DPOFL-SVA AM/FM/PM Audio Signal Analysis (Requires Opt. SVE) DPOFL-SVE SignalVu® Essentials – Vector Signal Analysis Software DPOFL-SVM General Purpose Modulation Analysis (Requires Opt. SVE) DPOFL-SVO Flexible OFDM Analysis (Requires Opt. SVE) DPOFL-SVP Advanced Signal Analysis (including pulse measurements) (Requires Opt. SVE) DPOFL-SVT Frequency and Phase Settling Time Measurements (Requires Opt. SVE) DPOFL SV23 WLAN 802.11a/b/g/j/p measurement application (requires Opt. SVE) DPOFL SV24 WLAN 802.11n measurement application (requires Opt. SV23) DPOFL SV25 WLAN 802.11ac measurement application (requires Opt. SV24) (For models of bandwidth ≥6 GHz only) DPOFL-SV26 APCO P25 compliance testing and analysis application DPOFL-TBT-TX Thunderbolt Transmitter Characterization, Debug, and Compliance Testing (Requires Opt. DJA and Opt. 2XL or higher) (For models of bandwidth ≥16 GHz only) DPOFL-UHS2 UHS-II-Host-Tx and UHS-II-Device-TX Measurements (For models of bandwidth ≥6 GHz only) DPOFL-USB3 USB 3.0 Essentials (Requires Opt. DJA) (For models of bandwidth ≥8 GHz only) DPOFL-USBPWR USB Power Adapter/EPS Compliance Automated Test Solution (Not supported on 70000D models) DPOFL-VET Visual Trigger DPOFL-XL02 Extended record length – 31.25 M Samples/Ch DPOFL-XL05 Extended record length – 62.5 M Samples/Ch DPOFL-XL010 Extended record length – 125 M Samples/Ch DPOFL-XL020 Extended record length – 250 M Samples/Ch (For models of bandwidth ≥12.5 GHz only) DPOFL-XL050 Extended record length - 500M Samples each Ch, 1G Samples on 2 Ch (DX models only) DPOFL-10G-KR 10GBASE-KR/KR4 Compliance and Debug Solution (Requires Opt. DJA) (Requires Opt. SR-CUST) (For models of bandwidth ≥16 GHz only)
- TekExpress application framework options
-
Option Description TEKEXP TekExpress® Automation Framework Opt. D-PHYTX D-PHY Automated Solution Opt. DIIVA DiiVA Automation Solution Opt. DP-SINK DisplayPort Sink Compliance Automation Software Opt. HEAC HEAC Automated Solution Opt. SAS-RSG Stand-alone SAS Receiver Measurements Opt. SAS-TSG Stand-alone SAS Transmitter Measurements Opt. SAS-TSGW SAS Transmitter Measurements Including a Set of WDP Measurements (Requires Opt. SAS-TSG) Opt. SATA-TSG SATA PHY/TSG/OOB Transmitter Tests for TekExpress® Opt. SATA-RSG SATA RSG/RMT Receiver Tests for TekExpress® Opt. SFP-TX SFP+ Compliance and Debug Solution (Requires Opt. DJA) (For models of ≥16 GHz only) Opt. SFP-WDP SFP+ Compliance and Debug Solution with TWDPc Measurements (Requires Opt. SFP-TX) (For models of ≥16 GHz only) Opt. USBPWR USB Power Adapter/ EPS Compliance Automated Test Solution (Not supported on 70000D models) Opt. USB-RMT TekExpress® Automated USB 3.0 Receiver Solution Opt. USB-TX TekExpress® Automated USB 3.0 Solution (Requires Opt. DJA) (For models of bandwidth ≥8 GHz only) Opt. XGbT 10GBASE-T Automated Solution
- Upgrade options
- The MSO/DPO70000 Series instruments can be easily upgraded after initial time of purchase.
- Memory upgrades for DPO70000 Series
-
- XL02
- Standard Configuration to Option 2XL Configuration
- XL05
- Standard Configuration to Option 5XL Configuration
- XL010
- Standard Configuration to Option 10XL Configuration
- XL020
- Standard Configuration to Option 20XL Configuration (For models of bandwidth ≥12.5 GHz only)
- Memory upgrades for MSO/DPO70000 Series
-
- XL25
- Option 2XL Configuration to Option 5XL Configuration
- XL210
- Option 2XL Configuration to Option 10XL Configuration
- XL220
- Option 2XL Configuration to Option 20XL Configuration (For models of bandwidth ≥12.5 GHz only)
- XL250
- Option 2XL Configuration to Option 50XL Configuration (DPO DX models only)
- XL510
- Option 5XL Configuration to Option 10XL Configuration
- XL520
- Option5XL Configuration to Option 20XL Configuration (For models of bandwidth ≥12.5 GHz only)
- XL550
- Option 5XL Configuration to Option 50XL Configuration (DX models only)
- XL1020
- Option 10XL Configuration to Option 20XL Configuration (For models of bandwidth ≥12.5 GHz only)
- XL1050
- Option 10XL Configuration to Option 50XL Configuration (DX models only)
- Trigger and search upgrades for MSO/DPO70000 Series
-
- LT
- Waveform Limit Testing
- MTH
- Mask Testing for Serial Standards with Hardware Clock Recovery
- ST6G
- Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals (Up to 6.25 Gb/s)
- STU
- Increase Protocol Triggering and Decoding from 3.125 Gb/s to 6.25 Gb/s
- Advanced analysis upgrades for MSO/DPO70000 Series
-
- ASM
- Advanced Event Search and Mark
- D-PHY
- MIPI® D-PHY Characterization and Analysis Solution (Requires Opt. DJA)
- DDRA
- Upgrade to Option DDRA (Requires Opt. DJA)
- DJAH
- DPOJET Jitter and Eye Diagram Analysis (Upgrade for DPO70404 - DPO70804 models)
- DJAU
- DPOJET Jitter and Eye Diagram Analysis (Upgrade for DPO71254 - DPO73304 models)
- DP12
- DisplayPort 1.2 Source Test Automation Software (Requires Opt. DJA and Opt. 5XL or higher)
- DSAH
- Digital Serial Analysis Bundle (MSO models with SN below C240000 or B140000, all DPO models) (For models of bandwidth ≤8 GHz only)
- DSAU
- MSO Digital Serial Analysis Bundle (MSO models with SN below C240000 or B140000, all DPO models) (For models of bandwidth ≥12.5 GHz only)
- EQ
- Equalization to upgrade from Option SLE to Option SLA (Requires Opt. SLE)
- ERRDTH
- Frame and Bit Error Rate Detector (Requires Opt. ST6G) (For models of bandwidth ≤8 GHz only)
- ERRDTU
- Frame and Bit Error Rate Detector (Requires Opt. ST6G) (For models of bandwidth ≥12.5 GHz only)
- ET3
- Ethernet Compliance Test Software
- Opt. FC-16G
- Fiber Channel - 16G DPOJET Essentials
- HSIC
- HSIC Essentials - Electrical Validation and Protocol Decode Solution (Requires Opt. DJA) (Requires Opt. SR-CUST)
- HT3
- HDMI Compliance Test Software
- HT3DS
- HDMI Direct Synthesis for HDMI 1.4
- MHD
- MHL Advanced Analysis and Compliance Software (Requires Opt. DJA and Opt. 2XL or higher)
- MOST
- Electrical Compliance and Debug Test Solution for MOST50 and MOST150 (Requires Opt. DJA)
- M-PHY
- MIPI® M-PHY Characterization and Analysis Solution (Requires Opt. DJA)
- PCE3
- PCI Express® Transmitter Compliance and Debug (Requires Opt. DJA) (For models of bandwidth ≥6 GHz only)
- PTD
- Protocol Decoding for 8b/10b-encoded Serial Signals
- PWR
- Advanced Power Measurement and Analysis Software
- SAS3
- SAS 12 Gb/s Essentials (Requires Opt. DJA and Opt. 2XL or higher) (For models of bandwidth ≥20 GHz only)
- SFP-TX
- SFP+ Compliance and Debug Solution (Requires Opt. DJA) (For models of bandwidth ≥16 GHz only)
- SFP-WDP
- SFP+ Compliance and Debug Solution with TWDPc Measurements (Requires Opt. SFP-TX) (For models of bandwidth ≥16 GHz only)
- SDLA64
- Serial Data Link Analysis Visualizer
- SR-AERO
- Aerospace Serial Triggering and Analysis (MIL-STD-1553B)
- SR-AUTO
- Automotive Serial Triggering and Analysis (CAN/LIN/FlexRay)
- SR-COMP
- Computer Serial Triggering and Analysis (RS-232/422/485/UART)
- SR-CUST
- Custom Serial Analysis Kit for Developers (standard on all models)
- SR-DPHY
- MIPI® D-PHY (DSI / CSI2) Serial Analysis
- SR-EMBD
- Embedded Serial Triggering and Analysis (I2C, SPI)
- SR-PCIE
- PCI Express Serial Analysis (Opt. ST6G required for triggering)
- SR-USB
- USB Serial Triggering and Analysis
- SSD
- Additional Removable Disk – Solid State Drive
- SVA
- AM/FM/PM Audio Signal Analysis (Requires Opt. SVE, SVEH, or SVEU)
- SVEH
- SignalVu® Essentials – Vector Signal Analysis Software (For models of bandwidth ≤8 GHz only)
- SVEU
- SignalVu® Essentials – Vector Signal Analysis Software (For models of bandwidth ≥12.5 GHz only)
- SVM
- General Purpose Modulation Analysis (Requires Opt. SVE, SVEH, or SVEU)
- SVO
- Flexible OFDM Analysis (Requires Opt. SVE, SVEH, or SVEU)
- SVP
- Advanced Pulsed Signal Analysis including Measurements (Requires Opt. SVE, SVEH, or SVEU)
- SVT
- Frequency and Phase Settling Time Measurements (Requires Opt. SVE, SVEH, or SVEU)
- SV23
- WLAN 802.11a/b/g/j/p measurement application (Requires Opt. SVE, SVEH or SVEU)
- SV24
- WLAN 802.11n measurement application (Requires Opt. SV23)
- SV25
- WLAN 802.11ac measurement application (Requires Opt. SV24) (For models of bandwidth ≥6 GHz only)
- SV26
- APCO P25 compliance testing and analysis application (requires Opt. SVE, SVEH or SVEU)
- TBT-TX
- Thunderbolt Transmitter Characterization, Debug, and Compliance Testing (Requires Opt. DJA and 2XL or higher) (For models of bandwidth ≥16 GHz only)
- UHS2
- UHS-II-Host-Tx and UHS-II-Device-Tx Measurements (For models of bandwidth ≥6 GHz only)
- USB3
- USB 3.0 Compliance and Analysis Software (Requires Opt. DJA) (For models of bandwidth ≥8 GHz only)
- VETH
- Visual Trigger (For models of bandwidth ≤8 GHz only)
- VETU
- Visual Trigger (For models of bandwidth ≥12.5 GHz only)
- 10G-KR
- 10GBASE-KR/KR4 Compliance and Debug Solution (Requires Opt. DJA) (Requires Opt. SR-CUST) (For models of bandwidth ≥16 GHz only)
- Other upgrades for MSO/DPO70000 Series
-
- IF
- Upgrade Installation Service
- HDD
- Spare Hard Disk Drive
- SSD
- Spare Solid State Drive
- Investment protection options
- As signals get faster and new standards are developed, your investment in an MSO/DPO70000 Series instrument can evolve with your needs. You can upgrade the bandwidth of the unit you own today. You can take advantage of MSO/DPO70000 series performance improvements by upgrading your existing unit to a new series, or adding MSO features to your current DPO model. Contact your local Tektronix representative to discuss the full range of options available to ensure your MSO/DPO70000 series oscilloscope has the tools you need for your next project.
Service options
- Opt. C3
- Calibration Service 3 Years
- Opt. C5
- Calibration Service 5 Years
- Opt. D1
- Calibration Data Report
- Opt. D3
- Calibration Data Report 3 Years (with Opt. C3)
- Opt. D5
- Calibration Data Report 5 Years (with Opt. C5)
- Opt. G3
- Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- Opt. G5
- Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- Opt. IF
- Upgrade Installation Service
- Opt. R3
- Repair Service 3 Years (including warranty)
- Opt. R5
- Repair Service 5 Years (including warranty)
Recommended accessories
- Probes
-
- P7633
- 33 GHz Low Noise TriMode™ Probe
- P7630
- 30 GHz Low Noise TriMode™ Probe
- P7625
- 25 GHz Low Noise TriMode™ Probe
- P7520A
- 25 GHz TriMode™ probe
- P7516
- 16 GHz TriMode™ probe
- P7513A
- 13 GHz TriMode™ differential probe
- P7313
- 13 GHz Z-Active® differential probe
- P7313SMA
- 13 GHz TriMode® differential SMA probe
- P7508
- 8 GHz TriMode™ probe
- P7380
- 8 GHz Z-Active® differential probe
- P7506
- 6 GHz TriMode™ probe
- P7504
- 4 GHz TriMode™ probe
- P6780
- Differential Input Logic probe
- P6750
- D-Max® Technology Logic Probe
- P6717A
- General-purpose Logic probe
- P6251
- DC to 1 GHz, 42 V, differential probe (requires TCA-BNC adapter)
- P6250
- DC to 500 MHz, 42 V, differential probe (requires TCA-BNC adapter)
- TCPA300/TCPA400 Series
- Current measurement systems
- P5200/P5205/P5210
- High-voltage differential probes
- 067-2431-xx
- Probe Deskew Fixture for SMA or solder-down connections (up to 30 GHz)
- 067-0484-xx
- Analog Probe Calibration and Deskew Fixture (4 GHz)
- 067-1586-xx
- Analog Probe Deskew Fixture (>4 GHz)
- 067-1686-xx
- Power Deskew Fixture
- Adapters
-
- TCA-1MEG
- TekConnect® high-impedance buffer amplifier. Includes P6139A passive probe
- TCA-292MM
- TekConnect® to 2.92 mm adapter (20 GHz bandwidth)
- TCA-292D
- TekConnect® to 2.92 mm adapter (33 GHz bandwidth)
- TCA-BNC
- TekConnect® to BNC adapter
- TCA-N
- TekConnect® to N adapter
- TCA-SMA
- TekConnect® to SMA adapter
- TCA-VPI50
- 50 Ω TekVPI to TekConnect adapter
- TCA75
- 8 GHz precision TekConnect® 75 Ω to 50 Ω adapter with 75 Ω BNC input connector
- Cables
-
- DPOACQSYNC
- Multi-scope synchronization kit (includes fast edge source, cables, power splitters, carrying case)
- 012-0991-xx
- GPIB Cable (1 m)
- 012-0991-xx
- GPIB Cable (2 m)
- P6780 Logic Probe standard accessories
-
- 067-2298-xx
- Deskew Fixture, logic probes
- 020-3035-xx
- Standard adapter
- 020-3036-xx
- Wide Body adapter
- 020-3032-00
- 25°/55° holder
- 020-3021-00
- Heat Strip wire (4.57 m)
- 020-3031-xx
- Hand Browsing adapter
- 020-3033-xx
- Flex adapter
- 020-3038-xx
- Lead set ground
- 020-3042-xx
- Probe grouper (including header pins)
- 020-3034-xx
- Ferrite beads
- 020-3037-xx
- Wire tubing (4.57 m)
- P6717A Logic Probe standard accessories
-
- HEX-P6960PIN
- D-MAX Probe footprint to square pin header
- NEX-HD2HEADER
- Mictor to square pin header adapter
- 067-2298-xx
- Deskew Fixture, logic probes
- 206-0559-xx
- Extension ground tip
- 131-5638-xx
- Probe tip
- 206-0569-xx
- IC grabber
- 352-1115-xx
- Probe grouper
- 196-3501-xx
- Lead sets
- 196-3497-xx
- Ground lead sets
- Memory testing
-
- NEX-DDR3MP78BSC
- DDR3 ×4/×8 Solder Chip Interposer
- NEX-DDR3MP78BSCSK
- DDR3 ×4/×8 Socket Chip Interposer
- NEX-DDR3MP96BSC
- DDR3 ×16 Solder Chip Interposer
- NEX-DDR3MP96BSCSK
- DDR3 ×16 Socket Chip Interposer
- NEX-DDR2MP60BSC
- DDR2 ×4/×8 Solder Chip Interposer
- NEX-DDR2MP60BSCSK
- DDR2 ×4/×8 Socket Chip Interposer
- NEX-DDR2MP84BSC
- DDR2 ×16 Solder Chip Interposer
- NEX-DDR2MP84BSCSK
- DDR2 ×16 Socket Chip Interposer
- Instrumented DIMM for DDR3
- Order Scope NEXVu card for UDIMM Raw Card E. (Contact http://www.nexustechnology.com)
- System Test
-
- TDSUSBF
- Test Fixture for use with Opt. USB
- TF-XGbT
- 10GBASE-T Fixture for use with Option XGbT Software
- —
- Ethernet Test Fixture. Order through Crescent Heart Software (http://www.c-h-s.com)
- TF-HEAC-TPA-KIT
- HEAC TPA-KIT consists of: Main Board; Plug A-type board; Plug C-type board; 2 × TDR board with A Receptacle; 2 × TDR board with C Receptacle
- TF-HDMI-TPA-S/STX
- HDMI Type C fixture set for Tx/Rx
- TF-HDMIC-TPA-S/STX
- TF-HDMIC-TPA-S/STX
- TF-HDMIE-TPA-KIT
- HDMI Type E Fixture set
- TF-HDMID-TPA-P/R
- HDMI Type D Fixtures
- TF-MHL-TPA-TEK
- MHL Fixture set
- S46-6666-A-AMER
- Keithley Instruments RF/Microwave switch system, 32 channel, unterminated, Americas power cord
- S46-6666-A-ASIAP
- Keithley Instruments RF/Microwave switch system, 32 channel, unterminated, Asia-Pacific power cord
- S46-6666-A-EURAF
- Keithley Instruments RF/Microwave switch system, 32 channel, unterminated, Europe/Africa power cords
- TF-USB3-AB-KIT
- USB 3.0 A/B Fixture/Cable Kit
- TF-USB3-A-P
- USB 3.0 A Plug Fixture
- TF-USB3-A-R
- USB 3.0 A Receptacle Fixture Kit
- TF-USB3-B-R
- USB 3.0 B Receptacle Fixture Kit
- TF-GBE-ATP
- 10/100/1000BASE-T Advanced Test Package (consists of test fixture PCB set, RJ45 interconnect cable, and 1000BASE-T jitter test channel cable)
- TF-GBE-BTP
- 10/100/1000BASE-T Basic Test Package (consists of test fixture PCB set and RJ45 interconnect cable)
- TF-GBE-JTC
- 103 meter 1000BASE-T jitter test channel cable
- TF-GBE-SIC
- Short (4 inch (0.1 meter)) RJ45 interconnect cable
- TF-XGbT
- Test fixtures that complement the use of the TekEXP-XGbT solution
Transit Case (carbon fiber).
- Other
-
- K4000
- Oscilloscope Cart
- 016-1985-xx
- Rackmount Kit
- 077-0076-xx
- Service Manual, pdf on hard drive
- 016-2039-00
- Transit Case (metal frame, wood panels)
- 016-2043-00
- Transit Case (carbon fiber)
- TF-TEKPROTECT ESD Protection Tester:
- MSO/DPO70000C instruments include TekProtect circuitry designed to stop EOS/ESD events from reaching analog channel preamp inputs, while still allowing normal signals to pass. TekProtect should be checked regularly with the TF-TEKPROTECT ESD Protection Tester to ensure the device is still working.
