Tektronix DF-A0047 Directional Finding Antenna
Tektronix

Tektronix DF-A0047 Directional Finding Antenna

Sale price0,00 DKK Price on quotation
Order Item

Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk

  • Frequency range: 20 - 8500 MHz
  • 9 kHz-20 MHz extension module available
  • 3 user-selected bands
  • Internal preamp can be used or bypassed
  • Rotating trigger-switch to control operating bands, preamp on/off and transmit bearing
  • Horizontal or vertical polarization
  • Operating temperature from -30 to +55 °C
  • IP56 ingress protection
  • Weighs 1.8 kg
  • Includes armrest extension brace for easier handling in the field

Discover the possibilities

More information

Tektronix DF-A0047 Directional Finding Antenna

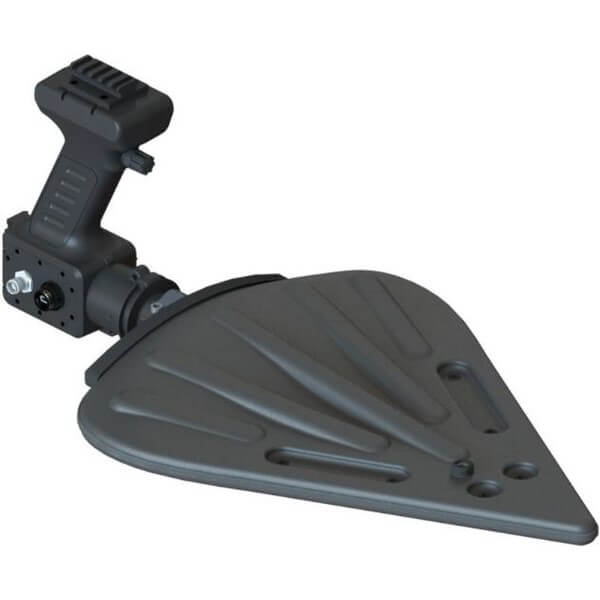

The Tektronix DF-A0047 direction finding antenna for use in interference hunting applications with our USB spectrum analyzers and SignalVu-PC Map application software. The DF-A0047 contains multiple antennas and a user-selectable preamplifier to cover a broad range of interference frequencies and levels. Powered via USB, the DF-A0047 includes an integrated compass that transmits angle information to the SignalVu PC Map application for automatic creation of lines of bearing on the map.



Combined with a Tektronix USB spectrum analyzer, the Alaris DF-A0047 direction finding antenna makes interference hunting easy. Lines of bearing are automatically transmitted from the antenna to SignalVu-PC Map software, enabling fast triangulation on interference sources.

For more information: Tektronix
