Tekbox TBLM01 LISN MATE
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Frequency range: 30 kHz – 110 MHz
- Maximum RF level at any BNC port: 27dBm
- Maximum DC current at any BNC port: 30 mA
Discover the possibilities
More information
Description
Tekbox TBLM1 LISN MATE

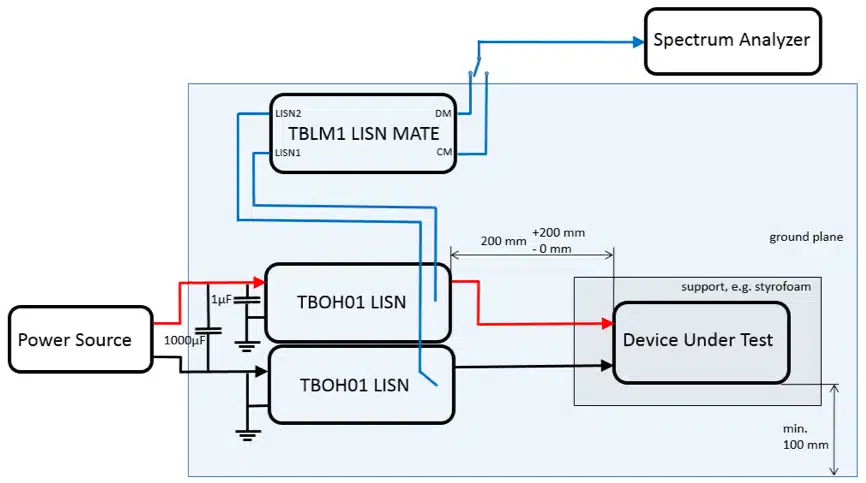

The Tekbox TBLM1 LISN Mate is a companion device for LISNs, which splits the conducted noise signal into its common mode and differential mode components. The LISN Mate is connected to the output of a LISN inserted into the positive supply line and to a second LISN inserted into the negative supply line.The conducted noise signal at the output of a LISN is the sum of common mode and differential mode noise. The LISN mate splits it into the common mode and differential mode components, with each signal component available at a separate BNC port.
Specifications:
- Frequency range: 30 kHz – 110 MHz
- Maximum RF level at any BNC port: 27dBm
- Maximum DC current at any BNC port: 30 mA
For more information: Tekbox
Click here for related products: LISN
