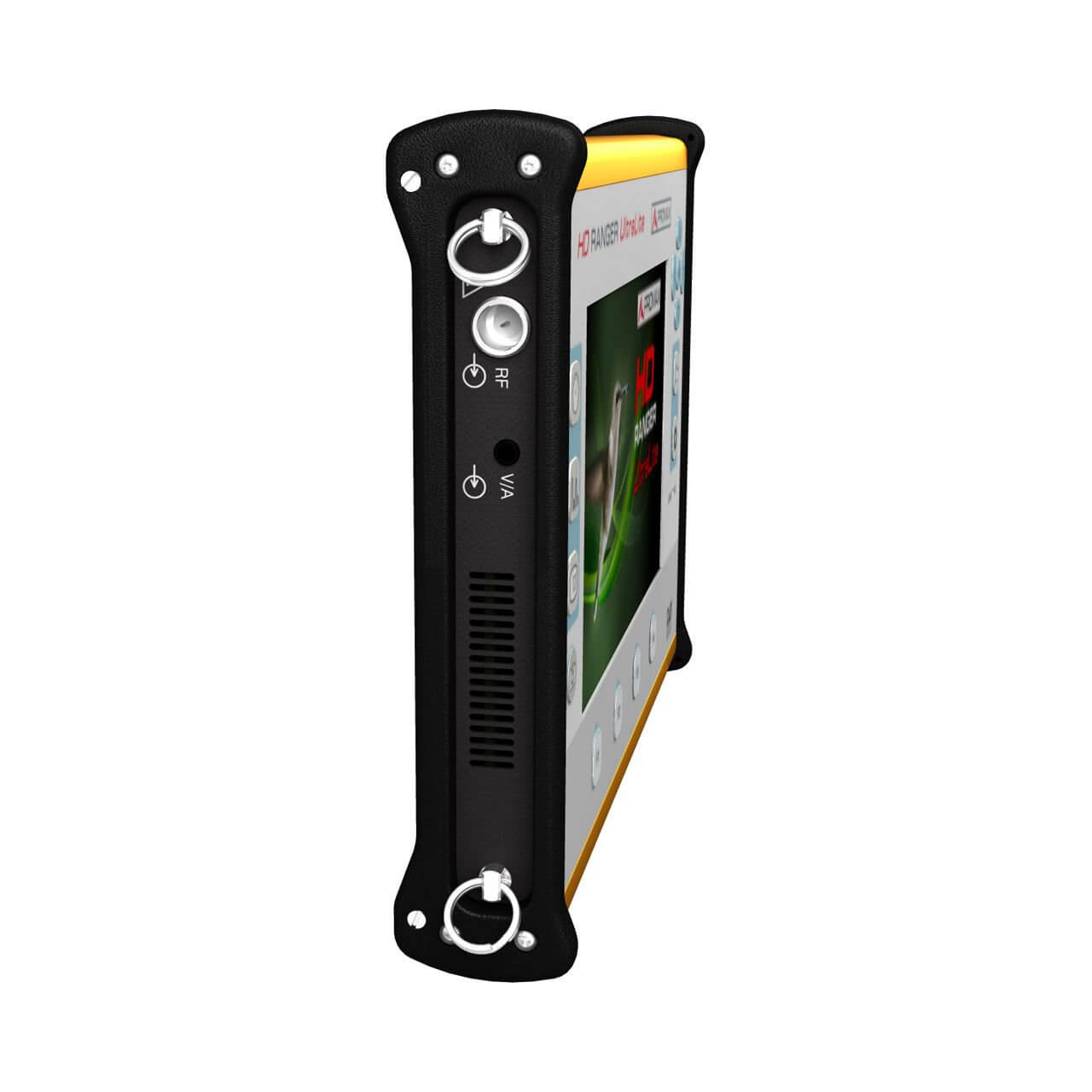

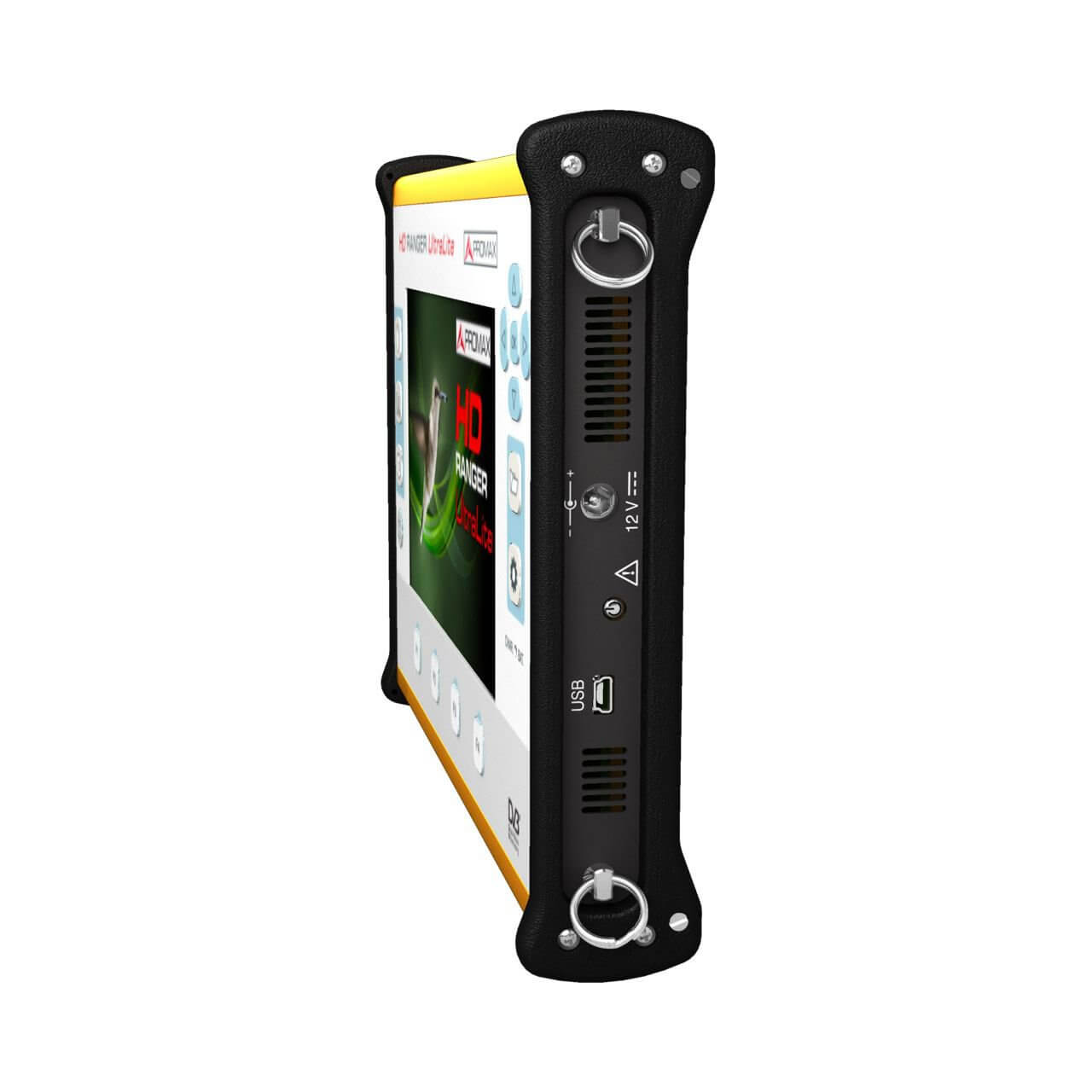

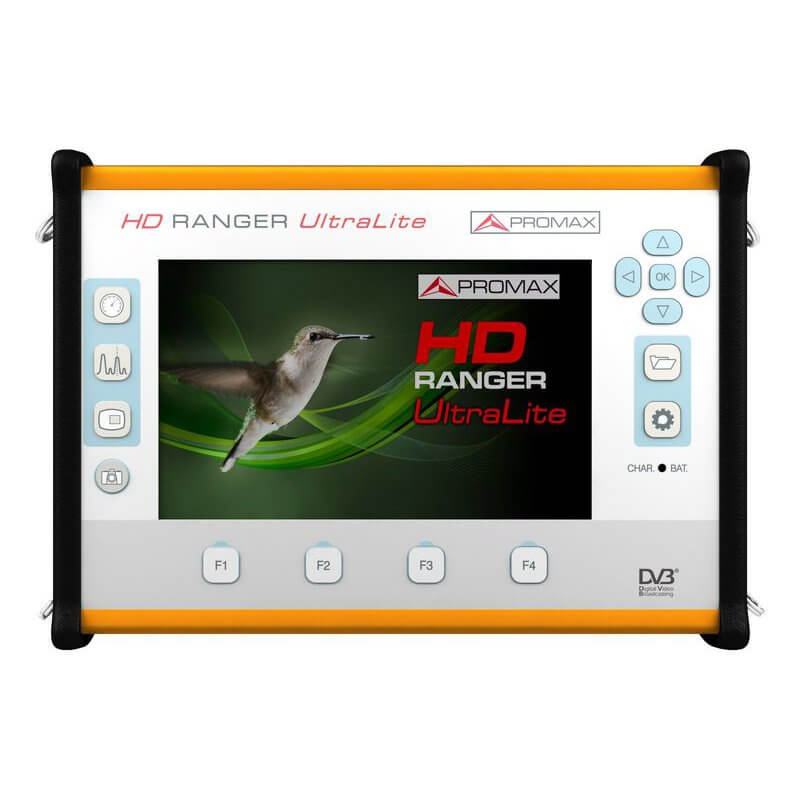

The HD RANGER UltraLite is a universal TV signal strength meter that covers a comprehensive mix of broadcast standards around the globe.
- Less weight and volume: 1.4 kg.
- Download measurement reports to your PC and install new functions in your analyser at no cost.
- It is handy and lightweight. Small and portable. A more transportable field strength meter.
- HD RANGER performance and speed.
Discover the possibilities
More information
Description
Promax HD RANGER Ultralite Tablet type TV & Satellite Analyzer (DVB)
The latest developments in broadcast technology such as DVB-T/T2, DVB-C/C2, DVB-S/S2 with MPEG-2 as well as MPEG-4 video are managed effortlessly by the product.The HD RANGER UltraLite is perfect for satellite installers: Built-in DVB-S and DVB-S2 satellite finder, digital decoder and signal analysis.
The introduction of the latest technology in the product allows you to display multiple screens either overlapped together or in a split screen format.
Specifications:
- Digital Standards:
- DVB-T, DVB-T2, DVB-T2 lite
- DVB-C, DVB-C2
- DVB-S, DVB-S2, DVB-S2 multistream
- DSS
- Video Codecs: MPEG-2, MPEG-4 H.264
- Audio Codecs: MPEG-1, MPEG-2, HE-AAC
- Inputs and Outputs:
- Universal RF connector 75 Ω
- Analogue Video/Audio input
- USB for data transferring
- Functions:
- Merogram and Spectrogram
- Constellation diagram
- LTE
- Dynamic echoes analysis
- StealthID (instant identification of tuning parameters)
- PLS (Physical Layer Scrambling)
- Ultra fast spectrum analyser (70 ms sweeping time) with MAX/MIN hold
- FM radio measurements and decoding
- Screenshots and Datalogger for measurement reports
- LTE 1.8 GHz
- DVB-S2 multistream
- Field strength
- Task planner
- Resolution Bandwidths:
- 100 kHz
- Options:
- DAB, DAB+
- GPS Coverage Analysis
- Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm
- Optical Power Meter + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input
- WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input
- PC Connection:
- NetUpdate 4 (free software)
- Free and automatic firmware updates
- User customised channel plans
- Measurement reports and screenshots
