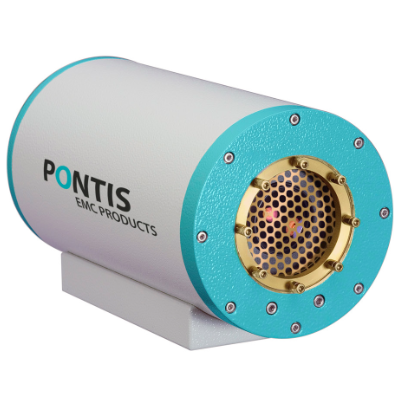

PONTIS EMC IRCam640 IR Thermo Camera
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- For surveillance of thermal critical areas
- Wide temperature range -20 °C to 900 °C @ ± 2 °C
- Wide area (19 * 12 m2)
- Fail safe contacts
%20%09Fail%20safe%20contacts%0A
){kind=link}
Discover the possibilities
More information
Description
PONTIS EMC IRCam640 IR Thermo Camera
The IRC640 is designed to observe the temperature of areas and devices in harsh electromagnetic environments (e.g. HVDC converter halls) or where low emission is required (e.g. EMC test facilities). The camera is covering an area of up to 19*12m2 at a distance 9.5 m. It is specially suited to survey temperature critical rooms and devices, where overheating can lead to severe damage.
There are digital out puts available with “fail safe” operation, which are set at overheating or when the camera fails to operate.
The controller offers an Ethernet port by which the camera can be controlled.
A comfortable PC software allows to set the parameters like region of interest and temperature thresholds. The camera is shielded up to 200 V/m. All signal lines are transferred via fibre optic cable.
Features
- RF-Immunity 200 V/m up to 18 GHz – Ethernet interface
- Comfortable PC software
- Fail safe contacts
Applications
- Temperature surveillance of absorbers in high field strength testing
- Survey device under test
Accessories
Required:
- Power supply: PSM22/PSB22
- IRCon5 converter with digital outputs
- Fibre optic cables
- Variable lengths ST/FSMA-connector
Optional:
- Tripods and wall mounts
Documents
PONTIS EMC IRCam640 IR Thermo Camera
PONTIS-EMC-IRCam640-DS-2018-05-29-ENOptions
