PONTIS EMC Con6 LAN-Pecos integrated Controller
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- For high demands in SD
- For max 4 Cameras
- Pecos = HW+SW integrated solution: LAN, DVR, HDD, PC, event detection
- ICT/WDR/LTE (difficult light condition)
- Additional features possible: Audio / interface bidirectio- nal to EMC Test SW
%20%09Additional%20features%20possible:%20Audio%20/%20in...
){kind=link}
Discover the possibilities
More information
Description

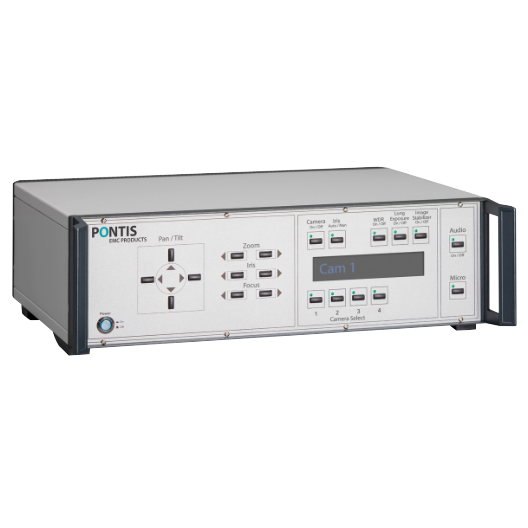

PONTIS EMC Con6 LAN-Pecos integrated Controller
Seamless user interface solution. The Audivo own Pecos solutions provides HW+SW that is integrated inside the controller: LAN, DVR with proactive recording and admininistration of files, as well as ICT/WDR/LTE for difficult light conditions (be it a EUT with display, obscurity, dark <=> bright close to each other).
The controller of series Con6_LAN-Pecos allows the local control via frontpanel of a maximum of four SD cameras (zoom, focus, pan, tilt) and of one audio channel. Via Pecos SW Tool the cameras can be fully controlled also via LAN. Monitors can be connected to cameras directly (raw, live) and/or in parallel also to the integrated PC board (splitted screen, Pecos)
Beyond that PONTIS‘ audio satellites can be connected to communicate uni- or bi-directionally.
Pecos also provides a bidirectional interface to EMC Test SW. Such data can be shown on sreen, recorded as video overlay. Pecos data can be sent back to Test SW to initiate reaction (e.g stop a test). Drivers come from EMC Test SW brands.
Features
- For PONTIS EMC SD cameras (Cam5 / Cam8)
- Fibre optic transmission of video and control signals
- Support of up to 4 cameras per controller
- Manual control of cameras Pan – Tilt and Zoom via Front keypad with self explaining buttons and/or via LAN-SW-tool
- ICT/WDR/LTE for difficult light conditions
- Pecos: integrated PC / HDD / DVR / customised event detection / snapshots / proactive recording - For details please see datasheet “Software PECOS”
- Option: interface to EMC Test SW
- FBAS video signals
- Compact housing: Desktop or Rack version (3 HU x 450 x 370 mm)
Accesories
required:
- 1 x SD Camera with Powersupply and Fibre optic cables
Optional:
- Audio integration into Controller
- Monitor: VGA or DVI
Documents
Options
PONTIS EMC Con6 LAN-Pecos integrated Controller
Con6h0n LAN-Pecos DVR ICT
Con6h0n LAN-Pecos DVR ICT AUD
Video
PONTIS EMC Con6 LAN-Pecos integrated Controller
Seamless user interface solution. The Audivo own Pecos solutions provides HW+SW that is integrated inside the controller: LAN, DVR with proactive recording and admininistration of files, as well as ICT/WDR/LTE for difficult light conditions (be it a EUT with display, obscurity, dark <=> bright close to each other).
The controller of series Con6_LAN-Pecos allows the local control via frontpanel of a maximum of four SD cameras (zoom, focus, pan, tilt) and of one audio channel. Via Pecos SW Tool the cameras can be fully controlled also via LAN. Monitors can be connected to cameras directly (raw, live) and/or in parallel also to the integrated PC board (splitted screen, Pecos)
Beyond that PONTIS‘ audio satellites can be connected to communicate uni- or bi-directionally.
Pecos also provides a bidirectional interface to EMC Test SW. Such data can be shown on sreen, recorded as video overlay. Pecos data can be sent back to Test SW to initiate reaction (e.g stop a test). Drivers come from EMC Test SW brands.
Features
- For PONTIS EMC SD cameras (Cam5 / Cam8)
- Fibre optic transmission of video and control signals
- Support of up to 4 cameras per controller
- Manual control of cameras Pan – Tilt and Zoom via Front keypad with self explaining buttons and/or via LAN-SW-tool
- ICT/WDR/LTE for difficult light conditions
- Pecos: integrated PC / HDD / DVR / customised event detection / snapshots / proactive recording - For details please see datasheet “Software PECOS”
- Option: interface to EMC Test SW
- FBAS video signals
- Compact housing: Desktop or Rack version (3 HU x 450 x 370 mm)
Accesories
required:
- 1 x SD Camera with Powersupply and Fibre optic cables
Optional:
- Audio integration into Controller
- Monitor: VGA or DVI
PONTIS EMC Con6 LAN-Pecos integrated Controller
Con6h0n LAN-Pecos DVR ICT
Con6h0n LAN-Pecos DVR ICT AUD
