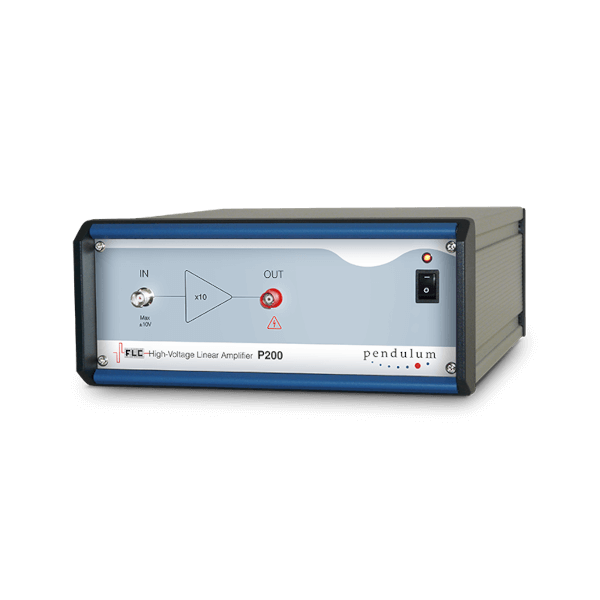

Pendulum P200 High Voltage High Current Linear Amplifier

Sale price0,00 DKK Price on quotation
Available

Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk


The Pendulum Instruments High Voltage High Current Linear Amplifier P200 has a fixed amplification of 10 times and capable of bipolar high voltage output of ±100V. Any signal source with amplitude up to ±10 V can be used as an input device. The input amplitude should normally be kept within ±10 V. The High Voltage High Current Linear Amplifier P200 is equipped with a microfuse rated at 15 mA, which will be blown if the input voltage exceeds 300% of the maximum.

Discover the possibilities

More information

Pendulum P200 High Voltage High Current Linear Amplifier


The Pendulum Instruments High Voltage High Current Linear Amplifier P200 has a fixed amplification of 10 times and capable of bipolar high voltage output of ±100V. Any signal source with amplitude up to ±10 V can be used as an input device. The input amplitude should normally be kept within ±10 V. The High Voltage High Current Linear Amplifier P200 is equipped with a microfuse rated at 15 mA, which will be blown if the input voltage exceeds 300% of the maximum.

The maximum capacitive load is set at the factory to 30 V/µs which yields the load limit of100 nF. The continuous output current limit is 1 A and the output power limit is ca 128 W.


Frequency response

Full and small-signal frequency responses without load (blue marks) and with 20 nF capacitive load (orange marks) and with 100 nF capacitive load (green and violet marks), respectively, are shown in the diagram below:
