Description

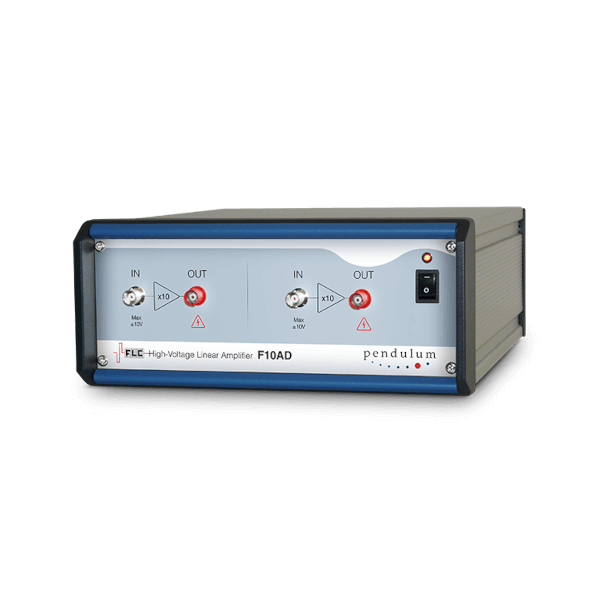

Pendulum F10AD Dual Channel High Voltage Linear Amplifier
The Pendulum Instruments Dual Channel High Voltage Linear Amplifier F10AD contains two independent F10A amplifiers that share common ground reference and power supply. This unit has a fixed amplification of 10 times and capable of bipolar high voltage output of ±100V.
Any signal source with amplitude up to ±10 V can be used as an input device. The input amplitude should normally be kept within ±10 V. The F10A High Voltage Linear Amplifier is equipped with a microfuse rated at 15 mA, which will be blown if the input voltage exceeds 300% of the maximum.
FREQUENCY RESPONSE
Full and small-signal frequency responses without load (red and orange marks) and with 400 pF capacitive load (blue and green marks), respectively, are shown in the diagram below:
Documents
Pendulum F10AD Dual Channel High Voltage Linear Amplifier
Pendulum F10AD Dual Channel High Voltage Linear Amplifier datasheetOptions
Video
Pendulum F10AD Dual Channel High Voltage Linear Amplifier
The Pendulum Instruments Dual Channel High Voltage Linear Amplifier F10AD contains two independent F10A amplifiers that share common ground reference and power supply. This unit has a fixed amplification of 10 times and capable of bipolar high voltage output of ±100V.
Any signal source with amplitude up to ±10 V can be used as an input device. The input amplitude should normally be kept within ±10 V. The F10A High Voltage Linear Amplifier is equipped with a microfuse rated at 15 mA, which will be blown if the input voltage exceeds 300% of the maximum.
FREQUENCY RESPONSE
Full and small-signal frequency responses without load (red and orange marks) and with 400 pF capacitive load (blue and green marks), respectively, are shown in the diagram below:
