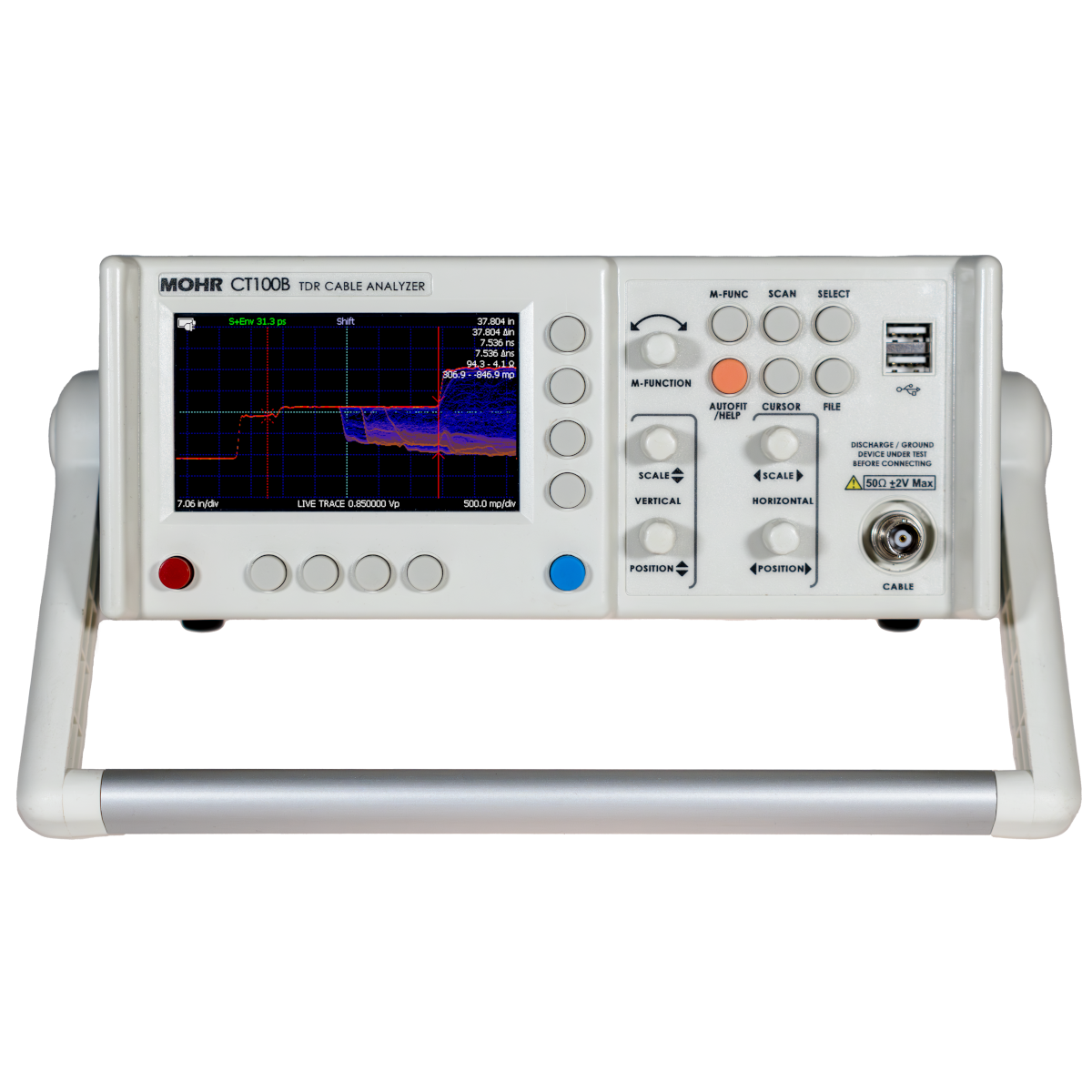

Mohr CT100B TDR Cable Analyzer
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
Limitless Applications
- Tests all types of cable and connectors
- Coaxial cable
- Twisted-pair cable
- Multiconductor cable (e.g. MIL-STD-1553B, MIL-STD-38999)
- Detects subtle partial faults, opens, shorts, kinks, taps, shield damage, thermal damage, sunlight/UV damage, water ingress, loosened or corroded interconnects, poor-quality cables and connectors.
- Aging Aircraft
- CATV, Power, Telephony
- Naval / Marine
- Wireless Infrastructure
- PCB Characterization
- Soil Moisture, Geophysics
%0A%0A%20%09Detects%20subtle%20partial%20faults,%20ope...
){kind=link}
Discover the possibilities
More information
Description
CT100B Features
- Sampling resolution is independent of display resolution --> every cable fault is visible at every scale
- Arbitrary length waveforms up to 1.5 million points
- Two independent cursors simplify differential impedance, return loss, and distance-to-fault measurements.
- Calibrated S-parameter measurements
- Real-time frequency-domain measurements
- Return loss (S11)
- Cable loss / insertion loss (S21)
- S11 Between Cursors time-windows the feature of interest
- Smith charts simplify complex impedance matching problems
- Normalized TDR traces with adjustable rise time
- Optimized menu system to simplify common tasks
- New multicore CPU is much faster than the original CT100
- 16 times more RAM memory than the CT100
Applications
- Tests all types of cable and connectors
- Coaxial cable
- Twisted-pair cable
- Multiconductor cable (e.g., MIL-STD-1553B, MIL-STD-38999)
- Detects subtle partial faults, opens, shorts, kinks, taps, shield damage, thermal damage, sunlight/UV damage, water ingress, loosened or corroded interconnects, and poor-quality cables and connectors.
- Aging Aircraft
- CATV, Power, Telephony
- Naval / Marine
- Wireless Infrastructure
- PCB Impedance Measurements
- Soil Moisture, Geophysics
- Tank Farms
Other Great Features of the CT100 TDRs
- Layer-Peeling reduces TDR waveform impedance errors caused by multiple reflections.
- Transform impedance waveform to display in Ohms or VSWR as well as millirho.
- Intermittent Fault Detection displays probability density or min/max envelope with impedance-at-cursor.
- Enhanced Calibration provides the industry's best impedance accuracy.
- AutoFit™ button scales the display to fit the cable.
- Configuration library makes repeat measurements as easy as a press of a button.
- Save thousands of TDR traces that you can later zoom in/out on, and compare or subtract from live or previously saved traces.
- Live LAN/WAN/Internet streaming and remote control of any CT100 Series TDR. Leverage real-time engineering oversight from thousands of miles away.
- Download your TDR data to a PC and review it later with the included CT Viewer™ 2 software.
Ergonomics and Ease of Use
- Bright 4.3" color TFT-LCD display is easy to read in any environment.
- Intuitive multifunction key panels simplify TDR use.
- Lightweight and portable, operates for a full shift without recharging.
- Integrated 10/100 Ethernet connectivity.
- USB peripherals include mouse, keyboard, flash drive, and barcode reader.
General TDR Options
- CT100B-BNC, self-grounding BNC test port
- Electrically rugged, multipurpose metallic TDR designed for high-resolution testing of a wide range of coaxial and twisted-pair cable types and lengths -- in the field, on the manufacturing floor, or in the lab. Exceeds all Tektronix® 1502C TDR specifications.
- CT100B-SMA, stainless-steel SMA test port
- CT100B TDR configured with SMA test port assembly. Improved data signal with slightly less electrical overstress protection than the standard CT100B.
- CT100HF, stainless-steel SMA test port
- Higher-bandwidth version of the CT100B-SMA featuring the fastest TDR system risetime for testing higher-frequency cables and interconnects.
How to choose between the CT100 models
Standard Accessories (included with instrument)
- CT Viewer™ 2 TDR Waveform Analysis Software Package
- CT100B Operator's Manual
- CT Viewer™ 2 Quick User Guide
- External AC Power Adapter
- 2700 mA-hr NiMH Battery Pack
- Rugged Soft-Sided Carrying Case
- Plenty of room for calibration accessories, manuals, and optional small form-factor keyboard.
- Calibration Verification Pack
- Precision coaxial test cable and BNC/SMA adapters necessary for verifying TDR instrument calibration and performance.
- NIST-Traceable Calibration Certificate
- Standard 12-Month Limited Warranty
Key Specifications
Industry's only high-resolution portable TDR - resolves connector detail (<1 cm separation)
(At least 8-10x sharper spatial resolution than competing TDR instruments [<100 ps rise time]; catch subtle changes before they cause system failure)
Industry's only portable TDR with frequency-domain measurements
(return loss [S11], cable loss [S21])
Much faster and easier to use than VNA with much better distance-to-fault precision and accuracy
(NO range/resolution/bandwidth tradeoffs, NO calibration drift)
Industry's most accurate impedance measurements
(16-bit ADC, advanced calibration features)
Industry's most accurate cable length measurements
(25 μm [0.76 ps] cursor resolution, 6-digit VoP)
Industry's fastest intermittent fault detection
(up to 250,000 samples per second, 500 Hz continuous full waveform capture)
