Mohr MIL-STD-1553B Data bus TRB adapter Kit
39.375,00 incl. VAT
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
Simplify Aging Aircraft Wiring Maintenance Using High-Resolution MOHR CT100 Series TDR Cable Analyzers
- Designed for use with the high-resolution CT100 TDR Cable Tester
- Ideal for TDR testing MIL-STD-1553B data bus aerospace cable assemblies
- Detect and localize open, short, and partial cable and connector faults on the main bus and stubs
- Detects cable and connector faults through 3+ transformer couplers
- Simplifies troubleshooting of aging aircraft MIL-STD-1553 cable assemblies
Discover the possibilities
More information
Description

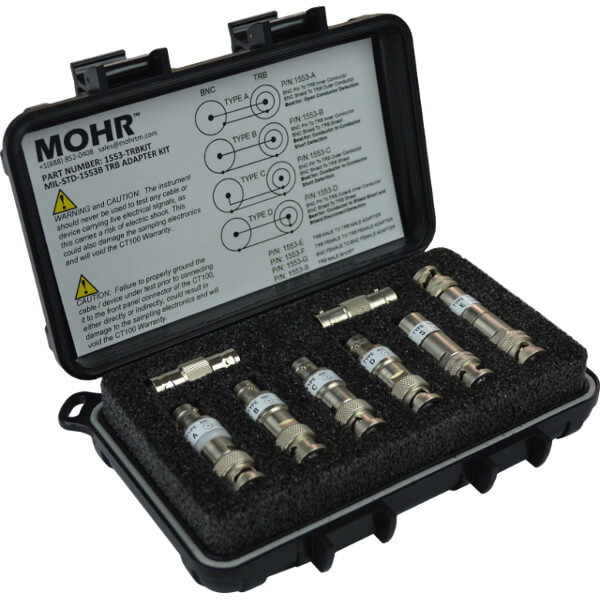

MIL-STD-1553B Data Bus TRB Adapter Kit for TDR
Simplify Aging Aircraft Wiring Maintenance Using High-Resolution
The MOHR MIL‐STD‐1553B TRB Adapter Kit provides the MOHR CT100 TDR with high‐bandwidth controlled‐impedance connections to aerospace MIL‐STD‐1553B data bus cables and other TRBterminated twinax and triax cablesKey features
- Designed for use with the high-resolution CT100 TDR Cable Tester
- Ideal for TDR testing MIL-STD-1553B data bus aerospace cable assemblies
- Detect and localize open, short, and partial cable and connector faults on the main bus and stubs
- Detects cable and connector faults through 3+ transformer couplers
- Simplifies troubleshooting of aging aircraft MIL-STD-1553 cable assemblies
Key Specifications
P/N: 1553-A
BNC Pin to TRB Inner Conductor
BNC Shield to TRB Outer Conductor
Best for open conductor and conductor-to-conductor short and partial fault detection
P/N: 1553-B
BNC Pin to TRB Inner Conductor
BNC Shield to TRB Shield
Best for individual conductor open, short, and partial fault detection
P/N: 1553-C
BNC Pin to TRB Outer Conductor
BNC Shield to TRB Shield
Best for individual conductor open, short, and partial fault detection
P/N: 1553-D
BNC Pin to TRB Inner & Outer Conductor
BNC Shield to TRB Shield
Best for conductor-to-shield short and shield fault detection
