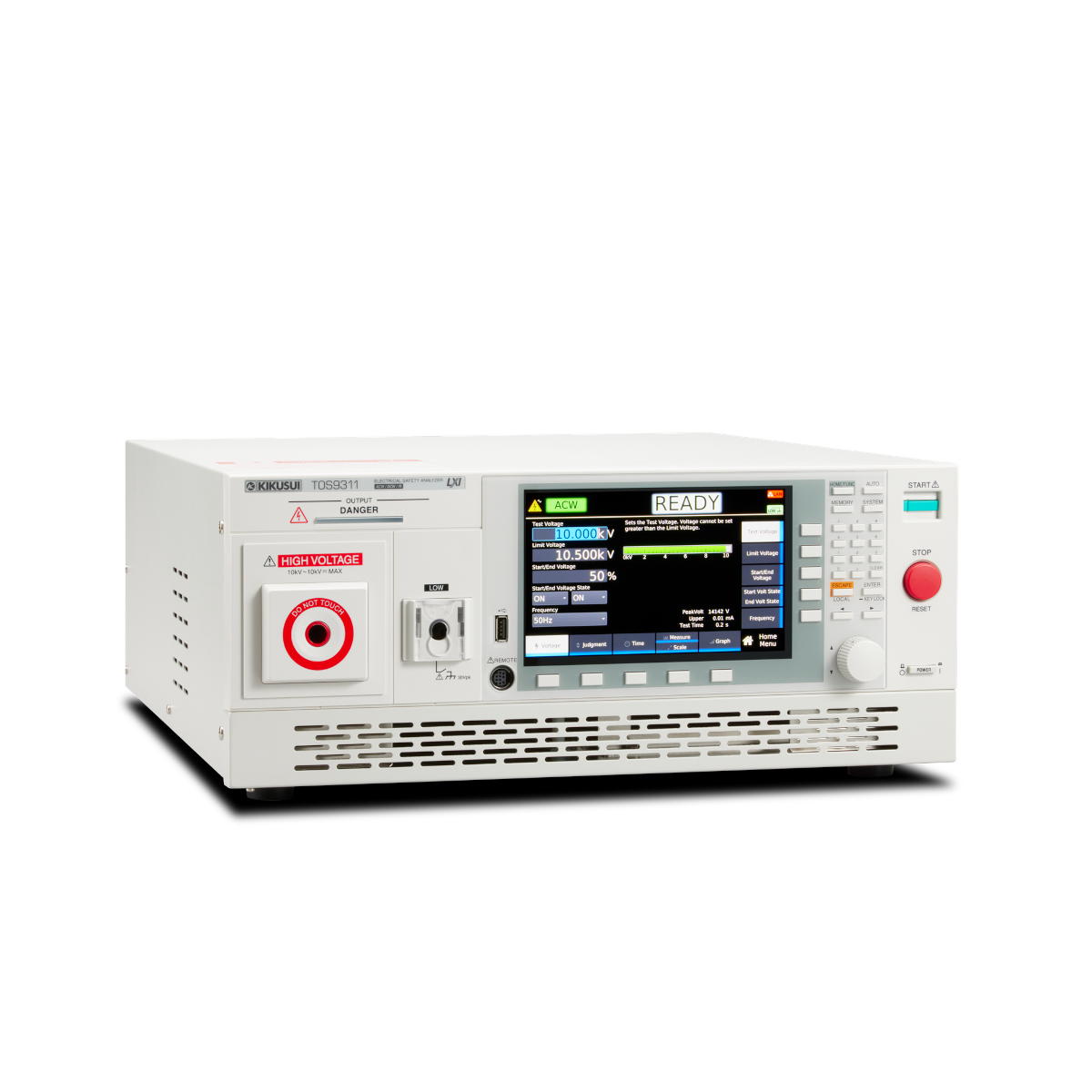

Kikusui TOS9311 Electrical Safety Multi-analyzer
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Even high-voltage models can conduct multiple tests. ACW/DCW/IR tests can all be performed with one unit.
- AC Withstanding Voltage Test: Maximum applied voltage: 10kV/50mA
- DC Withstanding Voltage Test: Maximum applied voltage: 5kV/20mA, 10kV/10mA (100W)
- Insulation Resistance Test Measurement Range: 0.001MΩ to 100.0GΩ (DC -25V to -1,000V / DC +50V to +10,000V)
- Withstanding voltage test supports quick NG (No Good) judgment: Detection sensitivity can be set in 5 levels
- LAN/USB/RS232C standard equipped
- Features a highly visible color LCD display that shows measurement values and standard details for each test.
Discover the possibilities
More information
Description
The TOS9300 series is a high-performance electrical safety analyzer that complies with a wide range of universal standards. Hipot, Insulation Resistance, Ground Bond, Leakage Current (touch current and protective conductor current) and partial discharge can all be tested. A total of 6 models are available for standard compliance tests for a wide variety of applications including R&D, quality assurance manufacturing lines and laboratory tests.
Color LCD Screen for Improved Visibility!
A brand-new, 7-inch LCD display allows for easy access to your custom settings, standard outlines and blueprints for easy operation.
User-Friendly, 10-Key Configuration
The TOS9300 series has included a user-friendly keypad in addition to the basic rotary knob for easy configuration setting. The front panel USB interface also allows for direct control via keyboard*.
LAN/USB/RS232C Standard Digital Interface
LXI compatible LAN, USB 2.0, USB-TMC compatible USB, and RS232C as standard digital interface.
I/V Monitor Terminal (Analog Monitor)
Signal outputs on the rear panel I/V terminal allow the user to monitor current/voltage waveforms during hipot tests with only an oscilloscope. Current sensors and high-voltage probes are not required.
STATUS OUT Connector
Signals from the rear panel STATUS connector automatically activate the optional warning light (PL02-TOS) during high voltage output or unsafe test conditions.
SIGNAL I/O Connector
The rear panel also has a SIGNAL I/O that can start/stop operation as well as output signals.
