A standard feature of the networking capability provides extended applications of the ordinary testing.

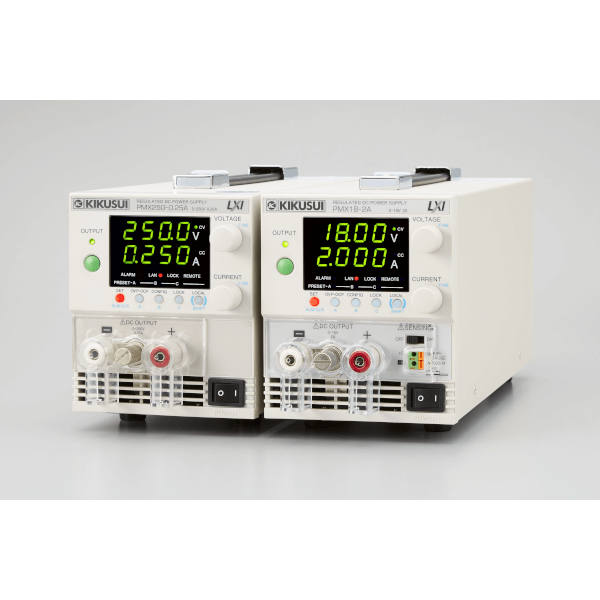

The Kikusui PMX-A series is a compact, high-performance DC power supply that provides constant voltage (CV) and constant current (CC). It is designed to improve working efficiency for benchtop uses. For this purpose, the output terminals are located on the front panel and are ergonomically designed so that wiring harnesses for electrical loads can be connected by moving your fingers naturally. Moreover, a forced air cooling system is used to intake and exhaust of the internal air, so the unit can be rack mounted without space. Furthermore, the Kikusui PMX-A is equipped with LAN, USB, and RS232C interfaces as standard interfaces required for system operation. In particular, the LAN interface enables you to control and monitor the power supply from Web browsers on PCs, smartphones, tablets, and other terminal devices. Moreover, the Kikusui PMX-A is LXI(LAN eXtensions for Instrumentation) compliant instrument, so it can be connected easier with your measurement system using LAN interface. The Kikusui PMX-A is also equipped with remote sensing (for 18V, 35V models only), analog external control/monitoring output, various protective functions, memory function, and other functions.

Features

Sequence Creation Software SD025-PMX (Wavy for PMX)


The software that supports to the auto testing of the power supply. And it allows you to create and edit sequence data easily using a mouse!

The SD025-PMX (Wavy for PMX) is an application software that supports sequence creation and the operation of the Kikusui power supplie and the electronic load. The “ Wavy” software allows you to create and edit sequences visually using a mouse without programming knowledge. It enables you to control the power supply in much the same way as remote controller for such monitoring the voltage and current, logging and so on.

Operating environment, conditions

• The “Wavy” software can control only one unit of the power supply
• CPU: Recommended: Core2 or better
• CD-ROM: Reguired to install the “Wavy”
• Mouse: Reguired
• Monitor: 1024 x 768 dots or higher resolution
• Memory: 2GB or more
• Interfaces: LAN, USB, RS232C

Digital Interfaces

USB Interface

The USB interface has a feature of high versatility, and the ease of a setup. The automatic recognition by the plug and play releases a user from the complex setting operation under the digital control, and it can be suitable interface when control by 1:1. In accordance with the standard, the maximum number of the connected devices can be configured up to 127 units. Moreover, the USB interface of the PWX series complies to USB2.0, and it has realized transmission speed of a maximum of 12Mbps (es) (Full Speed).


LAN Interface
The LAN interface can control the number of devices with high speed, and it’s theoretical controllable maximum number is to be calculated by approximately 4.2 billion. (The maximum transmission speed varies by the number of connected devices) In accordance with its applied standard, it is possible to combine the device that is to control or to be controlled, it is also the feature that it can be used with various applications. Also, in computers installed with Apple Bonjour, it is possible to access with a host name instead of the IP address.
