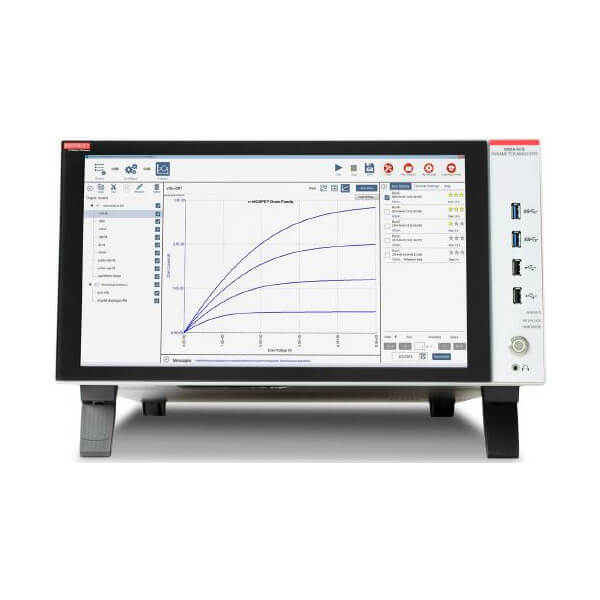

Keithley 4200A I-V Parameter Analyzer
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
The 4200A-SCS is a modular, customizable, and fully-integrated parameter analyzer that provides synchronized insight into current-voltage (I-V), capacitance-voltage (C-V), and ultra-fast pulsed I-V electrical characterization. Its optional 4200A-CVIV Multi-switch Module enables effortless switching between I-V and C-V measurements without re-cabling or lifting prober needles. The highest performance analyzer, the 4200A-SCS accelerates testing of complex devices for materials research, semiconductor device design, process development, or production.
,%20capacitance-voltage%20(C-V),%20and%20ultra-fast%20pulsed%20I-V...
){kind=link}
Discover the possibilities
More information
Description
Tektronix 4200A I-V Parameter Analyzer
The 4200A Parameter Analyzer is completely customizable and fully upgradable, so you can add the instruments you need now – or later. With the 4200A Parameter Analyzer, making connections to your bold discoveries has never been easier.
Features | Benefits |
| Completely integrated mainframe with source measure units, C-V unit, and ultra-fast pulsed I-V unit | Perform I-V characterization, AC impedance measurements, waveform capture, and transient I-V measurements with speed, clarity, and confidence |
| Clarius™ GUI-based Software with touch-and-swipe or point-and-click control | Enables advanced test definition, parameter analysis, graphing, and automation capabilities for clear, uncompromised measurement and analysis |
| Built-in, context-sensitive measurement videos and over 450 application tests | Jumpstart testing and provide measurement assistance and troubleshooting guidance |
| I-V source measurement unit (SMU) | ±210 V / 100 mA or ±210 V / 1 A modules, 100 fA measure resolution, and 0.1 fA measure resolution with optional preamp |
| C-V multi-frequency capacitance unit (CVU) | AC impedance measurements (C-V, C-f, C-t), 1 kHz – 10 MHz frequency range |
| I-V/C-V multi-switch module (CVIV) | Easily switch between I-V and C-V measurements or move the C-V measurement to any terminal without re-cabling or lifting prober needles |
| Pulsed I-V ultra-fast pulse measure unit (PMU) | Two independent or synchronized channels of high-speed pulsed I-V source and measure; 200 MSa/sec, 5 ns sampling rate; extend current sensitivity to tens of picoamps with optional preamp |
| High voltage pulse generator unit (PGU) | Two channels of high-speed pulsed V source; ±40 V (80 V p-p), ±800 mA |
| Completely customizable and fully upgradable | Add only the instruments needed now – or later |
Documents
Tektronix 4200A I-V Parameter Analyzer
Tektronix 4200A DatasheetOptions
Tektronix 4200A I-V Parameter Analyzer
| Datasheet | Module | Description |
|---|---|---|
| View Datasheet | 4200-BTI-A | ULTRA FAST BTI PKG |
| View Datasheet | 4200-PA | REMOTE PREAMPLIFIER MODULE |
| View Datasheet | 4200-SMU | MEDIUM POWER SOURCE-MEASURE UNIT |
| View Datasheet | 4200A-CVIV | I-V/C-V MULTI-SWITCH MODULE |
| View Datasheet | 4210-CVU | CAPACITANCE-VOLTAGE UNIT |
| View Datasheet | 4210-SMU | HIGH POWER SOURCE-MEASURE UNIT |
| View Datasheet | 4220-PGU | HIGH VOLTAGE PULSE GENERATOR UNIT |
| View Datasheet | 4225-PMU | ULTRA-FAST PULSE MEASURE UNIT |
| View Datasheet | 4225-RPM | REMOTE PREAMPLIFIER/SWITCH MODULE |
