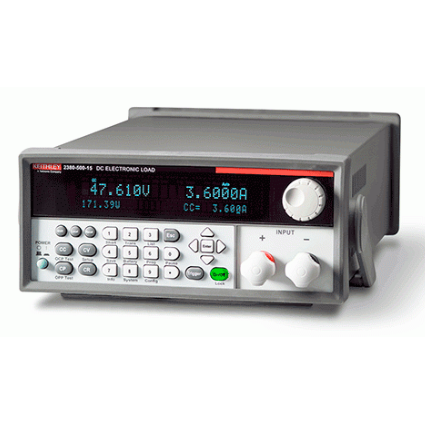

Keithley 2380 series DC Electronic Load
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
Features
- Multiple operation modes: constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CP)
- 0.1 mV/0.01mA voltage/current readback resolution and 0.025%/0.05% voltage/current readback accuracy
- Up to 25 kHz dynamic cycling mode with adjustable slew rate
- List mode with up to 7 groups of list files
- Diverse test modes: battery test mode, LED simulated load test mode, voltage rise/fall time measurement mode, over current/power protection test mode
- Multiple built-in protection functions: over temperature protection(OTP), over voltage protection(OVP), over current protection(OCP), over power protection(OPP), reverse voltage protection(RVP)
- Built-in GPIB, USB, RS232 interfaces
,%20constant%20voltage%20(CV),%20constant%20resistance%20(CR),%20and%20constant%20power%20(CP)%20%090.1%20mV/0.01mA%20voltage/current%20readback%20resolution%20and%200.025%25/0.0...
){kind=link}
Discover the possibilities
More information
Description
Keithley 2380 series DC Electronic Load
Compact standalone DC Electronic Loads with excellent performance at an affordable priceSeries 2380 programmable DC Electronic Loads are single output, standalone loads with 200W, 250W and 750W models. Multiple operation modes with up to 25 kHz of dynamic cycling, superior voltage/current resolution and readback accuracy together with multiple interface choices make the Series 2380 ideal for testing a power source in your bench.
Documents
Keithley 2380 series DC Electronic Load
2380-DataSheetOptions
Keithley 2380 series DC Electronic Load
| Model | Number of Outputs | Maximum Voltage | Maximum Current | Connectivity | Operation Modes | List Price |
|---|---|---|---|---|---|---|
| 2380-120-60 | 1 | 120 V | 60 A | GPIB, USB, RS232 | CV, CC, CR, CP | Configure & Quote |
| 2380-500-15 | 1 | 500 V | 15 A | GPIB, USB, RS232 | CV, CC, CR, CP | Configure & Quote |
| 2380-500-30 | 1 | 500 V | 30 A | GPIB, USB, RS232 | CV, CC, CR, CP | Configure & Quote |
Video
Keithley 2380 series DC Electronic Load
Compact standalone DC Electronic Loads with excellent performance at an affordable priceSeries 2380 programmable DC Electronic Loads are single output, standalone loads with 200W, 250W and 750W models. Multiple operation modes with up to 25 kHz of dynamic cycling, superior voltage/current resolution and readback accuracy together with multiple interface choices make the Series 2380 ideal for testing a power source in your bench.
Keithley 2380 series DC Electronic Load
2380-DataSheetKeithley 2380 series DC Electronic Load
| Model | Number of Outputs | Maximum Voltage | Maximum Current | Connectivity | Operation Modes | List Price |
|---|---|---|---|---|---|---|
| 2380-120-60 | 1 | 120 V | 60 A | GPIB, USB, RS232 | CV, CC, CR, CP | Configure & Quote |
| 2380-500-15 | 1 | 500 V | 15 A | GPIB, USB, RS232 | CV, CC, CR, CP | Configure & Quote |
| 2380-500-30 | 1 | 500 V | 30 A | GPIB, USB, RS232 | CV, CC, CR, CP | Configure & Quote |
