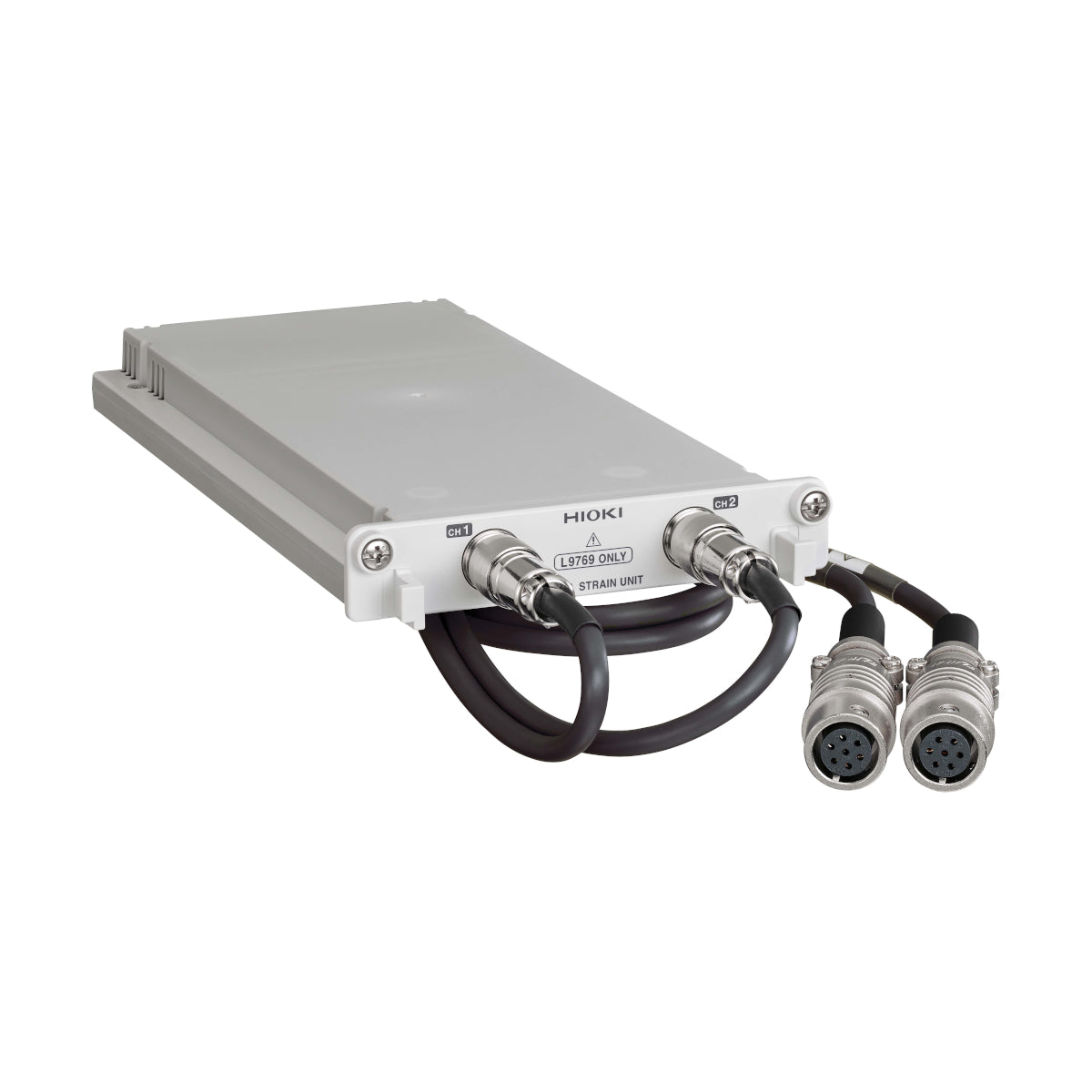

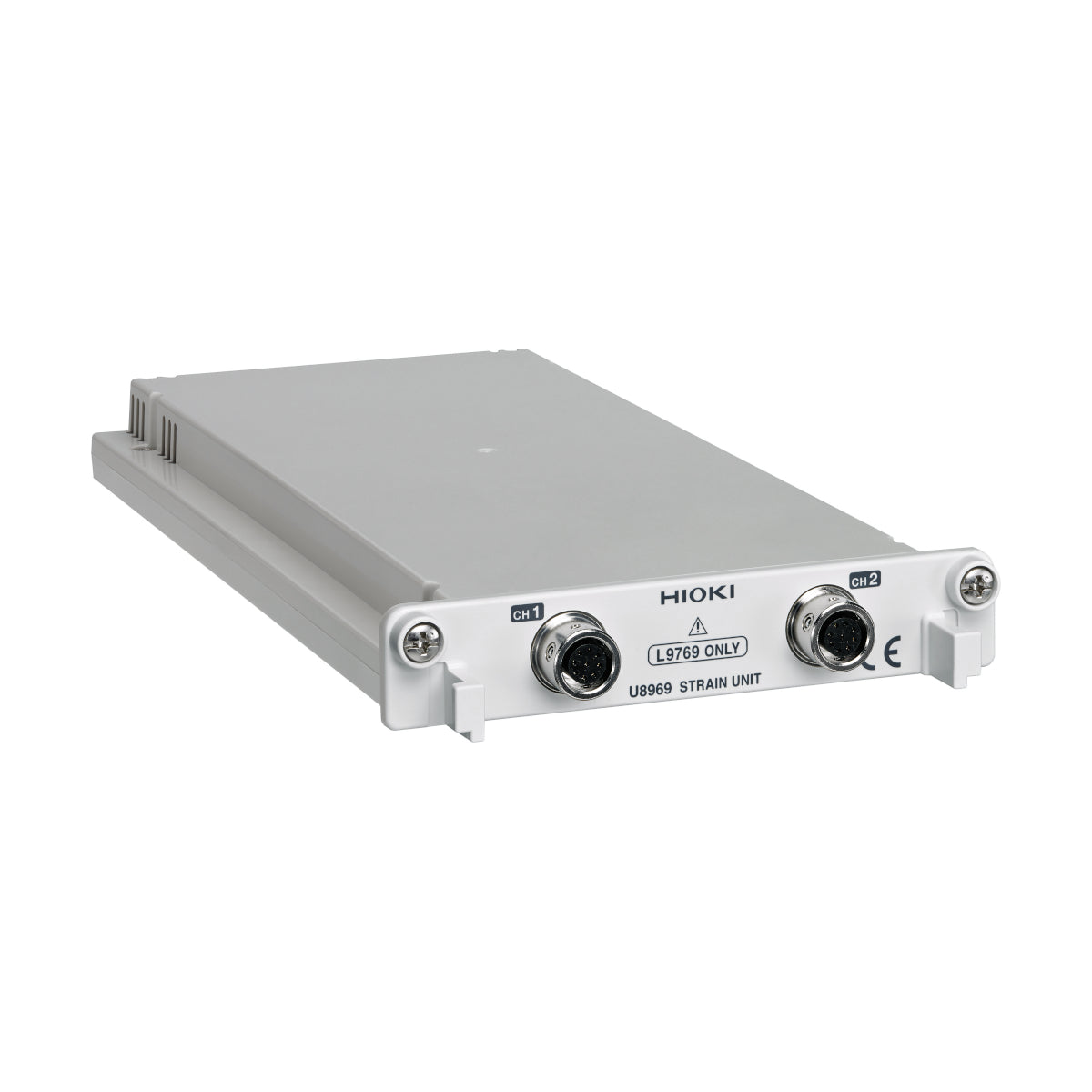

Hioki U8969 Strain Unit
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
Measure acceleration, load, pressure, or strain waveforms
Discover the possibilities
More information
Description
Key Features
- Directly connect to the strain gauge transducer (bridge voltage: DC only)
- Isolated 2 channel input
- Max. rated voltage to ground: 30 V rms or 60 V DC
- High 16-bit A/D resolution
- Use in combination with the MEMORY HiCORDER series (MR6000, MR8847A, MR8827, etc.)
- Meet application demands in the civil engineering, bridge building and machine tool, and automotive design fields
Supports strain gauge type transducers
Measurement example:
A torque sensor (strain-gage-type transducer) is connected to the Strain Unit U8969 to measure torque.
FFT analysis is performed on the measured torque signal to analyze the frequency components.
Specifications
Basic specifications
Accuracy guaranteed: 1 year
| Measurement functions | Number of channels: 2, for distortion measurement (electronic auto-balancing, balance adjustment range within ±10 000 µε or less) | |||||
|---|---|---|---|---|---|---|
| Input terminals | NDIS connector EPRC07-R9FNDIS (via Conversion Cable L9769, NDIS connector PRC03-12A10-7M10.5) Max. rated voltage to ground: 30 V rms or 60 V DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage) | |||||
| Suitable transducer | Strain gauge converter, Bridge impedance: 120 Ω to 1 kΩ, Bridge voltage: 2 V ±0.05 V, Gauge rate: 2.0 | |||||
| Measurement range | 20 µε to 1000 µε/div, 6 ranges, full scale: 20 div, Low-pass filter: 5/10/100 Hz, 1 kHz | |||||
| Measurement resolution | 1/1250 of measurement range (using 16-bit A/D conversion) | |||||
| Maximum sampling rate | 200 kS/s (simultaneous sampling across 2 channels) | |||||
| Measurement accuracy After auto-balancing | ±0.5% f.s. ±4 µε (5 Hz filter ON) | |||||
| Frequency characteristics | DC to 20 kHz +1/-3 dB | |||||
| Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 245 g (8.6 oz) | |||||
| Included accessories | Conversion cable L9769 × 2 (cable length 60 cm/1.97 ft) | |||||
Documents
Options
Video
Key Features
- Directly connect to the strain gauge transducer (bridge voltage: DC only)
- Isolated 2 channel input
- Max. rated voltage to ground: 30 V rms or 60 V DC
- High 16-bit A/D resolution
- Use in combination with the MEMORY HiCORDER series (MR6000, MR8847A, MR8827, etc.)
- Meet application demands in the civil engineering, bridge building and machine tool, and automotive design fields
Supports strain gauge type transducers
Measurement example:
A torque sensor (strain-gage-type transducer) is connected to the Strain Unit U8969 to measure torque.
FFT analysis is performed on the measured torque signal to analyze the frequency components.
Basic specifications
Accuracy guaranteed: 1 year
| Measurement functions | Number of channels: 2, for distortion measurement (electronic auto-balancing, balance adjustment range within ±10 000 µε or less) | |||||
|---|---|---|---|---|---|---|
| Input terminals | NDIS connector EPRC07-R9FNDIS (via Conversion Cable L9769, NDIS connector PRC03-12A10-7M10.5) Max. rated voltage to ground: 30 V rms or 60 V DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage) | |||||
| Suitable transducer | Strain gauge converter, Bridge impedance: 120 Ω to 1 kΩ, Bridge voltage: 2 V ±0.05 V, Gauge rate: 2.0 | |||||
| Measurement range | 20 µε to 1000 µε/div, 6 ranges, full scale: 20 div, Low-pass filter: 5/10/100 Hz, 1 kHz | |||||
| Measurement resolution | 1/1250 of measurement range (using 16-bit A/D conversion) | |||||
| Maximum sampling rate | 200 kS/s (simultaneous sampling across 2 channels) | |||||
| Measurement accuracy After auto-balancing | ±0.5% f.s. ±4 µε (5 Hz filter ON) | |||||
| Frequency characteristics | DC to 20 kHz +1/-3 dB | |||||
| Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 245 g (8.6 oz) | |||||
| Included accessories | Conversion cable L9769 × 2 (cable length 60 cm/1.97 ft) | |||||
