Hioki U8555 CAN Unit
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- CAN/CAN FD input or output
Discover the possibilities
More information
Description
Key Features
- CAN/CAN FD input and output switchable
- Max. sampling 10 ms (up to 50 ch)
- Up to 500 ch measurement (at 100 ms)
Banner Specs
- Input and output of CAN and CAN FD signals
- 2 ports freely configurable as input or output
- Max. 10 ms update interval
- Supports CAN (ISO11898), CAN FD (ISO11898), CAN FD (non-ISO)
Applications
- Monitoring of in-vehicle network data from various electronic control units (ECUs) during vehicle testing and development phases
- Troubleshooting and optimization of industrial processes by logging CAN-based communication between industrial controllers and devices
- Monitoring of data transmission between avionics systems in aerospace applications
- Recording of analog data, e.g. voltage, temperature, current, etc. and output as CAN signals
In detail:

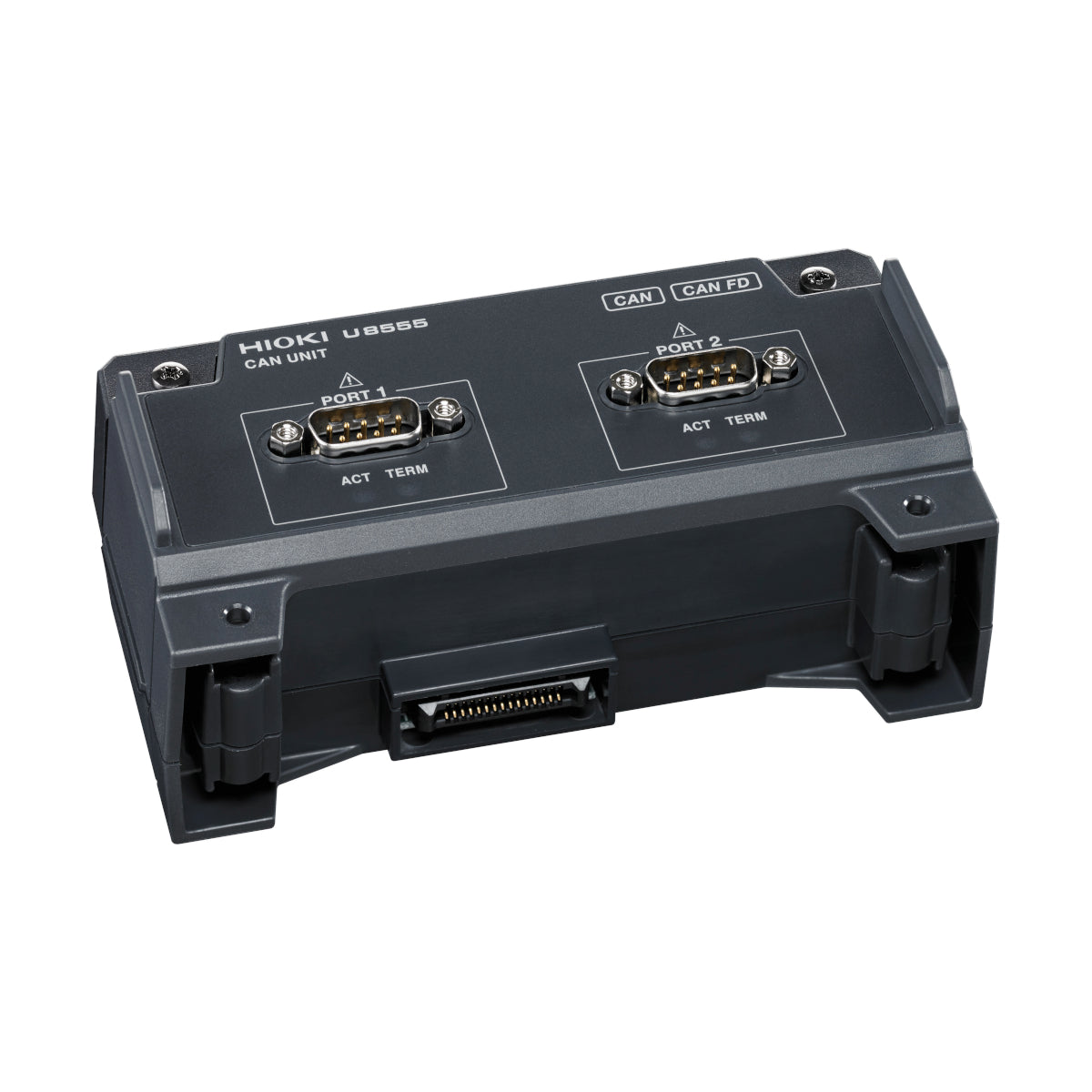

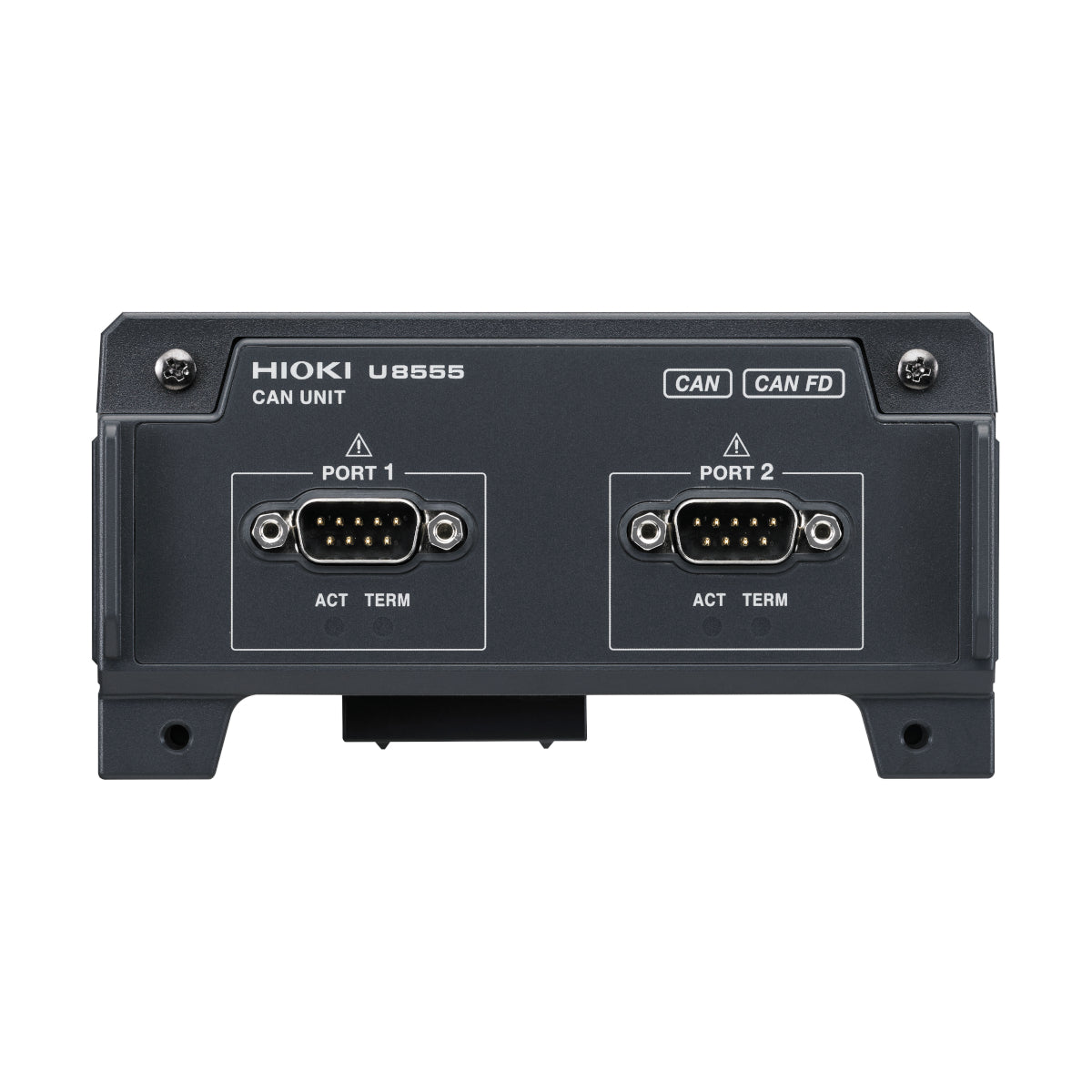

The U8555 CAN Module is a plug-in module for the LR8450 Data Logger Series. Up to four U8555 modules can be connected to a single LR8450 or LR8450-01 Data Logger. Featuring two configurable ports that can work as either input or output, this module supports up to 500 channels/port and delivers a maximum update interval of 10 ms, depending on the number of channels used. It features two D-sub 9-pin male connectors and is compatible with key protocols, including CAN (ISO 11898) and CAN FD in both ISO and non-ISO formats.All measurement data recorded with other modules of the LR8450, e.g. voltage, temperature, current, strain, etc. can be output as CAN data.
This module is ideal for monitoring data from electronic control units within in-vehicle networks during automotive testing and development. It also plays a crucial role in troubleshooting and optimizing industrial processes by capturing CAN-based communication between controllers and devices. In aerospace applications, the U8555 module ensures reliable data transmission between avionics systems, making it an essential tool for highperformance data logging and analysis.
Specifications
Basic specifications
| Connectable instruments | Memory HiLogger LR8450 (Designed for use with plug-in units only) Memory HiLogger LR8450-01 (Wireless LAN model) | |||||
|---|---|---|---|---|---|---|
| Operating temperature and humidity | -10°C to 50°C, 80% RH or less (no condensation) | |||||
| Storage temperature and humidity | -20°C to 60°C, 80% RH or less (no condensation) | |||||
| Vibration resistance | JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent | |||||
| Included accessories | Instruction manual × 1, mounting screw × 2 | |||||
| Input terminals | D-sub 9 pin MALE × 2 | |||||
| Operation mode | Supports switching between receive mode and measured value output mode | |||||
| Receive mode | No. of measurement channels: Max. 500 channels (max. 500 signals) | |||||
| Measured values output mode | Convert LR8450 measured values and output them as CAN frames. | |||||
| Protocols supported | CAN (ISO11898) CAN FD (ISO11898) CAN FD (non-ISO) | |||||
| Physical layer | ISO11898 (High Speed) | |||||
Documents
Information:
Options
Video
Key Features
- CAN/CAN FD input and output switchable
- Max. sampling 10 ms (up to 50 ch)
- Up to 500 ch measurement (at 100 ms)
Banner Specs
- Input and output of CAN and CAN FD signals
- 2 ports freely configurable as input or output
- Max. 10 ms update interval
- Supports CAN (ISO11898), CAN FD (ISO11898), CAN FD (non-ISO)
Applications
- Monitoring of in-vehicle network data from various electronic control units (ECUs) during vehicle testing and development phases
- Troubleshooting and optimization of industrial processes by logging CAN-based communication between industrial controllers and devices
- Monitoring of data transmission between avionics systems in aerospace applications
- Recording of analog data, e.g. voltage, temperature, current, etc. and output as CAN signals
In detail:
The U8555 CAN Module is a plug-in module for the LR8450 Data Logger Series. Up to four U8555 modules can be connected to a single LR8450 or LR8450-01 Data Logger. Featuring two configurable ports that can work as either input or output, this module supports up to 500 channels/port and delivers a maximum update interval of 10 ms, depending on the number of channels used. It features two D-sub 9-pin male connectors and is compatible with key protocols, including CAN (ISO 11898) and CAN FD in both ISO and non-ISO formats.All measurement data recorded with other modules of the LR8450, e.g. voltage, temperature, current, strain, etc. can be output as CAN data.
This module is ideal for monitoring data from electronic control units within in-vehicle networks during automotive testing and development. It also plays a crucial role in troubleshooting and optimizing industrial processes by capturing CAN-based communication between controllers and devices. In aerospace applications, the U8555 module ensures reliable data transmission between avionics systems, making it an essential tool for highperformance data logging and analysis.
Basic specifications
| Connectable instruments | Memory HiLogger LR8450 (Designed for use with plug-in units only) Memory HiLogger LR8450-01 (Wireless LAN model) | |||||
|---|---|---|---|---|---|---|
| Operating temperature and humidity | -10°C to 50°C, 80% RH or less (no condensation) | |||||
| Storage temperature and humidity | -20°C to 60°C, 80% RH or less (no condensation) | |||||
| Vibration resistance | JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent | |||||
| Included accessories | Instruction manual × 1, mounting screw × 2 | |||||
| Input terminals | D-sub 9 pin MALE × 2 | |||||
| Operation mode | Supports switching between receive mode and measured value output mode | |||||
| Receive mode | No. of measurement channels: Max. 500 channels (max. 500 signals) | |||||
| Measured values output mode | Convert LR8450 measured values and output them as CAN frames. | |||||
| Protocols supported | CAN (ISO11898) CAN FD (ISO11898) CAN FD (non-ISO) | |||||
| Physical layer | ISO11898 (High Speed) | |||||
