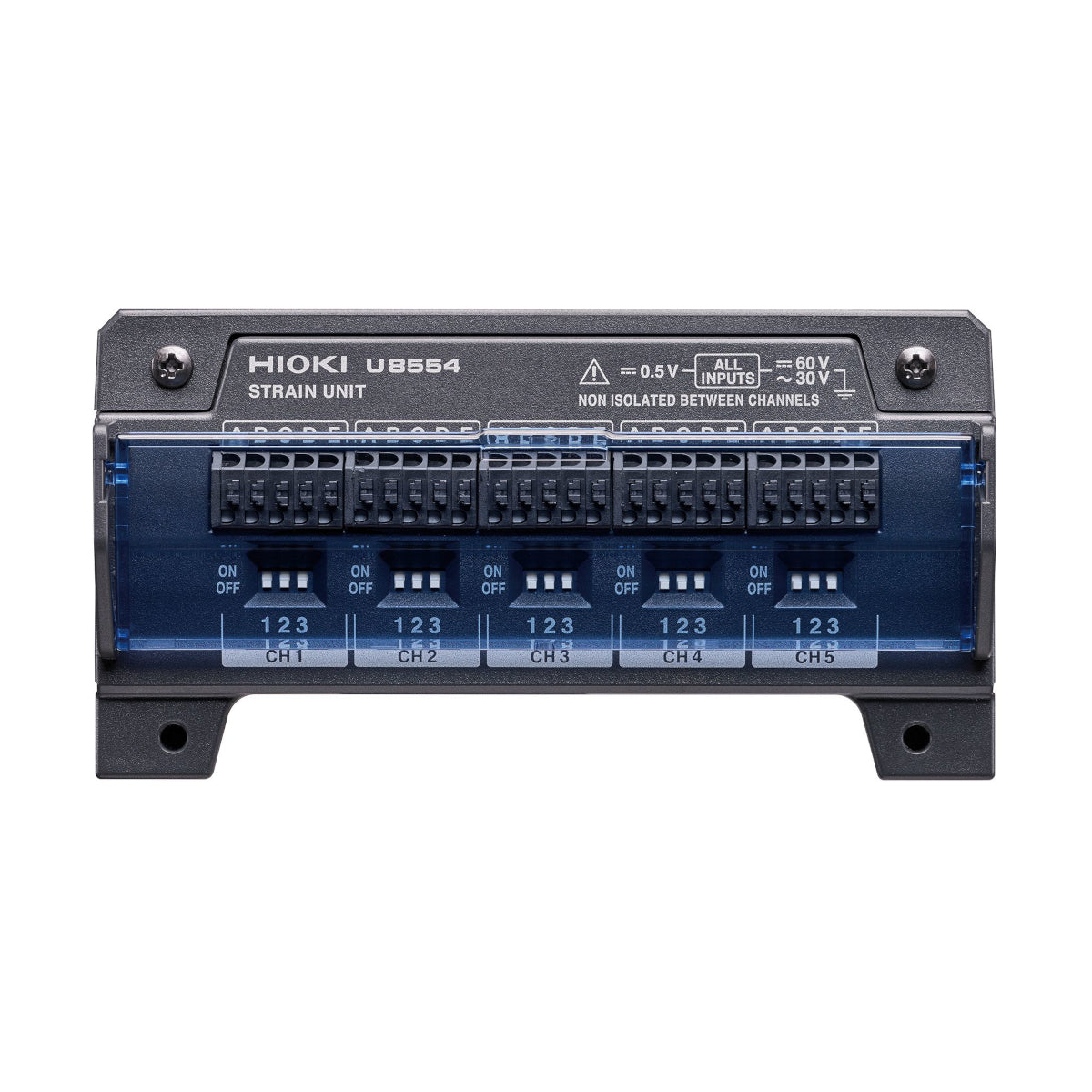

Hioki U8554 Strain Unit
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- 5 input channels for strain gauges
- 1 ms update interval
- A/D resolution: 16 bits
- 1-gauge method (2-wire & 3-wire setup), 2-gauge method (adjacent sides), 4-gauge method
,%202-gauge%20method%20(adjacent%20sides),%204-gauge%20method%C2%A0%0A
){kind=link}
Discover the possibilities
More information
Description
5-channel plug-in interface module for LR8450 Data Logger Series, update interval 1 ms, for strain gauges, 16 bits, 1/2/4-gauge method, spring-cage terminal block
Applications:
- Durability and performance testing by evaluating stress and strain on vehicle components under different load conditions
- Analysis of the mechanical properties of materials by measuring strain during tensile, compressive, or fatigue tests
- Safety and compliance testing through assessment of strain on aircraft structures and components
- Failure prevention and predictive maintenance by monitoring strain in machinery and equipment
The U8554 Strain Module is a 5-channel plug-in module for the LR8450 Data Logger Series. Up to four U8554 modules can be connected to a single LR8450 or LR8450-01 Data Logger, allowing users to record strain data from up to 20 channels in a single device.
This module supports measurement of strain by using strain gauges or strain gauge transducers. Input signals are connected to the module through a spring-cage terminal block, providing a quick and secure, vibration-resistant connection. The module allows to measure strain with the 1-gauge method – 2- or 3-wire setup. For applications requiring higher accuracies the 2-gauge or 4-gauge methods can be used. The U8554 module offers a fast update interval of 1 ms for all 5 channels simultaneously, making it ideal for dynamic and high-speed applications.
With a 16-bit A/D resolution, the U8554 delivers high-precision data acquisition. The module offers eight strain measurement ranges, from ±1000 µꜫ to ±200 000 µꜫ, ensuring accurate readings across a variety of applications. In addition, the module can be used for the measurement of voltages offering ranges from 1 mV to 200 mV.
