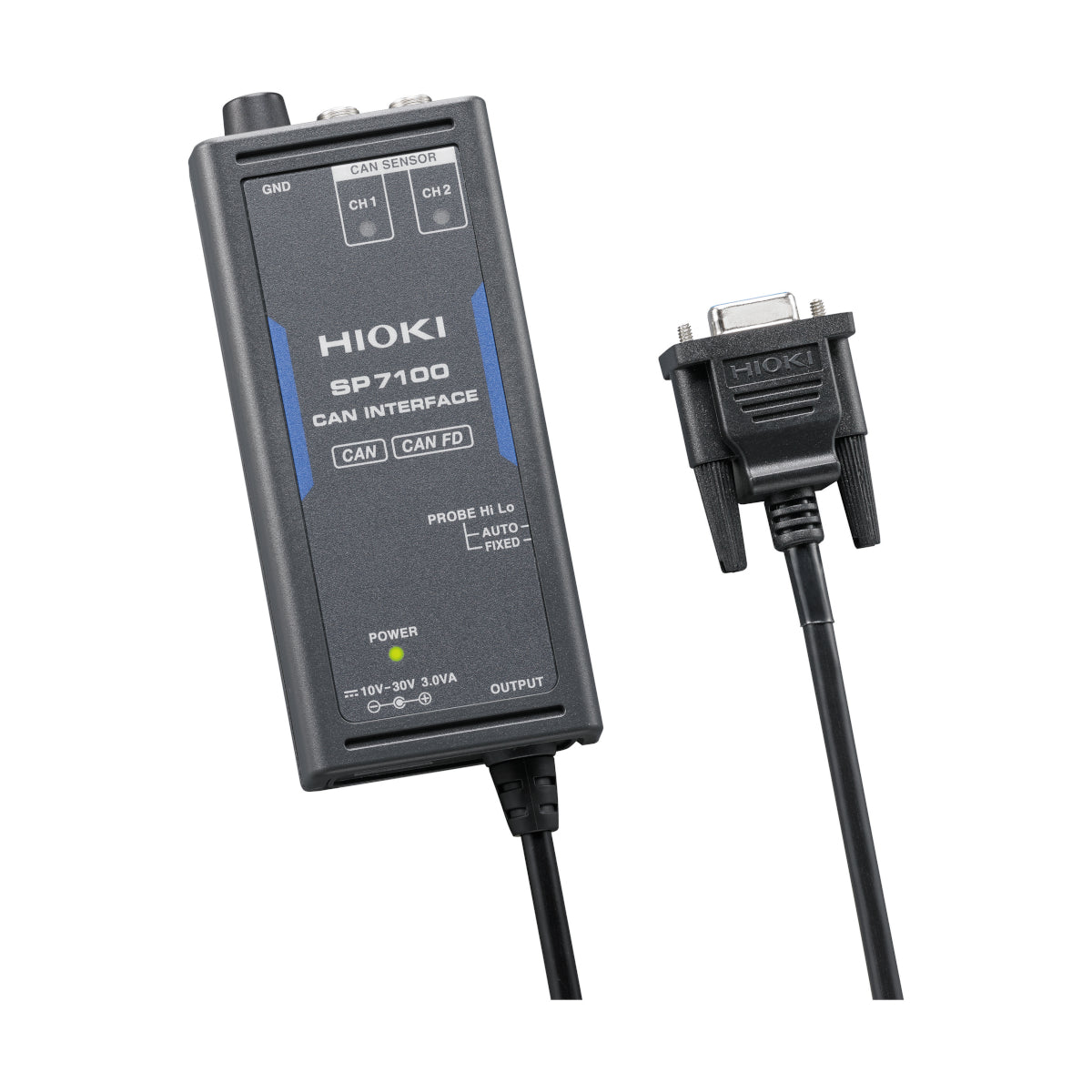

Hioki SP7100 CAN Interface
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Supported Sensors: SP7001-90, SP7002-90
- Number of CAN Channels: 2
- Output Connector: D-sub 9-pin female
- Power Supply: 10 V to 30 V DC or Z1008 AC Adapter
- Operating Temperature Range: -40°C to 85°C
- Maximum Rated Voltage: 300 V AC/DC (terminal-to-ground)
- Dimensions: 55 mm (W) × 120 mm (H) × 25 mm (D)
- Weight: Approx. 130 g
Discover the possibilities
More information
Description
The SP7100 CAN Interface enables seamless integration with Hioki's non-contact CAN sensors, such as the SP7001-90 and SP7002-90, for reliable data acquisition. It supports dual-channel CAN signal outputs and ensures accurate signal transmission to CAN analysis systems. Designed to maintain the integrity of CAN bus data, the SP7100 is ideal for automotive diagnostics, vehicle testing, and real-time monitoring. Its rugged design and versatile power options make it suitable for use in both laboratory and field conditions.
Specifications
Documents
Options
Video
The SP7100 CAN Interface enables seamless integration with Hioki's non-contact CAN sensors, such as the SP7001-90 and SP7002-90, for reliable data acquisition. It supports dual-channel CAN signal outputs and ensures accurate signal transmission to CAN analysis systems. Designed to maintain the integrity of CAN bus data, the SP7100 is ideal for automotive diagnostics, vehicle testing, and real-time monitoring. Its rugged design and versatile power options make it suitable for use in both laboratory and field conditions.
