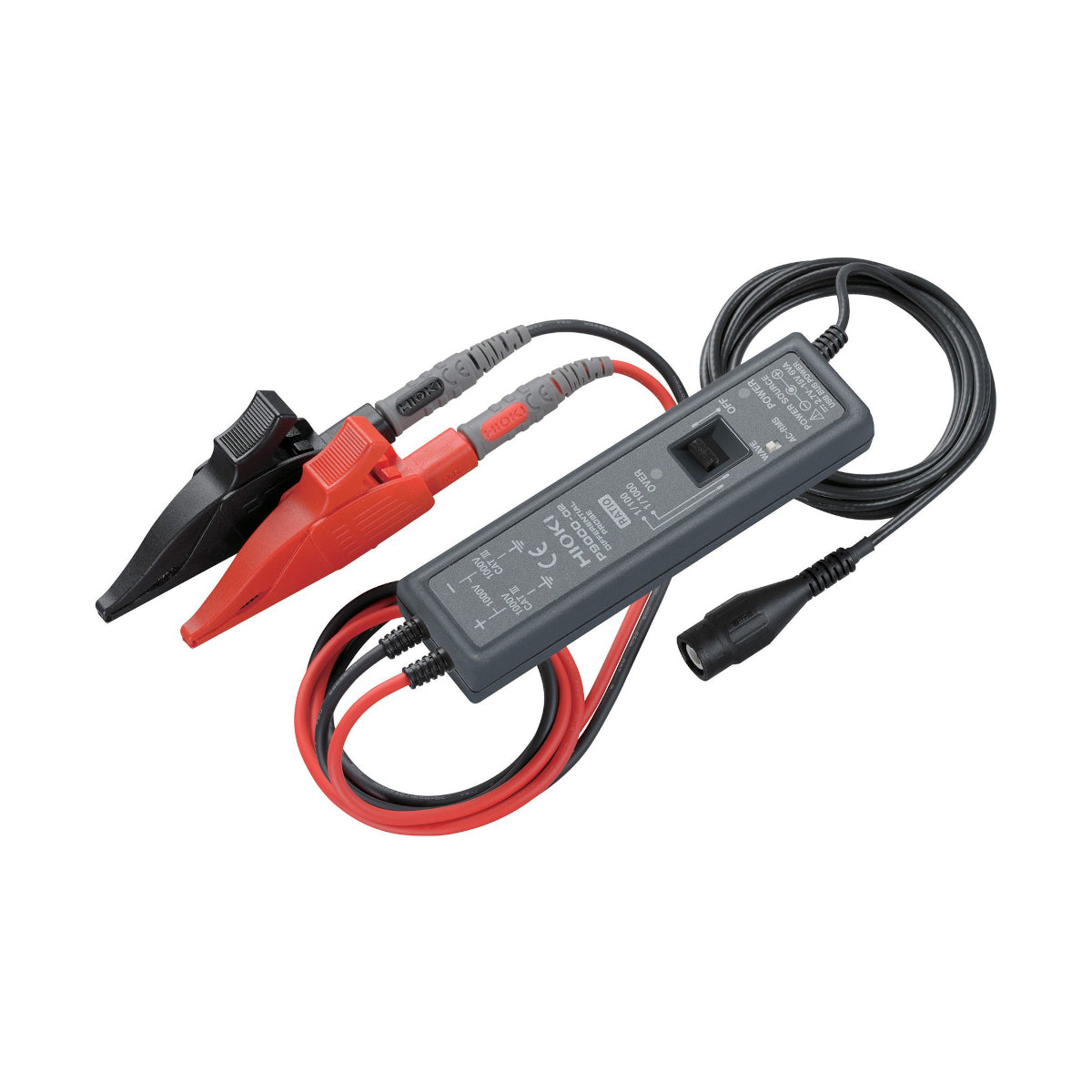

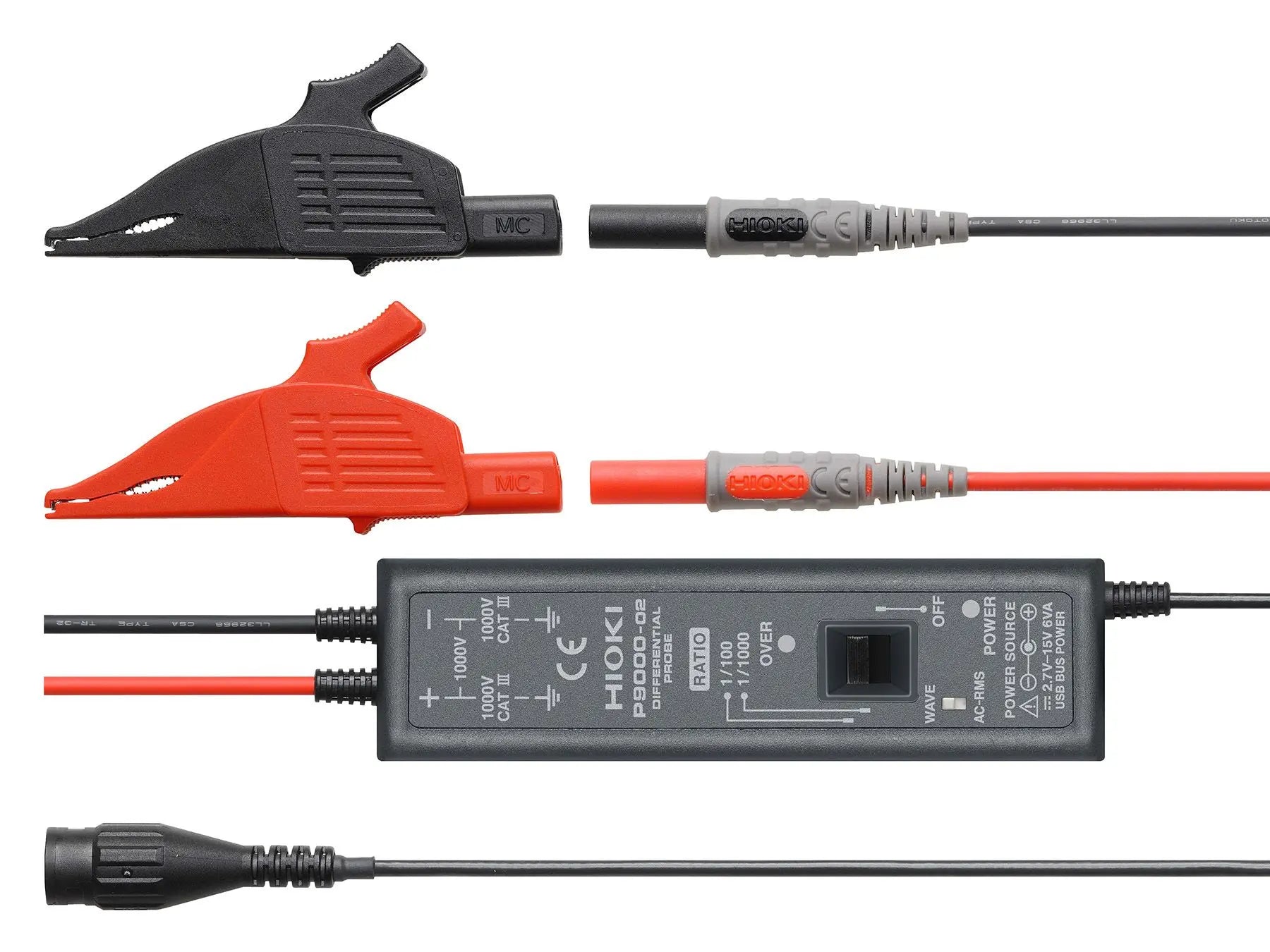

Hioki P9000-02 Differential Probe
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Measurement Functions: Waveform monitor output and AC RMS value output (switchable)
- Frequency Characteristics (Wave Mode): DC to 100 kHz, -3 dB
- Frequency Characteristics (RMS Mode): 30 Hz to 10 kHz
- RMS Amplitude Accuracy: ±1% f.s. (30 Hz to 1 kHz); ±3% f.s. (1 kHz to 10 kHz)
- Response Time (RMS Mode): 300 ms (rising), 500 ms (falling)
- Division Ratio: 1000:1 or 100:1 (user selectable)
- DC Amplitude Accuracy: ±0.5% f.s.
- Input Resistance and Capacity: 10.5 MΩ, 5 pF or less (at 100 kHz)
- Maximum Allowable Input: 1000 V AC/DC
- Max. Rated Voltage to Earth: 1000 V AC/DC (CAT III)
- Operating Temperature Range: -40°C to 80°C
- Power Supply Options: o AC Adapter (Z1008), USB, External DC (2.7V to 15V DC)
- Dimensions: 128 mm (W) × 36 mm (H) × 22 mm (D)
- Mass: 170 g
- Cord Length: Input 70 cm; Output 1.5 m
%0AFrequency%20Characteristics%20(Wave%20Mode):%20DC%20to%20100%20kHz,%20-3%20dB%0AFrequency%20Characteristics%20(RMS%20Mode):%2030%20Hz%20to%2010%20kH...
){kind=link}
Discover the possibilities
More information
Description
The Differential Probe P9000-02 combines waveform monitoring with AC RMS value output, offering increased versatility for high-voltage applications. With the capability to monitor waveforms and RMS values, it is suitable for industrial applications such as electric vehicle battery circuits, solar power systems, and commercial high-voltage circuits. The probe is lightweight, compact, and offers high accuracy across a wide range of operating temperatures, ensuring durability and performance in demanding conditions.
Specifications
Documents
Options
Video
The Differential Probe P9000-02 combines waveform monitoring with AC RMS value output, offering increased versatility for high-voltage applications. With the capability to monitor waveforms and RMS values, it is suitable for industrial applications such as electric vehicle battery circuits, solar power systems, and commercial high-voltage circuits. The probe is lightweight, compact, and offers high accuracy across a wide range of operating temperatures, ensuring durability and performance in demanding conditions.
