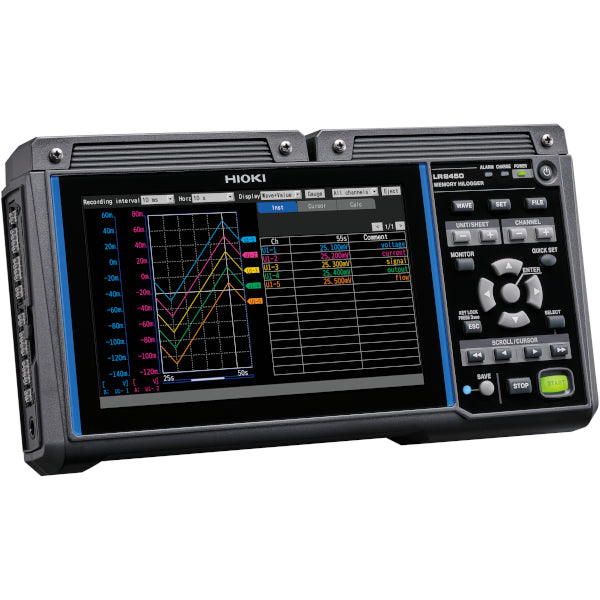

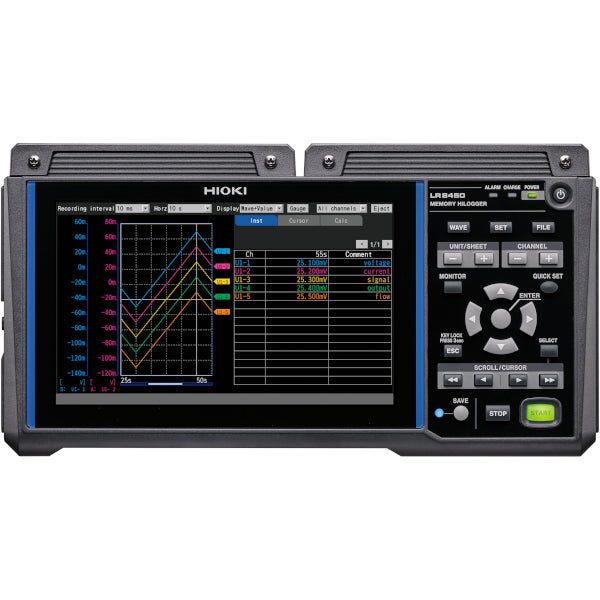

Hioki LR8450 Memory HiLogger
Use our chat for technical support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk

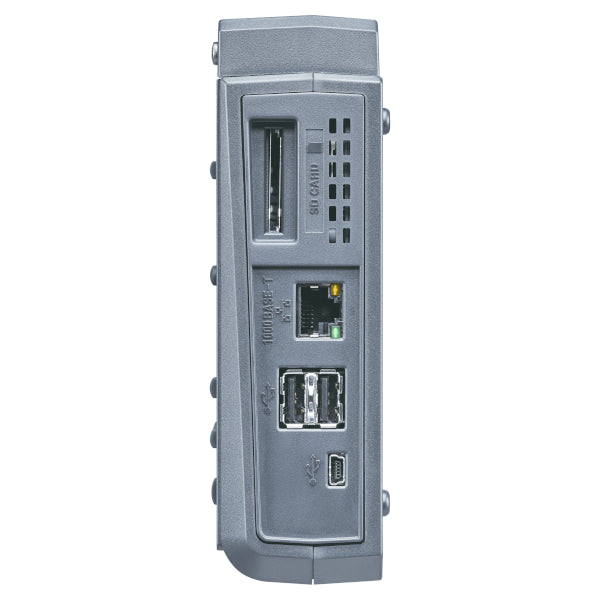

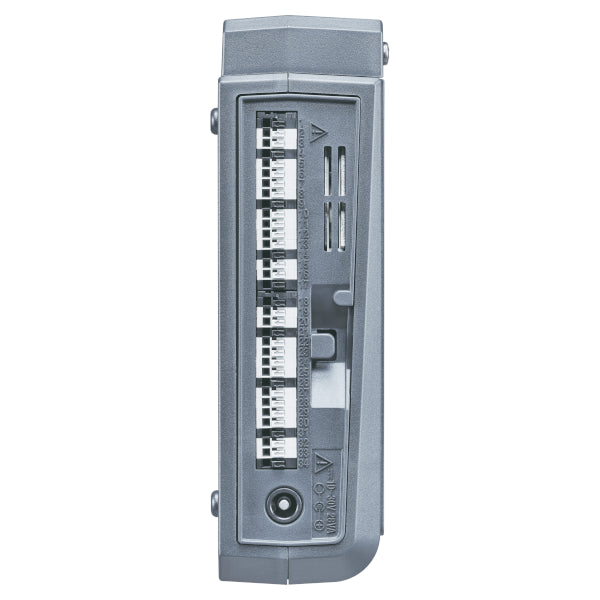

Multi-channel data logger, connect up to 4 plug-in modules with up to 120 analog channels, max. 1 ms update interval, max. 100 VDC, 8 inputs for pulse/logic/rotational speed, 7“ TFT-Display, GigabitLAN und USB / SD card, optional battery operation.
PLEASE NOTE! Modules, Battery Packs and SD Card are not included and must be ordered seperately.
Discover the possibilities
More information
Description
Hioki LR8450 Memory HiLogger
Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The Hioki LR8450 offers 1 ms sampling across up to 120 channels, and can be paired with 5 different types of plug-in input units. New input modules measure strain and distortion, ideal for automotive applications involving the evaluation of vehicle components as well as robotic equipment.
Key Features
- Expandable to 120 ch with wired/plug-in units
- Record voltage output from pressure and other sensors with 1ms sampling speed
- Directly connect strain gauge and measure signals in as fast as 1ms intervals
- Significantly reduced effects from noise let you safely measure in high voltage and high frequency areas such as around inverter motors

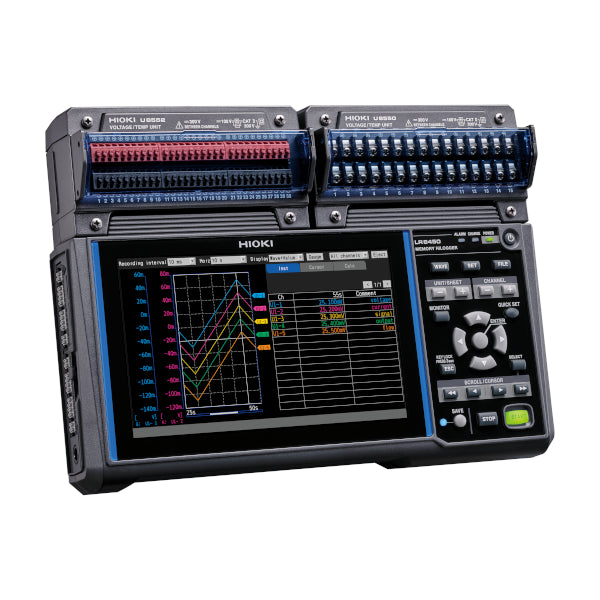

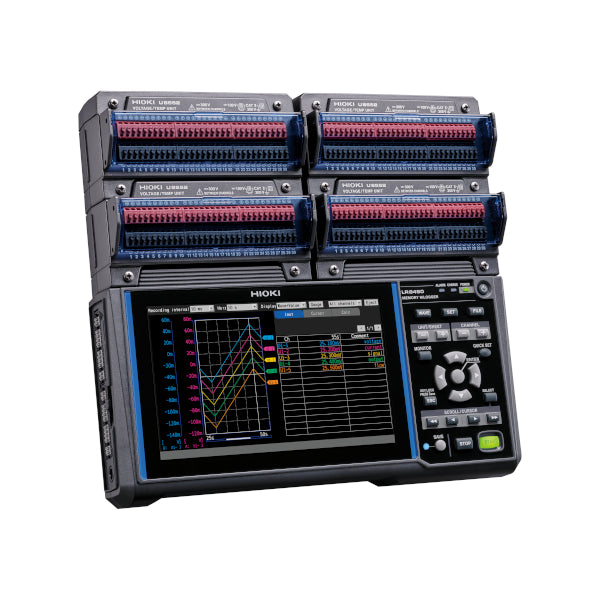

Gain up to 120 channels of input simply by adding a total of four plug-in units
Analog 600 CH Synchronous Sampling Measurement [Since V2.10]
Synchronized sampling up to 5 plug-in modules (600 analog channels) can be measured when multiple LR8450's external sync terminals (SYNC.IN, SYNC.OUT) are connected.
Note: This function cannot be used when wireless modules are connected.
Sample output from a variety of sensors, including 1 ms pressure sensors
Use model High Speed Voltage Unit U8553
Measures at a sampling rate of up to 1 ms.
1 ms sampling rate is the best match to measure sensor outputs with a frequency response of under 100 Hz, for example pressure and vibration sensors.
Measure strain with a 1 ms sampling rate
Example: strain measurement
Use model Strain Unit U8554
Connect strain gauges directly and measure at a sampling rate of up to 1 ms.
Strain gauges tend to have long, thin wires that are easily broken, but that potential pitfall can be avoided by using wireless units so that wire length is minimized.

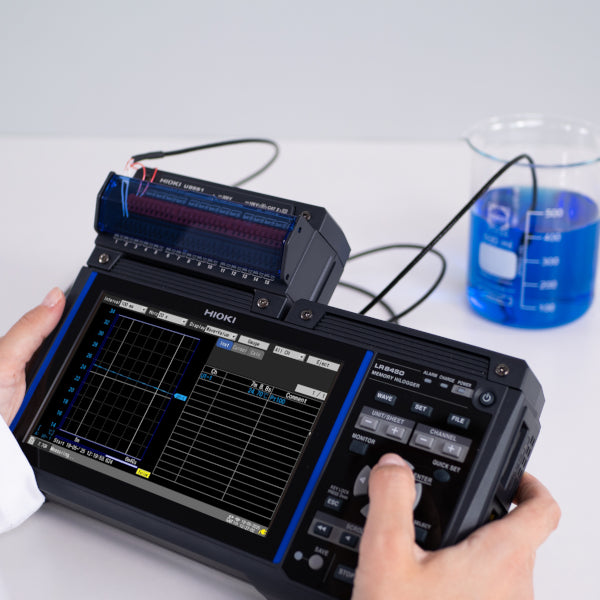

Measure temperature near an inverter or battery
Example: temperature measurement
Use models:
Voltage/Temp Unit U8550
Universal Unit U8551
Measures at a sampling rate of up to 10 ms.
For more information: Hioki
Specifications
Documents
Options
Video
Hioki LR8450 Multichannel Data Logger
The LR8450 is a high-speed data logger used for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. Get familiar with the instrument with this short introduction.
Hioki LR8450 Data Logger - Minimizing Noise Resistance
The HIOKI Data Logger LR8450 is engineered to minimize noise interference, ensuring stable measurements even at elevated frequencies. This enhancement is particularly beneficial in environments with significant electrical noise, e.g. near inverters, as it improves the accuracy and reliability of the data acquired. Consequently, the LR8450 reduces the effects of noise to deliver stable logging, even at high voltages and frequencies. The revamped design of the LR8450 Data Logger realizes to dramatically reduce the effects of high-frequency noise, and is ideal for temperature logging of inverters and batteries.
Hioki LR8450 Data Logger - Strain Measurements
The LR8450 is a data logger that can measure stress via directly connected strain gages. It is capable of recording at frequencies on the order of dozens of hertz thanks to sampling at up to 1 ms. This makes the LR8450 ideal for measuring stress and load on moving parts and strain on components such as brakes and pipes. And because it can accommodate a mix of various measurement units, the LR8450 can simultaneously measure strain, temperature, and voltage as necessary.
Thermal runaway evaluation of lithium-ion batteries with Hioki LR8450
Discover how the HIOKI LR8450-01 enhances lithium-ion battery safety by precisely monitoring voltage and temperature in thermal propagation testing. This video is essential for professionals seeking a versatile instrument to optimize battery performance and safety.
How to optimize energy efficiency with precise current mapping
Do you know how to optimize energy efficiency with precise current mapping?
In this webinar we're discussing what current mapping is, how it can support developers get an in-depth understanding of the current consumption of their products in various operating states, and how this information can help optimize the energy efficiency of products.
We are talking about the challenges that data acquisition systems encounter for precise current mapping and presenting a holistic approach to overcome these with HIOKI’s new current logging solution.
Types of sensors for temperature logging with Hioki LR8450
For accurate temperature logging, you need two key components: a precise and reliable data logger, and a temperature sensor tailored to your specific application. Temperature measurement is crucial in various fields, such as monitoring ambient conditions, and measuring temperatures in furnaces, electrical components, and engine compartments.
Measure CAN data and analog data with Hioki LR8450 and LR8450-01
This video shows how the MEMORY HiLOGGER LR8450-01 and CAN UNIT are used to measure the temperature of an actual vehicle. The analog data measuring the temperature inside the vehicle and the CAN data are simultaneously displayed on the waveform in real time. You can also see how the measured analog data is output as CAN signals in real time.
