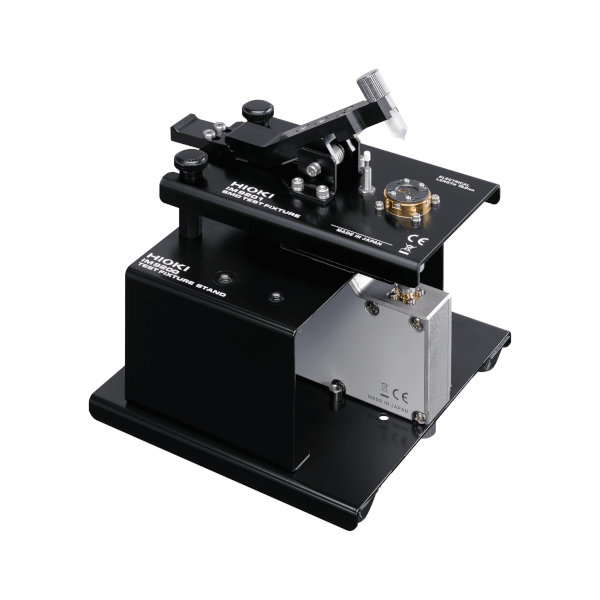

Hioki IM9202 Test Fixture
Hioki LCR Meters and Impedance Analyzers range from DC to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM9202 Test Fixture supports high frequency testing up to 600 MHz when paired with the IM7580 Impedance Analyzer series, and delivers a unique staging mechanism that lets you validate components and devices in various shapes and sizes, including RFID and NFC chips.
Key Features
• Test fixture for IMPEDANCE ANALYZER IM7580 Series
• High frequency testing up to 600 MHz
• Test the impedance of devices in a diverse range of shapes and sizes, including leaded/though-hole devices, SMD, and RFID and NFC chips
• Aids in properly identifying self-resonance frequency (SRF) and equivalent series resistance (ESR) to validate component performance
| Frequency range | DC to 600 MHz |
|---|---|
| Measurable DUT | LEADEDAxial• Distance between leads (component length): 1 mm to 25 mm (0.04 in. to 0.98 in.)• Lead length: 2 mm to 10 mm (0.08 in. to 0.39 in.)• Height to lead: 2.5 mm or shorter (0.10 in. or shorter)Radial• Distance between leads: 2 mm to 26 mm (0.08 in. to 1.02 in.)• Lead length: 2 mm or longer (0.08 in. or longer)SMD• Component length: 1.6 mm to 23 mm (0.06 in. to 0.91 in.)• Component width: 0.8 mm or longer (0.03 in. or longer)• Component height: 0.65 mm or longer (0.03 in. or longer) |
| Electrode structure | 2-terminal connection to side electrodes |
| Maximum voltage | ±42 Vpeak (AC+DC) |
| Supported units | IM7580, IM7580A, IM7581, IM7583, IM7585, IM7587 |
| Accessories | H-side lead component clip ×1, L-side lead component electrode ×1, L-side SMD electrode ×1, SMD open correction jig ×1, Short plate ×1, Brush for cleaning ×1, Carrying case ×1, Instruction manual ×1 |
