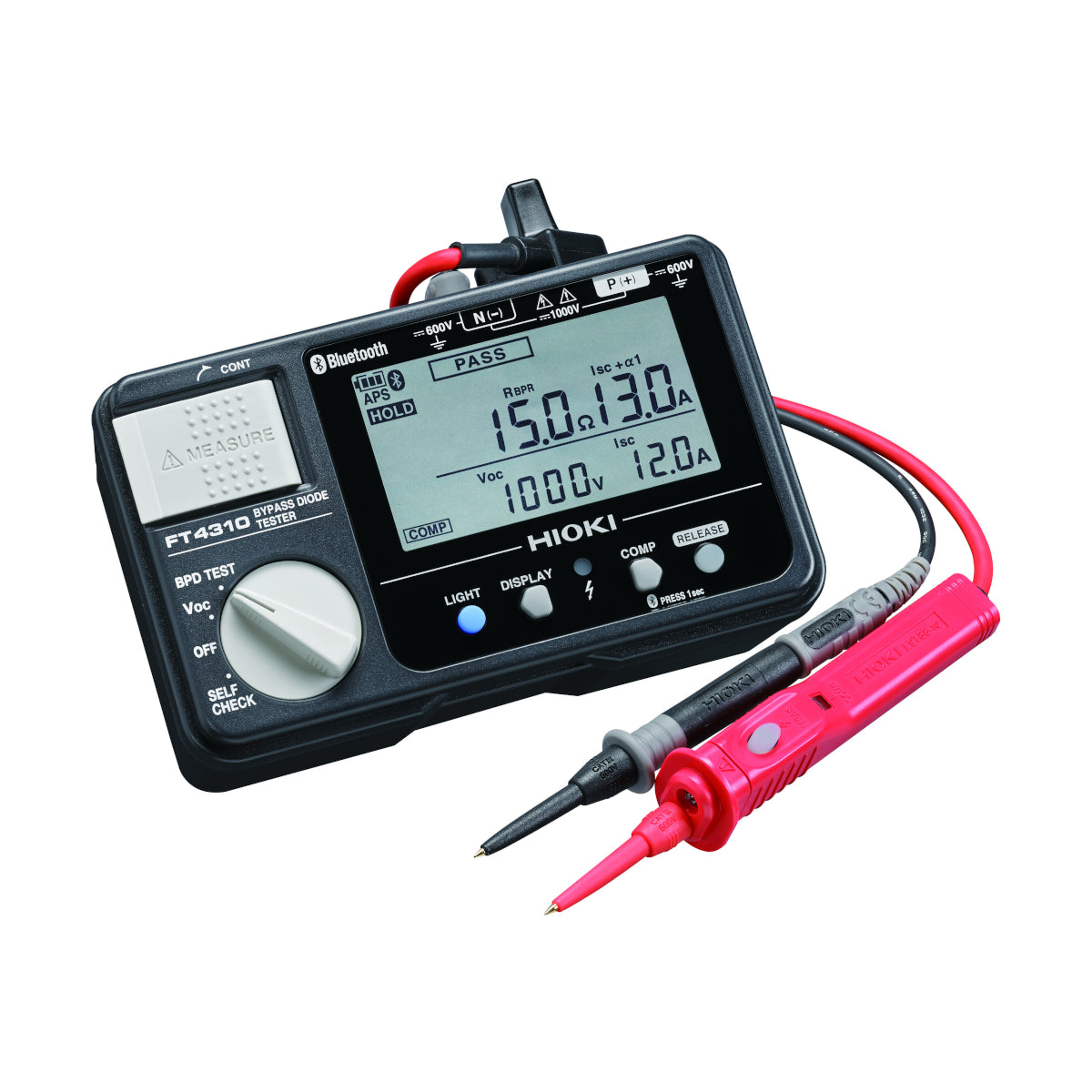

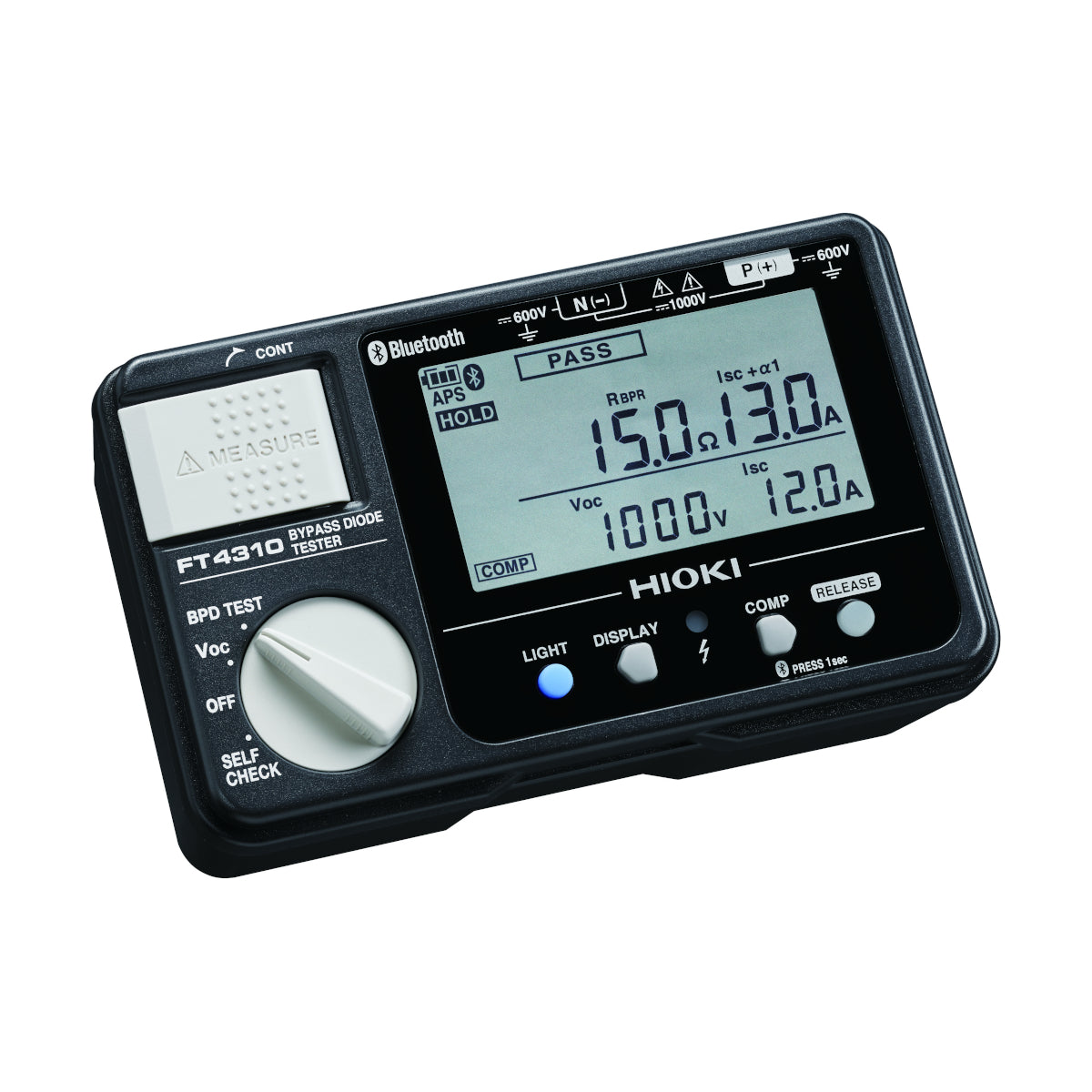

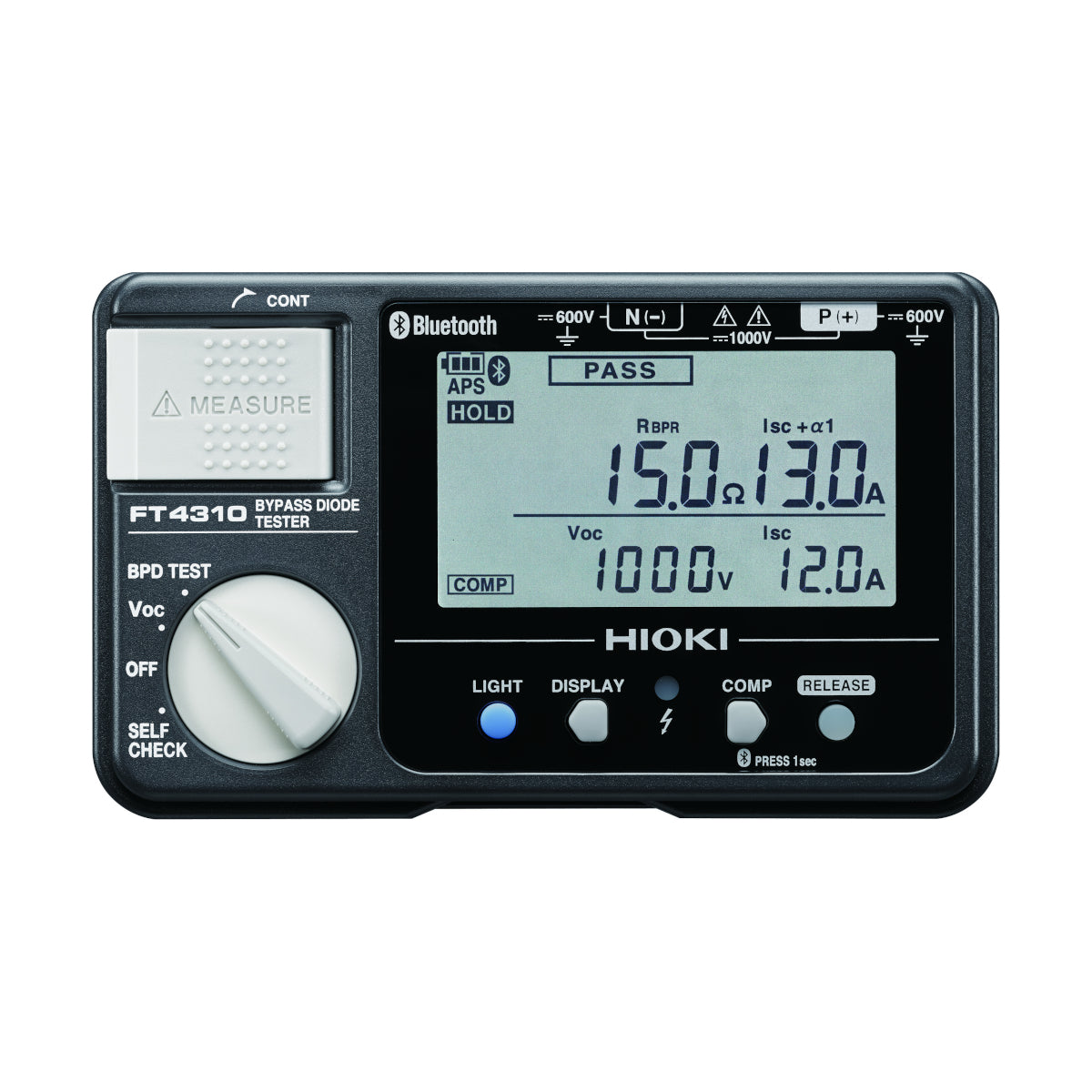

Hioki FT4310 Bypass Diode Tester
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Measurement items: Open-circuit voltage, Short-circuit current, Bypass route resistance
- Measurement range: Open-circuit voltage: 0 to 1000 V DC; Short-circuit current: 0 to 15 A; Bypass route resistance: 0 to 15 Ω
- Bluetooth® wireless technology: Supported
- Operating temperature: −10°C to 65°C
- Power supply: 6 AA alkaline batteries
- Continuous operating time: Approx. 45 hours (Bluetooth® OFF)
- Safety category: CAT III 600 V
Discover the possibilities
More information
Description
The Hioki FT4310 Bypass Diode Tester is designed for efficient testing of bypass diodes in solar panels without the need to cover them, even in broad daylight. The FT4310 can quickly identify open and short-circuit faults in bypass diodes, helping to prevent potential fires and improve overall solar panel efficiency.
With Bluetooth® wireless technology, measured data is automatically transferred to a smartphone or tablet for easy analysis using the GENNECT Cross app. The compact design allows for quick and accurate testing, improving maintenance efficiency. It is equipped with an easy-to-read display and is built to withstand tough working environments.
