Hioki CT9557 Sensor Unit
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Sensor Unit
- Power Supply for Current sensors: 4ch
- With waveform / total waveform / total RMS output
- For the CT6841-05, etc.
- ME15W connector
Discover the possibilities
More information
Description

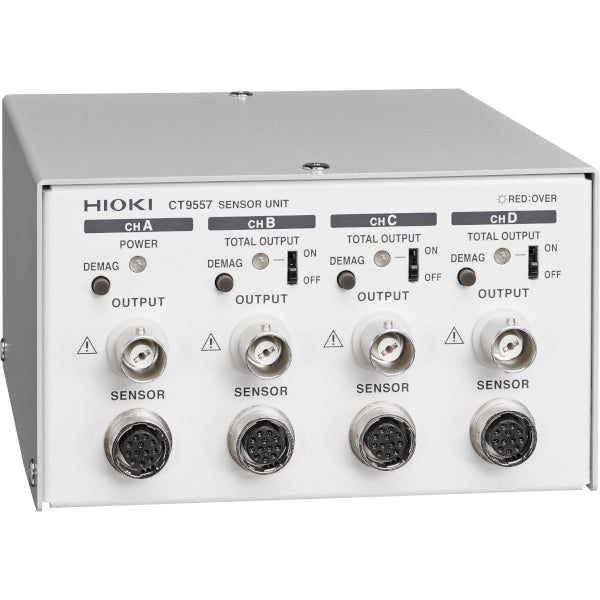

Hioki CT9557 Sensor Unit
Hioki pass-through current sensors and clamp on current probes are best-in-class current sensing devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The Hioki CT9557 is 4-channel sensor unit and power adapter for any of the CT686x series, 9709 and CT684x series current sensors and probes that provides waveform and RMS output.
Key Features
- Power supply for high-precision current sensors with waveform output functionality
- Output a single waveform from an aggregate of input waveforms
Basic specifications
Accuracy guaranteed: 1 year
| Connectable current sensors | Current sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.) *The separately available Conversion Cable CT9900 is required in order to use a current sensor equipped with a PL23 (10-pin) terminal |
|---|---|
| Output Terminal | BNC Terminal |
| Output voltage | Waveform output/ Total waveform output: 2 V f.s. Total RMS output: 2 V DC f.s. |
| Output resistance | 50 Ω |
| Operating temperature range | -10 °C to 50 °C (14 °F to 122 °F) |
| Power supply | AC Adapter Z1002 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 155 VA) External power supply (10 to 30 V DC; maximum rated power: 60 VA) |
| Dimensions and mass | 116 mm (4.57 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts),420 g (14.8 oz) |
| Included accessories | AC Adapter Z1002 ×1, Power cord ×1, Instruction manual ×1 |
Measure large currents and multi-cable circuits with aggregate functionality
Once a current sensor has been attached to each branch cable, the CT9557 adds the sensor signals together to create a total signal. Since the sensor unit can treat multiple sensors as a single sensor, the current can be measured using a single power meter.
For more information: Hioki
Documents
Hioki CT9557 Sensor Unit
Hioki CT9557 DatasheetOptions
Video
Hioki CT9557 Sensor Unit
Hioki pass-through current sensors and clamp on current probes are best-in-class current sensing devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The Hioki CT9557 is 4-channel sensor unit and power adapter for any of the CT686x series, 9709 and CT684x series current sensors and probes that provides waveform and RMS output.
Key Features
- Power supply for high-precision current sensors with waveform output functionality
- Output a single waveform from an aggregate of input waveforms
Basic specifications
Accuracy guaranteed: 1 year
| Connectable current sensors | Current sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.) *The separately available Conversion Cable CT9900 is required in order to use a current sensor equipped with a PL23 (10-pin) terminal |
|---|---|
| Output Terminal | BNC Terminal |
| Output voltage | Waveform output/ Total waveform output: 2 V f.s. Total RMS output: 2 V DC f.s. |
| Output resistance | 50 Ω |
| Operating temperature range | -10 °C to 50 °C (14 °F to 122 °F) |
| Power supply | AC Adapter Z1002 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 155 VA) External power supply (10 to 30 V DC; maximum rated power: 60 VA) |
| Dimensions and mass | 116 mm (4.57 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts),420 g (14.8 oz) |
| Included accessories | AC Adapter Z1002 ×1, Power cord ×1, Instruction manual ×1 |
Measure large currents and multi-cable circuits with aggregate functionality
Once a current sensor has been attached to each branch cable, the CT9557 adds the sensor signals together to create a total signal. Since the sensor unit can treat multiple sensors as a single sensor, the current can be measured using a single power meter.
For more information: Hioki
