Hioki CT7631 AC/DC Current Sensor
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- AC/DC Current Sensor
- DC to 10kHz (-3dB)
- 100A AC/DC
- +/-1.8% deg. phase accuracy
- 33 mm core diameter
- 2.5m cord length
- PL14 terminal
%0A%20%09100A%20AC/DC%0A%20%09+/-1.8%25%20deg.%20phase%20accuracy%0A%20%0933%20mm%20core%20diameter%0A%20%092.5m%20cord%20length%0A%20%09PL14%20terminal%0A
){kind=link}
Discover the possibilities
More information
Description

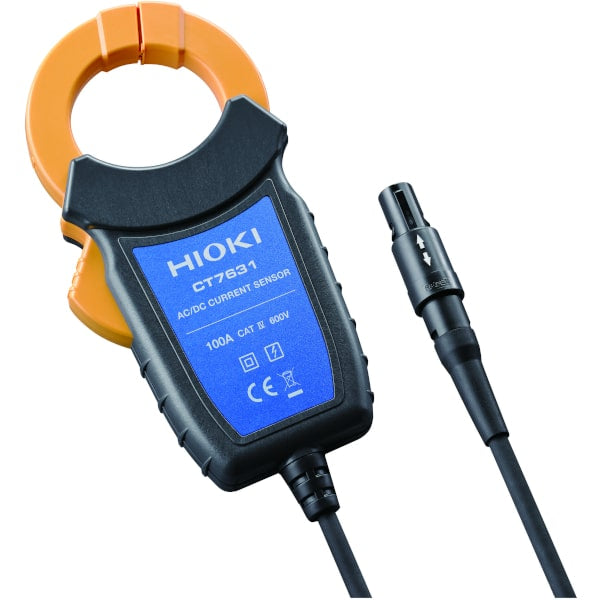

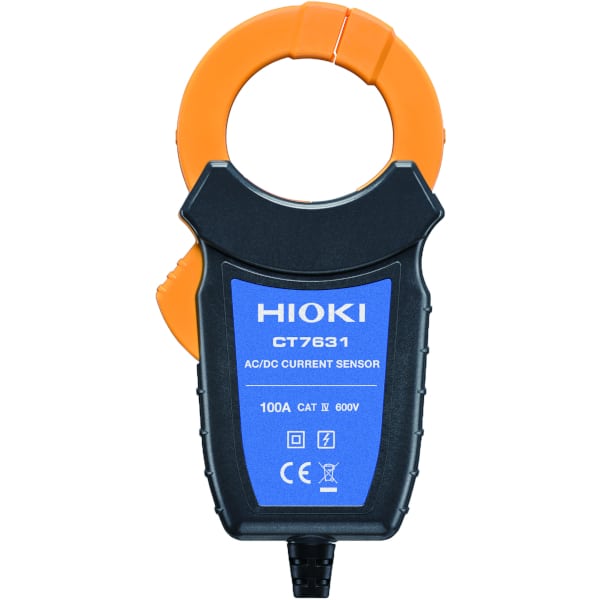

Hioki CT7631 AC/DC Current Sensor
Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CT7631 is a 100 A AC/DC Current Sensor that pairs with the detachable Display Unit CM7290 or CM7291 to capture instantaneous waveforms that can be output to a Hioki memory recorder or logger for further analysis. Mix and match with other sensors in the series for a cost-effective solution covering a broad measurement range.
CAT IV 600 V
Key Features
- Ideal for observing instantaneous waveforms in laboratories and other temperature-controlled environments
- Ideal for site inspections by using detachable Display Unit
- Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz
Basic specifications
Accuracy guaranteed: 3 years
| Rated measurement current | 100 A AC/DC | |||||
|---|---|---|---|---|---|---|
| Max. measurement current | 100 A (requires derating at frequency)) | |||||
| Max. allowable peak input | 150 A peak | |||||
| Bandwidth | DC to 10 kHz (-3dB) (When used in combination with CM7290 or CM7291: DC 3 Hz to 1 kHz) | |||||
| Typical phase accuracy | ±1.8 deg (DC < f ≤ 66 Hz) | |||||
| Output rate | 1 mV/A | |||||
| Max. rated voltage to earth | AC/DC 600 V (CAT IV) | |||||
| Core diameter | φ 33 mm (1.30 in) or less | |||||
| Output connectors | HIOKI PL 14 | |||||
| Operating temperature range | -25°C to 65°C (-13°F to 149°F) | |||||
| Dimensions and mass | 58 mm (2.28 in)W × 132 mm (5.20 in)H × 18mm (0.71 in)D, 250 g (8.8 oz), Cable length 2.5 m (8.20 ft) | |||||
| Included accessories | None | |||||
Connect to Recorders, Data loggers, and Oscilloscopes
Must be paired with the Display Unit CM7290 or CM7291 to operate as a standalone unit. Add an output cord to deliver signals to a data logger or Memory HiCorder for the following types of output:
- A DC or AC (up to 5 kHz/10 kHz) current waveform as-is (using WAVE mode for waveform output)
- An analog signal generated by converting the input waveform to a series of RMS values (using RMS mode for RMS output)
- An analog signal generated by detecting the current waveform’s peak value (using PEAK mode for peak output
- An analog waveform generated by detecting the frequency of the current waveform (using FREQ mode for frequency output)
Broad temperature range
A wide operating temperature range of -25°C to 65°C (-13°F to 149°F)lets you use the sensor even in sub-freezing temperatures and on hot summer days.
Transfer data wirelessly using Bluetooth(R) to GENNECT Cross mobile app
Pair with the CM7291 Display Unit to send measurement data to a smartphone or tablet using Bluetooth® wireless technology. Use the GENNECT Cross dedicated app to display and review measured values and waveforms in real time.
For more information: Hioki
Documents
Hioki CT7631 Current Sensor
Hioki CT7631 DatasheetOptions
Video
Hioki CT7631 AC/DC Current Sensor
Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CT7631 is a 100 A AC/DC Current Sensor that pairs with the detachable Display Unit CM7290 or CM7291 to capture instantaneous waveforms that can be output to a Hioki memory recorder or logger for further analysis. Mix and match with other sensors in the series for a cost-effective solution covering a broad measurement range.
CAT IV 600 V
Key Features
- Ideal for observing instantaneous waveforms in laboratories and other temperature-controlled environments
- Ideal for site inspections by using detachable Display Unit
- Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz
Basic specifications
Accuracy guaranteed: 3 years
| Rated measurement current | 100 A AC/DC | |||||
|---|---|---|---|---|---|---|
| Max. measurement current | 100 A (requires derating at frequency)) | |||||
| Max. allowable peak input | 150 A peak | |||||
| Bandwidth | DC to 10 kHz (-3dB) (When used in combination with CM7290 or CM7291: DC 3 Hz to 1 kHz) | |||||
| Typical phase accuracy | ±1.8 deg (DC < f ≤ 66 Hz) | |||||
| Output rate | 1 mV/A | |||||
| Max. rated voltage to earth | AC/DC 600 V (CAT IV) | |||||
| Core diameter | φ 33 mm (1.30 in) or less | |||||
| Output connectors | HIOKI PL 14 | |||||
| Operating temperature range | -25°C to 65°C (-13°F to 149°F) | |||||
| Dimensions and mass | 58 mm (2.28 in)W × 132 mm (5.20 in)H × 18mm (0.71 in)D, 250 g (8.8 oz), Cable length 2.5 m (8.20 ft) | |||||
| Included accessories | None | |||||
Connect to Recorders, Data loggers, and Oscilloscopes
Must be paired with the Display Unit CM7290 or CM7291 to operate as a standalone unit. Add an output cord to deliver signals to a data logger or Memory HiCorder for the following types of output:
- A DC or AC (up to 5 kHz/10 kHz) current waveform as-is (using WAVE mode for waveform output)
- An analog signal generated by converting the input waveform to a series of RMS values (using RMS mode for RMS output)
- An analog signal generated by detecting the current waveform’s peak value (using PEAK mode for peak output
- An analog waveform generated by detecting the frequency of the current waveform (using FREQ mode for frequency output)
Broad temperature range
A wide operating temperature range of -25°C to 65°C (-13°F to 149°F)lets you use the sensor even in sub-freezing temperatures and on hot summer days.
Transfer data wirelessly using Bluetooth(R) to GENNECT Cross mobile app
Pair with the CM7291 Display Unit to send measurement data to a smartphone or tablet using Bluetooth® wireless technology. Use the GENNECT Cross dedicated app to display and review measured values and waveforms in real time.
For more information: Hioki
